Ajax Hood Outdoor Detector

Description

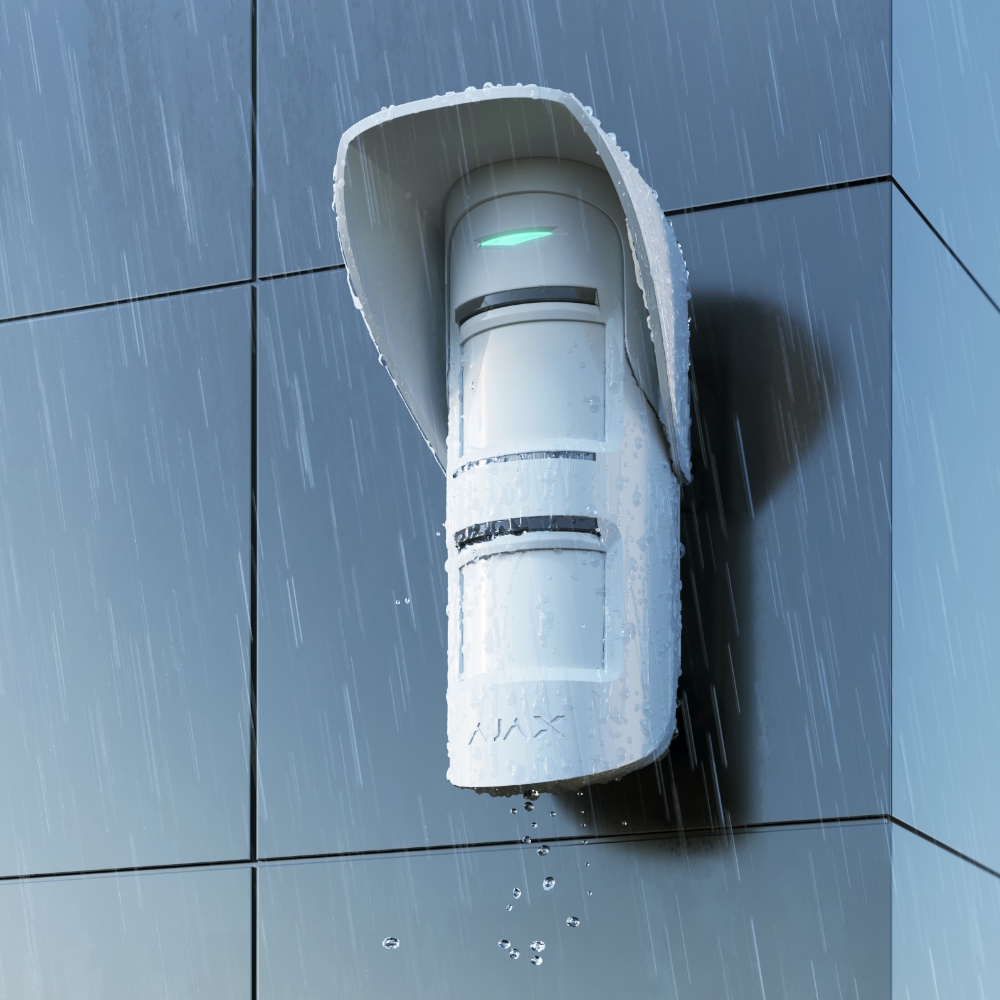

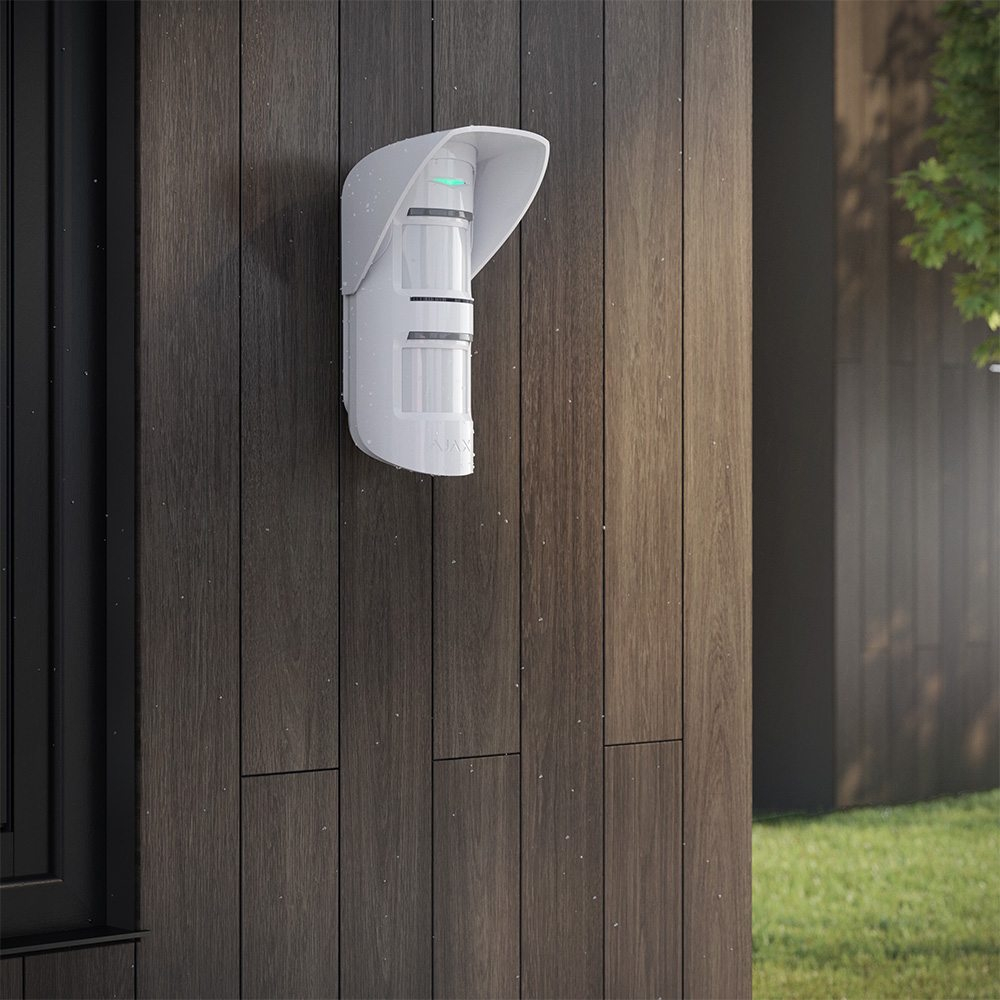

Wireless outdoor motion detector designed to protect outdoor areas around your home, garden, entrance or other areas by detecting movement with infrared sensors. It connects securely to your Ajax security system via the encrypted Jeweller protocol and can communicate with the hub up to approx. 1,700 m in open area. MotionProtect Outdoor features anti-masking, sabotage/tamper protection and immunity to small animals (up to approx. 80 cm tall when properly installed), which helps reduce false alarms even in harsh outdoor environments. The detector is weatherproof with an IP55 rating and can operate in temperatures from approx. –25 °C to +60 °C.

Specifications

• Type: Wireless outdoor motion detector
• Installation: Outdoor / indoor (outdoor use recommended)
• Color: White
• Communication protocol: Encrypted Jeweller radio
• Range to hub: up to ~1,700 m in open area
• Sensors: Dual PIR sensor (passive infrared)
• Detection distance: Adjustable 3–15 m
• Detection angle: approx. 90° horizontally
• Anti-masking: Yes – detects attempts to block the sensor from seeing
• Tamper protection: Yes – warns of manipulation or removal
• Animal immunity: Ignores animals up to approx. 80 cm tall when properly mounted
• Batteries: 2 × CR123A (3 V), pre-installed
• Battery life: up to approx. 5 years depending on use
• External power: Can be powered by 5–28 V DC (optional)
• Protection class: IP55 – dust/resistance and splash protected
• Operating temperature: approx. –25 °C to +60 °C
• Operating humidity: Up to approx. 100%
• Dimensions: approx. 183 × 70 × 65 mm
