Ajax Motion Detector Indoor White

Description

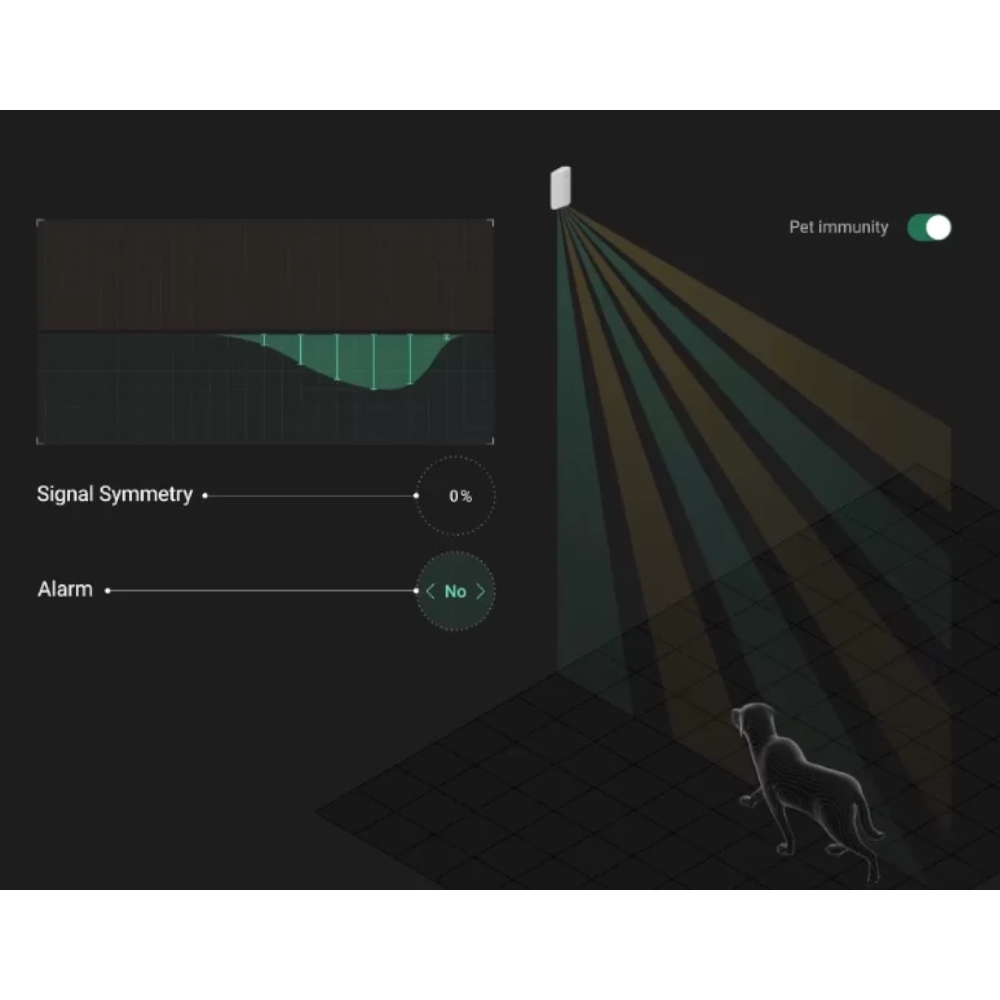

Wireless motion sensor with curtain/curtain character intended for indoor use. It is designed to protect specific lines such as windows, doors or other defined areas through a narrow detection field (curtain-like zone). This makes it ideal for detecting intrusions without covering the entire room, which reduces the risk of false alarms from movements further away. The sensor uses two PIR infrared sensors with an optical reflector for more accurate analysis and sends alarms wirelessly to your Ajax hub with encrypted Jeweller communication.

Specifications

• Type: Wireless curtain/curtain motion detector for indoor use
• Colour: White
• Communication protocol: Jeweller radio (encrypted)
• Radio system: 868-868.6 MHz, up to approx. 1,700 m range (open area)
• Detection type: Passive Infrared (PIR) with dual sensor and multifaceted optical system
• Detection distance: Up to 15 m (adjustable)
• Detection field: 6° horizontal × 90° vertical (curtain/curtain)
• Sensitivity levels: 3 adjustable levels
• Temperature function: Built-in temperature sensor
• Anti-masking/tampering protection: Yes
• Power supply: CR123A battery (3 V) - pre-installed
• Battery life: Up to approx. 3 years
• Operating temperature: approx. -10 °C to +40 °C
• Operating humidity: Up to 95%
• Protection class: IP54 (dust and splash proof)
• Dimensions: approx. 134 × 44 × 34 mm
• Mounting method: Wall mounting with SmartBracket or similar
