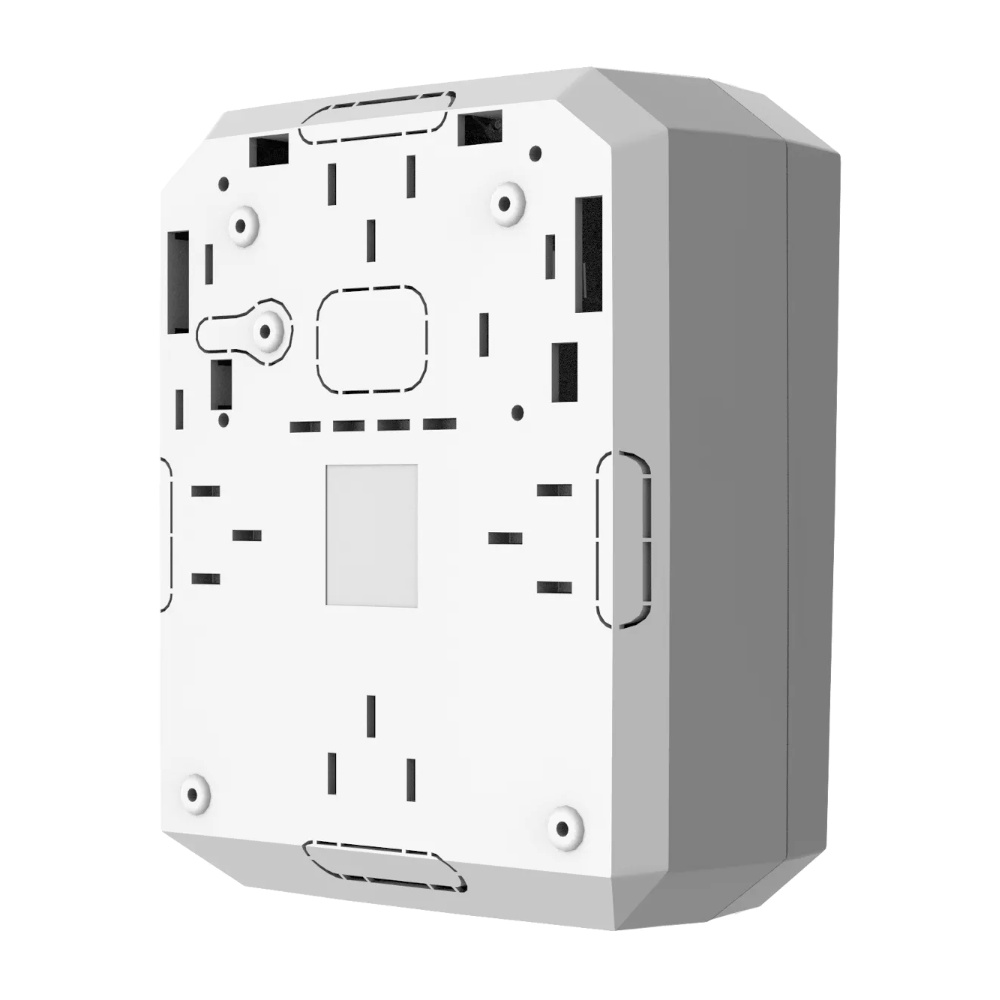

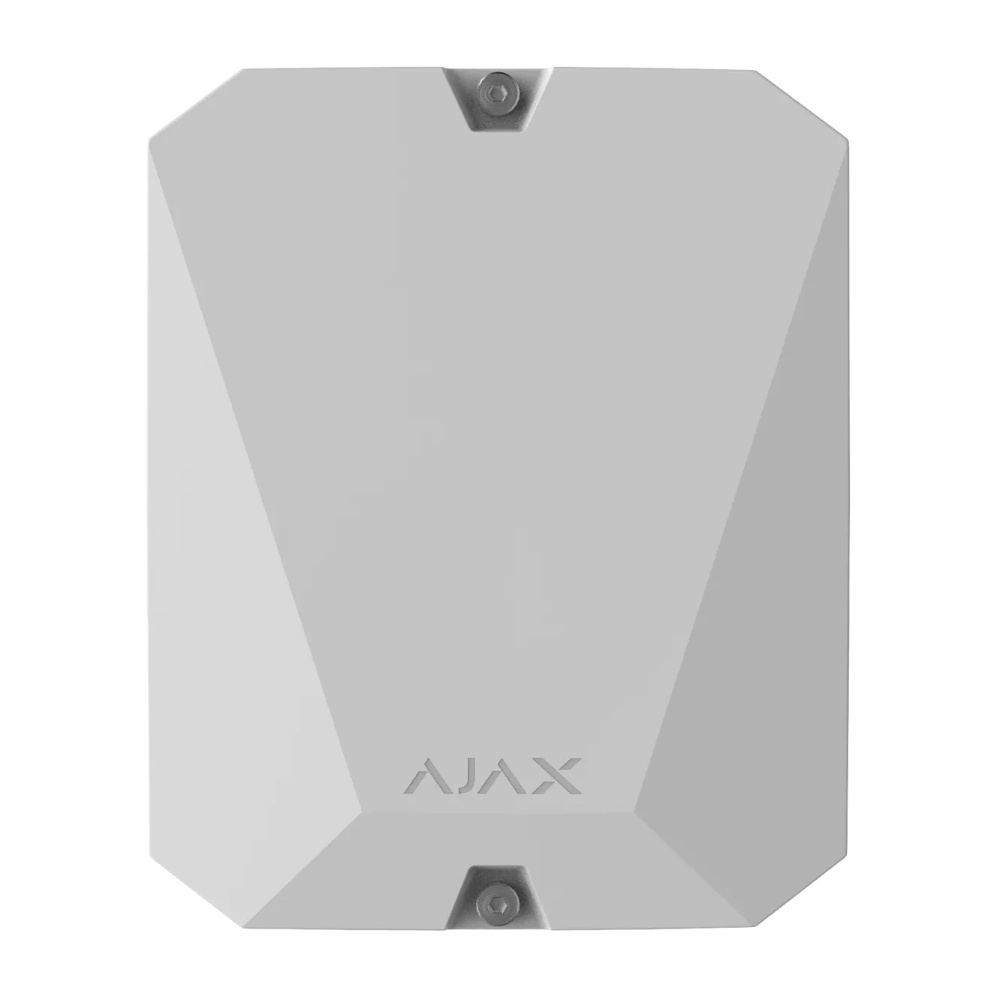

Ajax MultiTransmitter 3EOL White

Description

This wireless transmission module uses Jeweller technology at 868 MHz to connect wired alarms to a hub or repeater. It offers bidirectional communication with block encryption and dynamic key, tamper detection and instant alerts. The range can reach up to 2000 m in open space; it supports 18 wired zones, various EOL link configurations and signal loss protection. It is powered by 100-240 V power with backup batteries, has an environmental resistance of -10 to 40 °C and IP40 protection, making it suitable for upgrading existing systems.

Specifications

• Protection class: IP40
• Number of alarm/tamper zones: 18
• Supported detector contact types: NO, NC (without R), EOL (NC with R), EOL (NO with R)
• Alarm signal processing mode: pulsed or bistable
• Main power supply: 110–255 V, 50/60 Hz
• Backup power: 12 V DC
• Detector power supply: 12 V DC, up to 1 A for all detector power supply outputs
• Radio signal frequency band: 868.0–868.6 MHz or 868.7–869.2 MHz, depending on sales region
• Compatibility: works with all Ajax hubs and range extenders
• Maximum radio signal power: up to 7.29 mW (25 mW limit)
• Radio signal range: up to 2000 m in line of sight
• Operating temperature range: from -10 °C to +40 °C
• Operating humidity: up to 75%
• Color: White
• Dimensions: 192 × 238 × 100 mm
