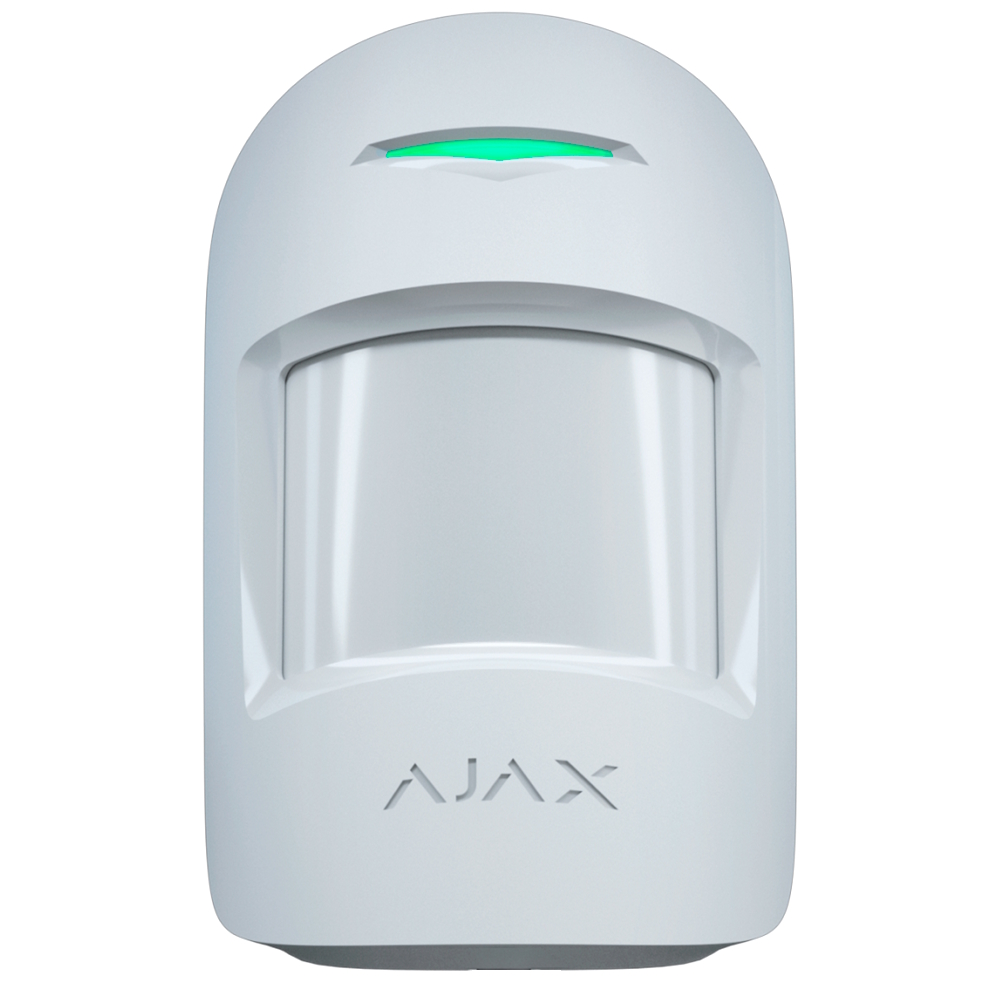

Ajax PIR/Microwave Motion Detector White

Description

Wireless, dual-technology motion sensor for Ajax security systems that uses both PIR infrared sensor and microwave sensor (24 GHz) to detect movement with high accuracy and reduce the risk of false alarms. It is designed for indoor use and works with Ajax hubs via encrypted Jeweller communication. The detector is pet-immune up to approximately 20 kg in weight and 50 cm in height when properly installed, which means that it does not react to pets in normal movement.

Specifications

• Type: Wireless dual-technology motion detector (PIR + microwave)
• Detection distance: Up to approx. 12 m
• Detection angle: approx. 88.5° horizontal / 80° vertical
• Reaction time: approx. 0.15 s
• Sensitivity levels: 3 adjustable levels (low/normal/high)
• Pet immunity: Up to ~20 kg weight and ~50 cm height
• Radio: Ajax Jeweller protocol (encrypted)
• Frequency: 868 – 868.6 MHz
• Range: Up to approx. 1,200 m in open area
• Compatible with Ajax hubs, repeaters, ocBridge Plus and uartBridge
• Battery: 1 × CR123A (3 V), pre-installed
• Battery life: Up to approx. 5 years
• Operating temperature: approx. –10 °C to +40 °C
• Operating humidity: Up to approx. 75%
• Color: White
• Dimensions: approx. 110 × 65 × 50 mm

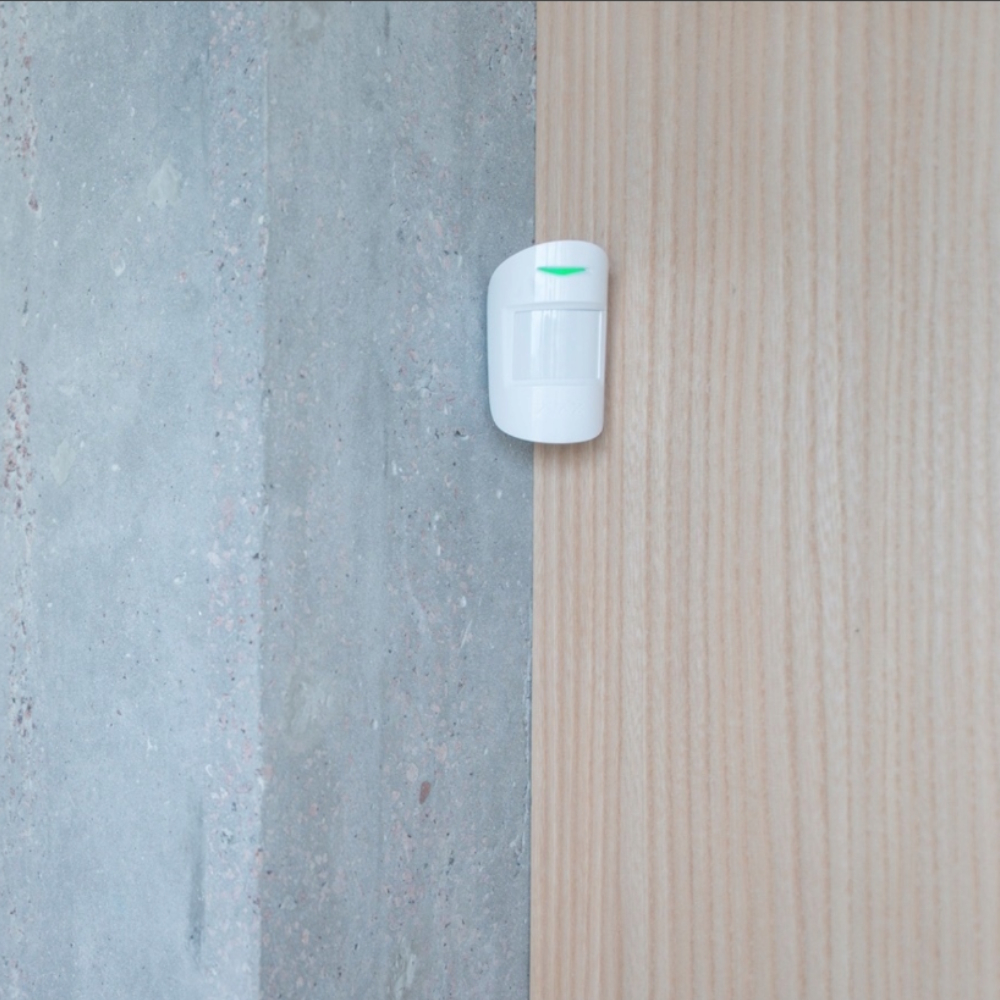

• Mounting: Wall mounting with SmartBracket
• Tamper protection: Alarm in case of tampering or removal
• Adjustable LED indicator for alarm and status
• SmartDetect algorithm for fewer false alarms
