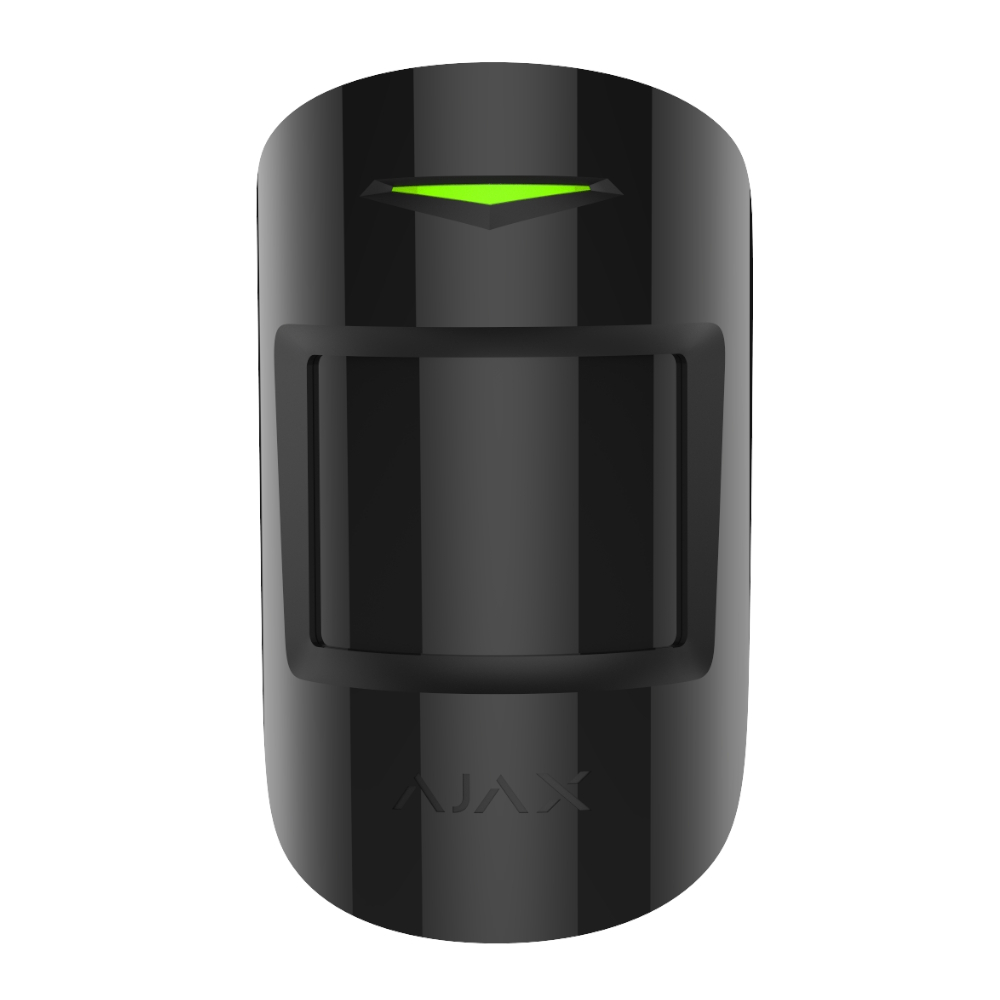

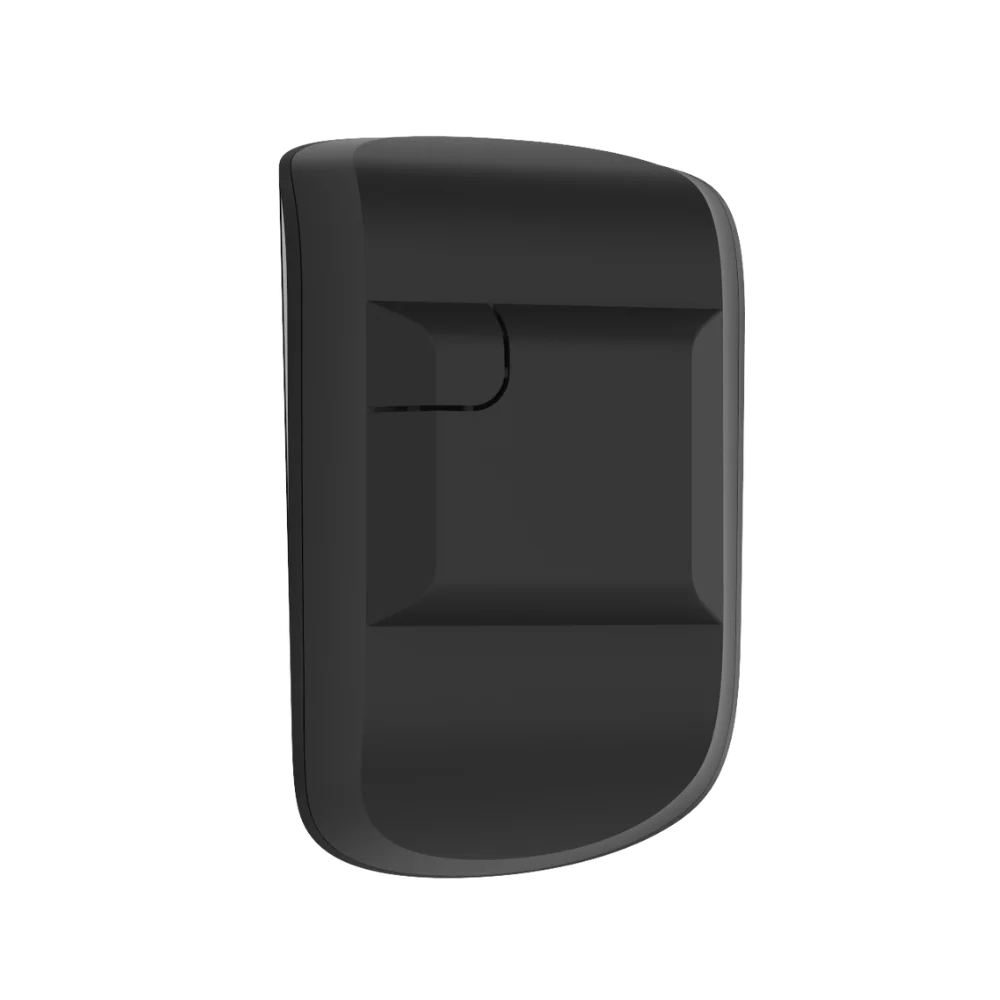

Ajax MotionProtect PIR Motion Detector Black

Description

Wireless, passive infrared (PIR) motion sensor that detects movement in a room and immediately sends an alarm to your Ajax security system when someone moves in the protection zone. It is designed for indoor installation, works with Ajax hubs and the user can adjust the sensitivity via the app. The sensor is immune to pets up to approximately 20 kg and approximately 50 cm tall, which reduces false alarms from family pets.

Specifications

• Type: Wireless PIR motion detector for indoor use
• Colour: Black
• Installation: Indoor
• Compatibility: All Ajax hubs, repeaters, ocBridge Plus and uartBridge
• Detection distance: Up to approx. 12 m
• Field of view: Horizontal 88.5° / Vertical 80°
• Reaction time: approx. 0.15 s
• Pet immunity: Up to approx. 20 kg and 50 cm in height
• Adjustable sensitivity in three levels
• Radio: Jeweller protocol (encrypted)
• Range: Up to approx. 1,700 m in open area
• Battery: 1 × CR123A (3 V), pre-installed
• Battery life: Up to approx. 5 years
• Operating temperature: –10 °C to +40 °C
• Operating humidity: Up to approx. 75%
• Dimensions: approx. 110 × 65 × 50 mm
• Mounting: With SmartBracket panel (included)
• Tamper protection: Notifies if device is removed or tampered
• Block-AES encryption and jamming detection
