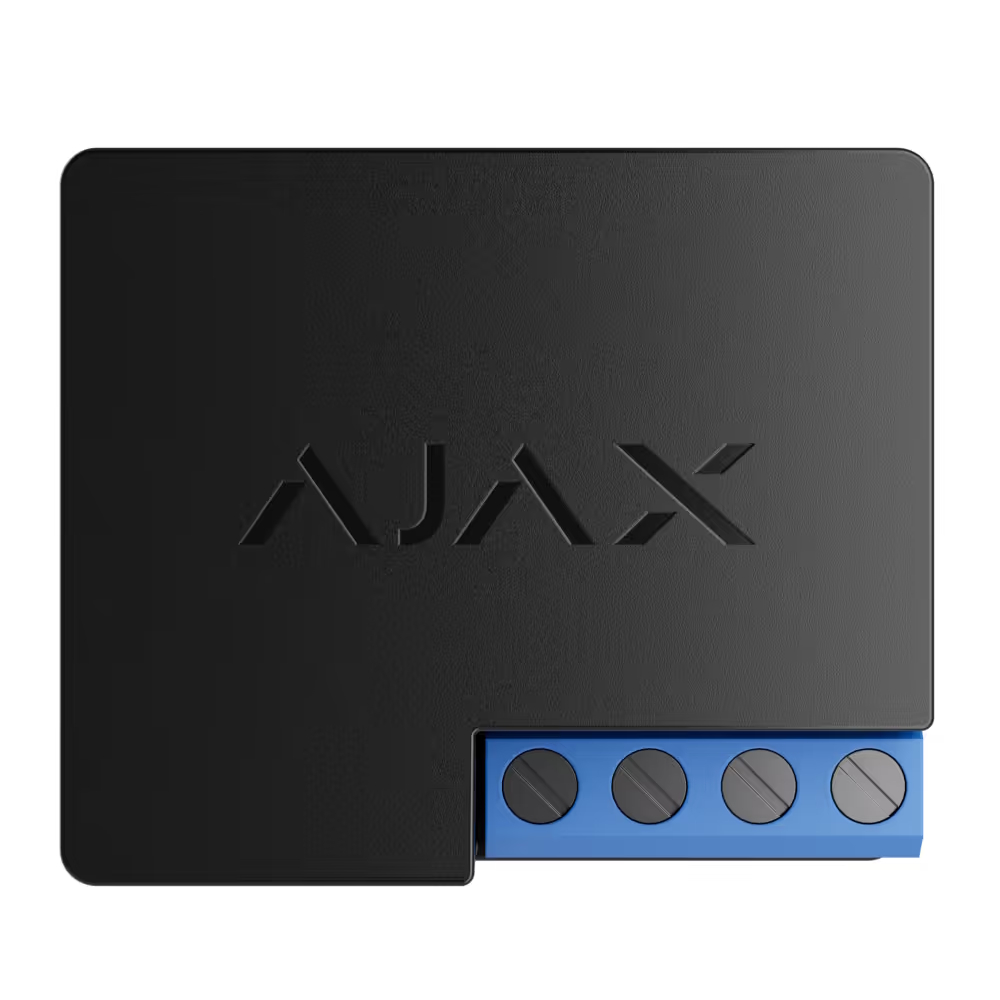

Ajax Relay Switch 230V Remote Controlled

Description

Wireless relay module for controlling 230V electrical appliances via the Ajax security system. It is easily installed in a flush-mounted box or electrical panel and allows you to remotely control the power to lights, pumps, heating elements, valves and other devices directly from the Ajax app. The relay module can also monitor energy consumption, voltage and current in real time via the app and is protected against overcurrent, overvoltage and overtemperature for safer operation.

Specifications

• Type: Ajax WallSwitch / remote controlled relay switch
• Color: Black
• Use: Indoor
• Compatibility: Works with Ajax hubs and repeaters (ReX)
• Mains voltage: 110 – 230 V AC ± 10%, 50/60 Hz
• Maximum load current: 13 A
• Maximum power: Up to 3 kW (resistive load at 230 V)
• Protection: Overcurrent, overvoltage and overtemperature activate automatic shutdown
• Wireless communication with Ajax hub via Jeweller protocol
• Range: Up to ~1,000 m in open area
• Remote control: Switch connected devices on/off via Ajax app
• Automation: Scenarios and scheduling can create rules for automatic control
• Energy monitoring: Displays current, voltage and power in real time in the app
• Operating mode: Bistable or impulse mode (depending on firmware)
• Temperature: 0 °C to +64 °C
• Humidity: Up to approx. 75%
• Protection class: IP20 (indoor installation)
• Dimensions: approx. 39 × 33 × 18 mm
