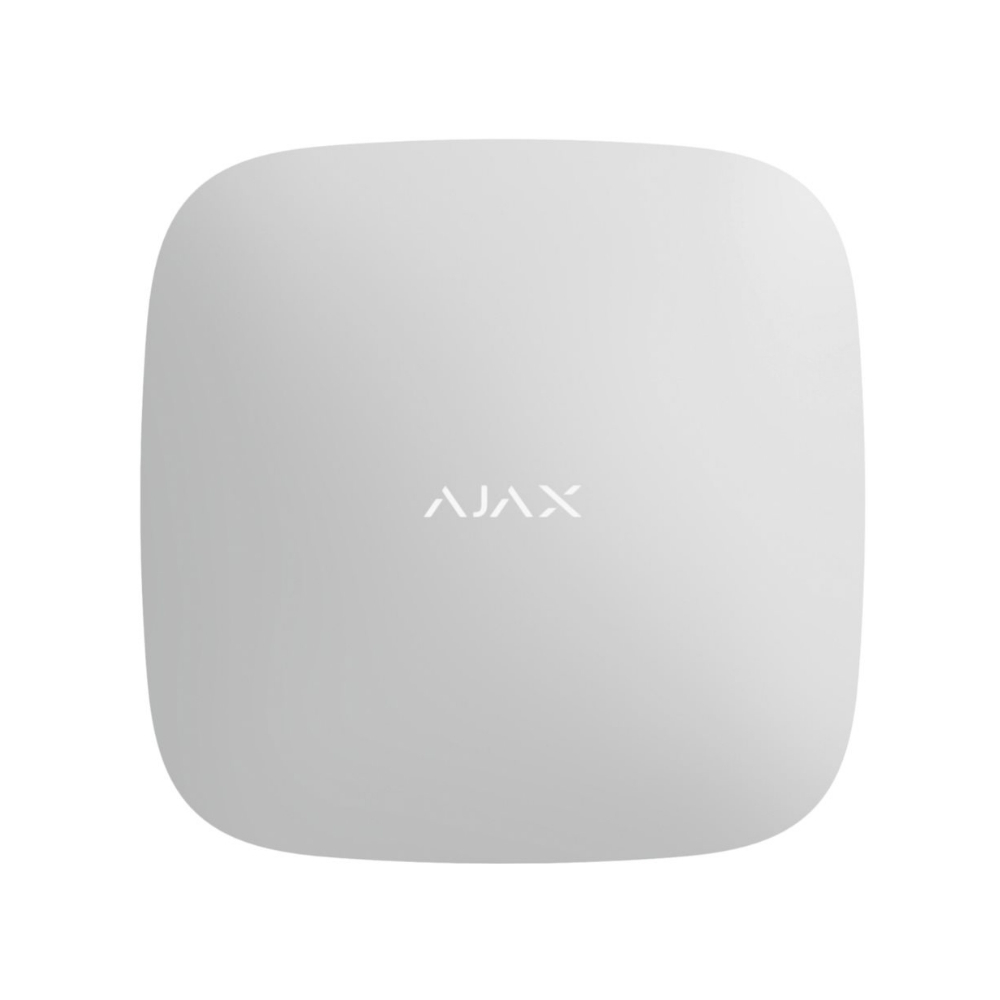

Ajax Signal Repeater ReX White/Black

Description

The Ajax ReX wireless signal amplifier is an intelligent range extender for Ajax security systems. It is used to extend the wireless communication radius between your Ajax hub and the wireless sensors, which makes it possible to place detectors, sirens and other devices significantly further away from the hub or in scattered buildings. ReX receives radio signals from the hub and forwards them to connected devices - and vice versa - while maintaining a level of security and fast transmission. The device also has battery backup so it continues to function even in the event of a power outage and is protected against manipulation with tamper alarms.

Specifications

• Type: Wireless signal extender / repeater for the Ajax system
• Installation: Indoor
• Communication radius: Up to approx. 1,800 m in open area
• Compatible with all Ajax hubs (e.g. Hub, Hub 2, Hub 2 Plus, etc.)
• Supports up to several wireless Ajax devices (number may vary depending on hub model)
• Alarm transmission time: approx. 0.3 seconds
• Communication: Two-way radio via Jeweller protocol with AES encryption
• Temperature range: –10 °C to +40 °C
• Operating humidity: up to approx. 75%
• Tamper protection: Yes (alarm in case of manipulation)
• Power supply: Mains power 110–240 V AC or with 12 V PSU (if compatible)
• Backup battery: Built-in Li-Ion battery (approx. 2 Ah) provides up to 35 hours of operation in the event of a power failure
• Dimensions: 163 × 163 × 36 mm
