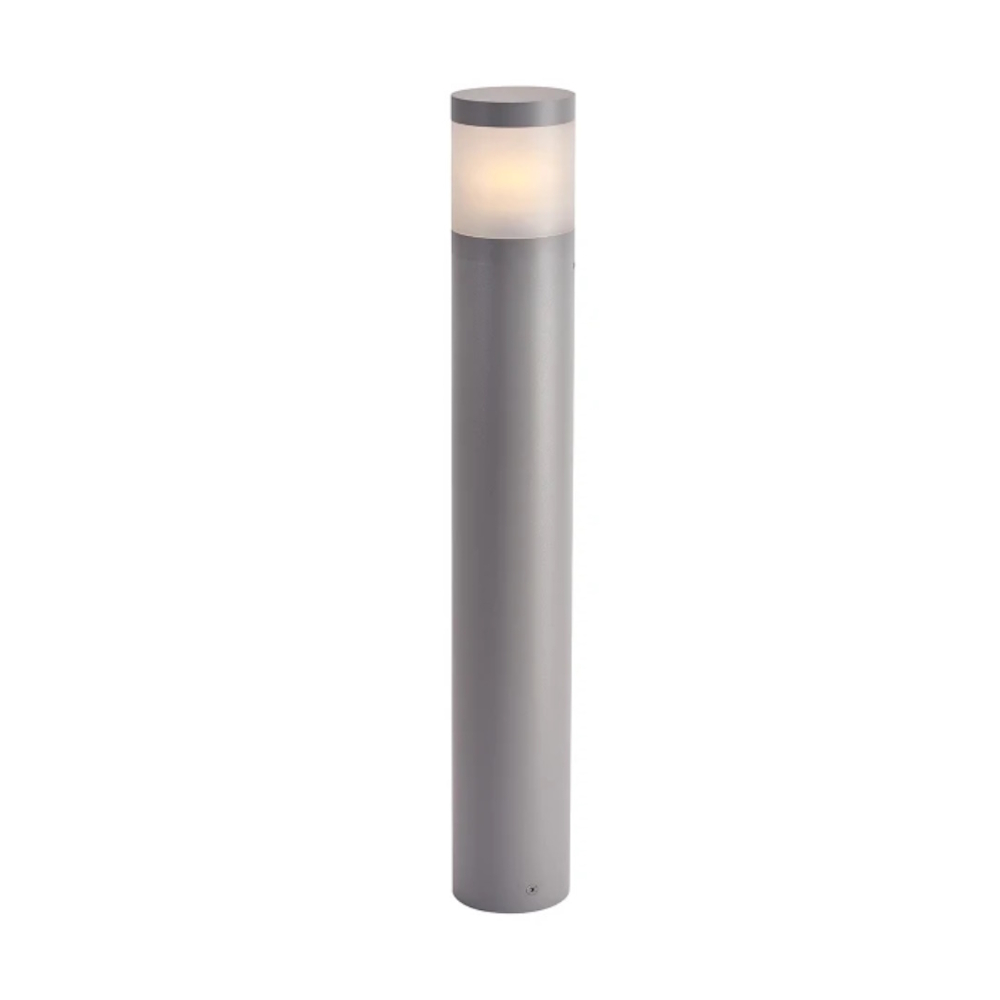

Bollard Lillesand Aluminium LED 9.2W 3000K Norlys 2330AL

Description

Bollard in cast aluminium. Frosted polycarbonate that shields the light source and spreads an even and pleasant light. Available in two colours. Available both with LED and for E27 socket Various fixing devices are available as accessories.

Technical Information

• Nominal luminous flux: 897 lm
• Color temperature: 3000 - 3000 K
• Light distribution: Symmetrical
• Protection class (IEC 61140): II
• Impact resistance (IK): IK08
• Color housing/enclosure/frame: Aluminum
• With base/base plate: Yes
• Number of poles: 2
• Diameter: 120 mm
• Driver: Not required
• Driver included: Yes
• Power factor: 0.9
• Energy efficiency class built-in lamps: A++, A+, A (LED)
• Energy efficiency class light source (EU 2019/2015): C
• Energy efficiency class supplied replacement lamps: C
• Color rendering index (CRI/Ra): 80-89
• Highest energy efficiency class for replacement lamps: E
• Height/depth: 850 mm
• Protection class (IP): IP65
• Lowest energy efficiency class for replacement lamps: C
• Lamp holder/socket: Other
• Suitable for lamp power: 7.4 - 7.4 W
• Suitable number of light sources: 1
• Conductor cross-section: 4 mm²
• Light color: White
• Light distributor/diffuser: None
• Light source: LED (replaceable)
• Luminous efficiency: 97.5 lm/W
• Light outlet: Direct
• Rated voltage: 220 - 240 V
• Material housing/enclosure/frame: Aluminum
• Material dome/cover: Plastic (opal)
• Material quality housing/enclosure/frame: Other
• Max. system power: 9.2 W
• With light source: Yes
• With light sensor: No
• With motion sensor: No
• Nominal lifetime L70/B50 at 25 °C: 72000 h
• Protection level (NEMA): Other
• Voltage type: AC
• Connection type: Other
• Lighting type: Bollard luminaire
• Cable routing type: Suitable for through wiring
• Replaceable driver: Yes
• Surface treatment: Powder coated
• Food Contact Material: No
• REACH: No
