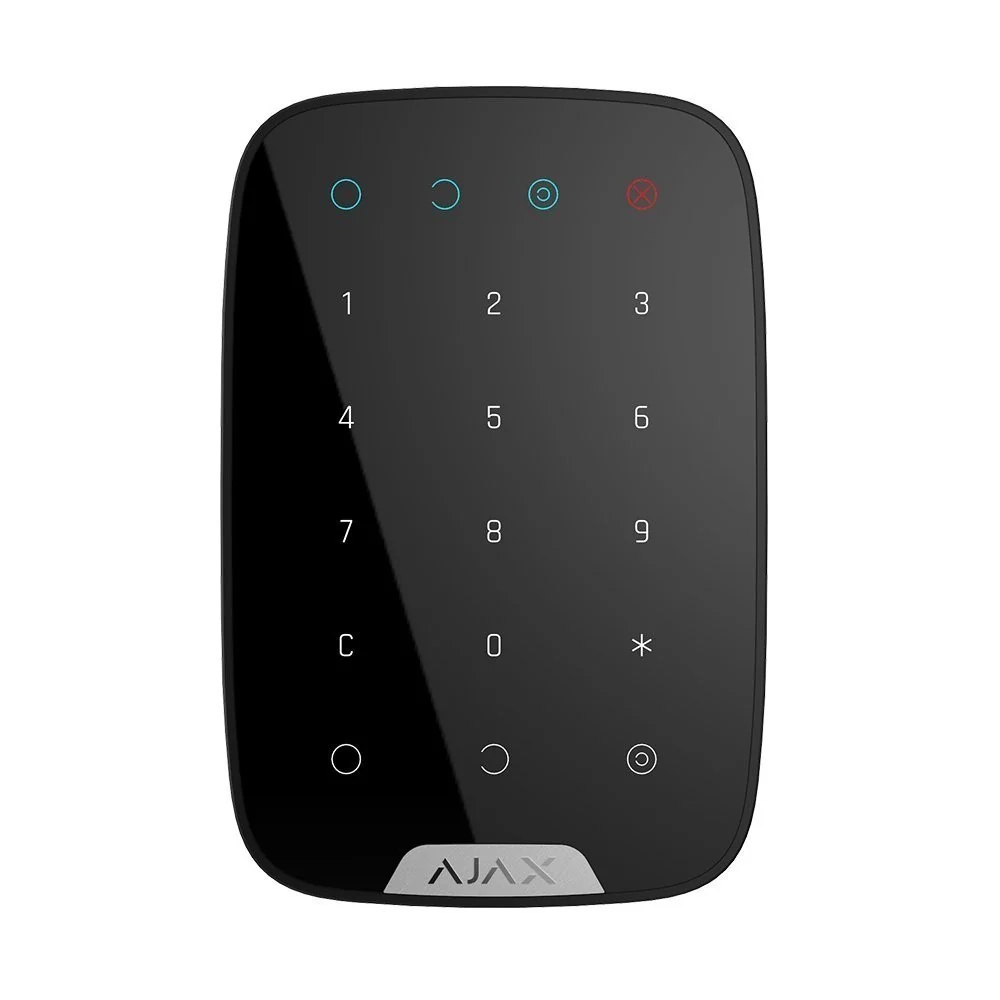

Ajax Control Panel Black

Description

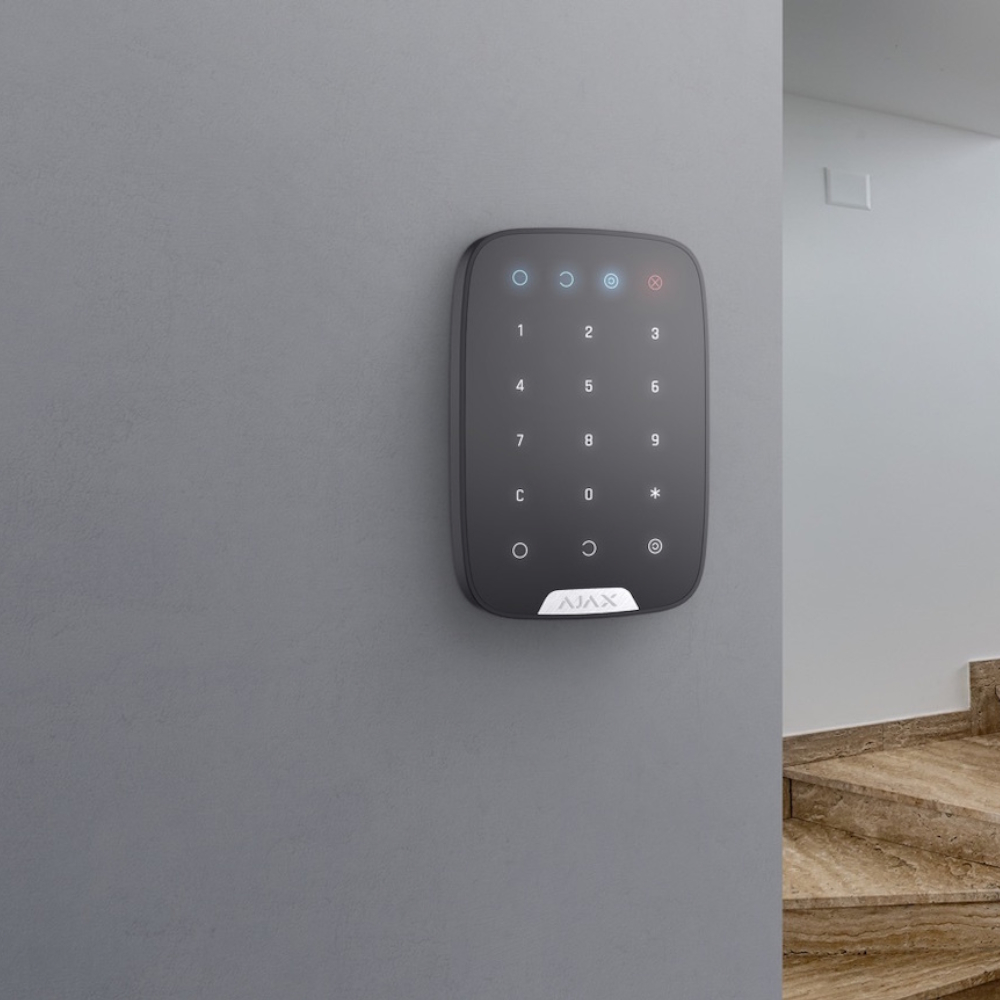

Wireless touch keypad used to arm/disarm and control various security modes in your Ajax alarm system. It is usually mounted indoors at the entrance or near a door for quick access and easy control. The KeyPad is equipped with encrypted Jeweller communication to the hub and provides clear indication of system status, errors and communication problems. It supports silent alarm function (in case of code use under duress) and protection against typos by automatic blocking after many incorrect code entries.

Features

• Touch buttons for alarm on/off, system parts, and panic
• LED indicators show current status and errors
• Silent alarm function (silent alarm) when entering a duress code
• Code protection: protection against code guessing and automatic blocking

Specifications

• Type: Wireless touch keypad for Ajax alarm system
• Color: Black
• Installation: Indoor
• Wireless technology: Jeweller protocol (encrypted)
• Range: up to approx. 1,700 m in open area
• Two-way communication between KeyPad and hub
• Batteries: 4 × AAA (pre-installed)
• Battery life: Up to approx. 2 years depending on use
• Working temperature: –10 °C to +40 °C
• Operating humidity: up to 80%
• Dimensions: approx. 150 × 103 × 14 mm
• Mounting: SmartBracket panel included
• Compatibility: Works with all Ajax hubs (e.g. Hub 2, Hub 2 Plus, Hub Plus) and repeaters (ReX) with Jeweller support
