Control Pressure Gauge Valve BA 1324 G15 Beulco
Impel control pressure gauge valve type 324 with control flange in brass including fiber gasket DN10 and plug.
Watch this product and we will notify you once it is back in stock.
Control Pressure Gauge Valve BA 1324 G15 Beulco
Description
Impel control pressure gauge valve type 324 with control flange in brass including fiber gasket DN10 and plug. Working pressure max 100bar. Max temp 185C.
Technical Information
- Dimension: G15
- Size: L=64mm
- Pressure/Flow/Temp: PN100
- Function: Control
- Design: Internal/external thread, knob
- Color: Brass
- Material: Brass
- Material housing/enclosure/body: Brass
- Material quality housing/enclosure/body: Brass CuZn40Pb2 (CW617N)
- Surface protection: Untreated
- Connection 1: External thread G, cylindrical (ISO 228-1)
- Connection 2: Internal thread G, cylindrical (ISO 228-1)
- Connection dimensions 1: Conn. 15 (1/2")
- Incl. spindle nut and soldering pipe: No
- Connection size 2: Connection 15 (1/2")
- With union nut, connection 2: Yes
- With connection for test/measurement: Yes
- Type of test connection: Flange
- Pressure class: PN 100
- Max. working pressure at 20°C (PN): 100 bar
- Max. medium temperature (continuous): 185 °C
- Max. working pressure at max. medium temperature: 100 bar
- Operation: Handwheel
- Length connection 1: 32 mm
- Length connection 2: 25 mm
- Length handle / Diameter handwheel: 58 mm
- Construction length: 64 mm
- Wrench size: 27 mm
Specification
- Dimensions (WxHxD): 70×85×85 mm
Tillbehör
-

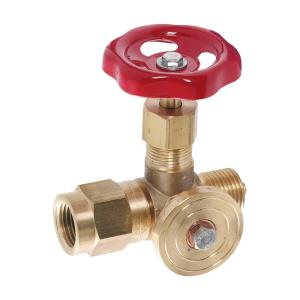

Control Pressure Gauge Valve BA 1324 G10 Beulco
