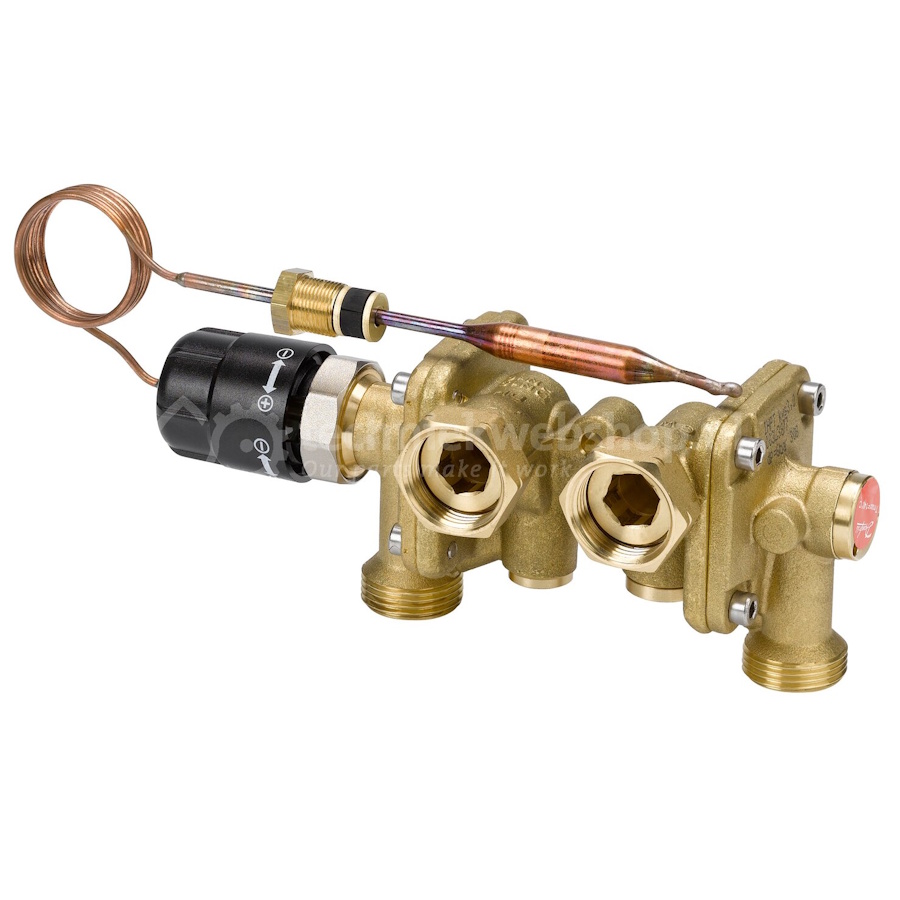

Danfoss IHPT PN16 15/2.4 45-65 Hot Water Regulator

Optimize domestic hot water production in your property with the Danfoss IHPT, an advanced and self-acting temperature regulator. This flow-compensated controller is specifically engineered for smaller district heating substations, providing instantaneous and highly precise regulation of domestic hot water without the need for auxiliary energy or electricity.

Integrated Differential Pressure Controller for Maximum Stability
The IHPT valve is unique due to its built-in differential pressure controller (Δp controller). This smart feature automatically levels out pressure fluctuations within the district heating network, protecting the sub-station system and guaranteeing a stable water temperature regardless of water consumption demands in other parts of the building.

Premium Material Quality and Reliable Operation
The controller is constructed from robust dezincification-resistant brass (DZR) and equipped with high-durability EPDM diaphragms, which together ensure an extended service life and reliable operation. The adjustable temperature setting range spans from +45°C to +65°C, making it easy to set an optimal and anti-scalding temperature in the system.

Product Benefits:

• Self-Acting Technology: Regulates temperature purely mechanically without any external power source.
• Flow-Compensated: Responds instantly to flow variations for a constant hot water temperature.
• Integrated Δp Controller: Stabilizes operation by eliminating pressure spikes in the grid.
• Durable Construction: Manufactured from DZR brass with robust, high-grade EPDM seals.
• Precise Settings: Adjustable temperature setting range between 45°C and 65°C.

Technical Specifications:

• Dimension: DN15
• Connection: Male thread G 3/4 A (with internal thread connection type)
• Capacity (Kvs): 2.4 m³/h
• Max Flow Rate: 1 m³/h
• Temperature Range: +45°C to +65°C
• Pressure Class: PN16 (max 16 bar)
• Max Differential Pressure: 6 bar
• Capillary Tube Length: 0.6 meters
• Material: Dezincification-resistant brass (CW602N), EPDM seals
• Manufacturer part number: 003L3813
• Item number: 5402850 (SE ref)
• EAN number: 5702421554005
