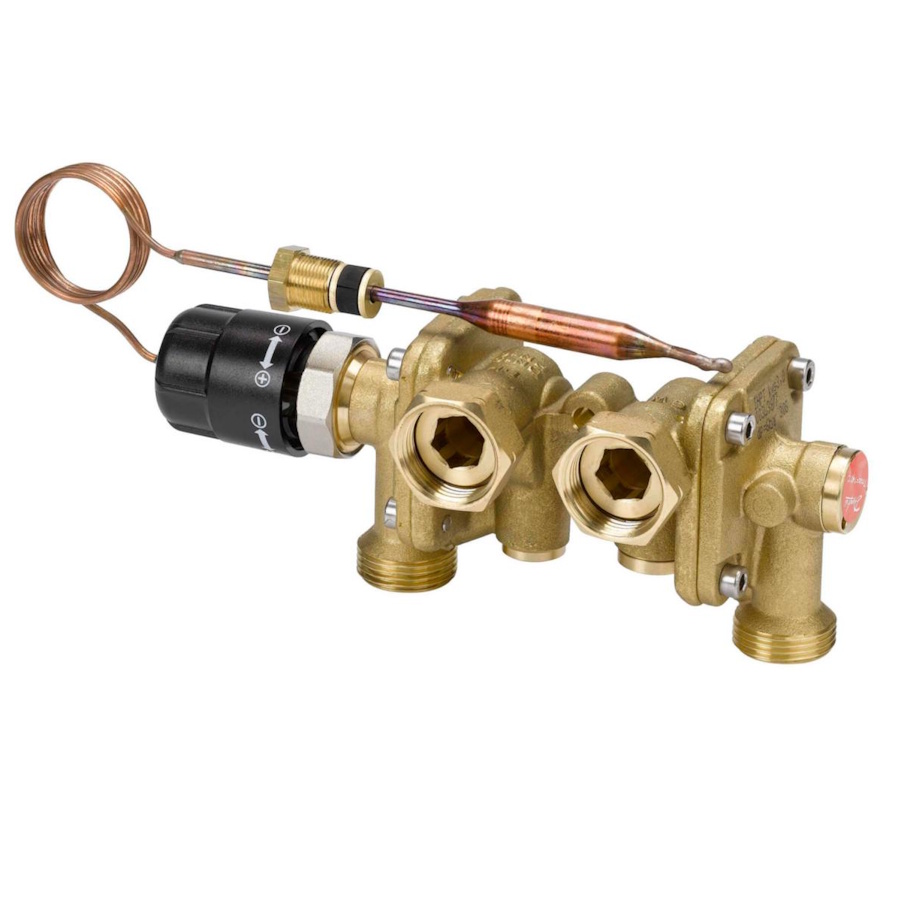

Danfoss IHPT PN16 15/2.4 45-65 Hot Water Regulator, with Union Nut and Damping

Ensure stable and optimal domestic hot water production with the Danfoss IHPT, a flow-compensated and self-acting temperature controller. This specific configuration comes equipped with a practical union nut connection for smooth installation in compact district heating substations, along with integrated damping features that actively mitigate mechanical vibrations and pressure shocks within the network. The valve operates purely mechanically, requiring no electrical power.

Integrated Differential Pressure Controller for Fluctuation-Free Operation
The valve's built-in tryckregulator automatically monitors and smooths out pressure spikes within the district heating network. Consequently, the domestic hot water delivery remains completely constant and anti-scalding, regardless of sudden demand or flow changes elsewhere in the building network.

Heavy-Duty and Damped Engineering
The IHPT controller is manufactured from robust dezincification-resistant brass paired with damped mechanical internal parts and heavy-duty diaphragms to maximize operational lifespan under continuous stress. With an adjustable temperature calibration range spanning from +45°C to +65°C, it is easy to tune your station for top-tier energy efficiency and user comfort.

Product Benefits:

• Integrated Damping: Built-in dampening internals safeguard against line vibrations and smooth out operation.
• Convenient Union Nut: Simplifies mounting and maintenance tasks through a flexible mechanical link.
• Self-Acting Design: Regulates hot water mechanically without needing any external electricity inputs.
• Integrated Pressure Controller: Mitigates grid pressure fluctuations to secure a stable water temperature.
• Instantaneous Response: Flow-compensated dynamics that adjust immediately to line changes.

Technical Specifications:

• Dimension: DN15
• Connection: G 3/4 A with internally threaded union nut
• Capacity: 2.4 m³/h
• Temperature Range: +45°C to +65°C
• Pressure Class: PN16 (max 16 bar)
• Max Differential Pressure: 6 bar
• Feature: Flow-compensated with integrated damping
• Material: Dezincification-resistant brass, EPDM seals
• Manufacturer part number: 003L3875
• Item number: 5402852
• EAN number: 5702421558706
