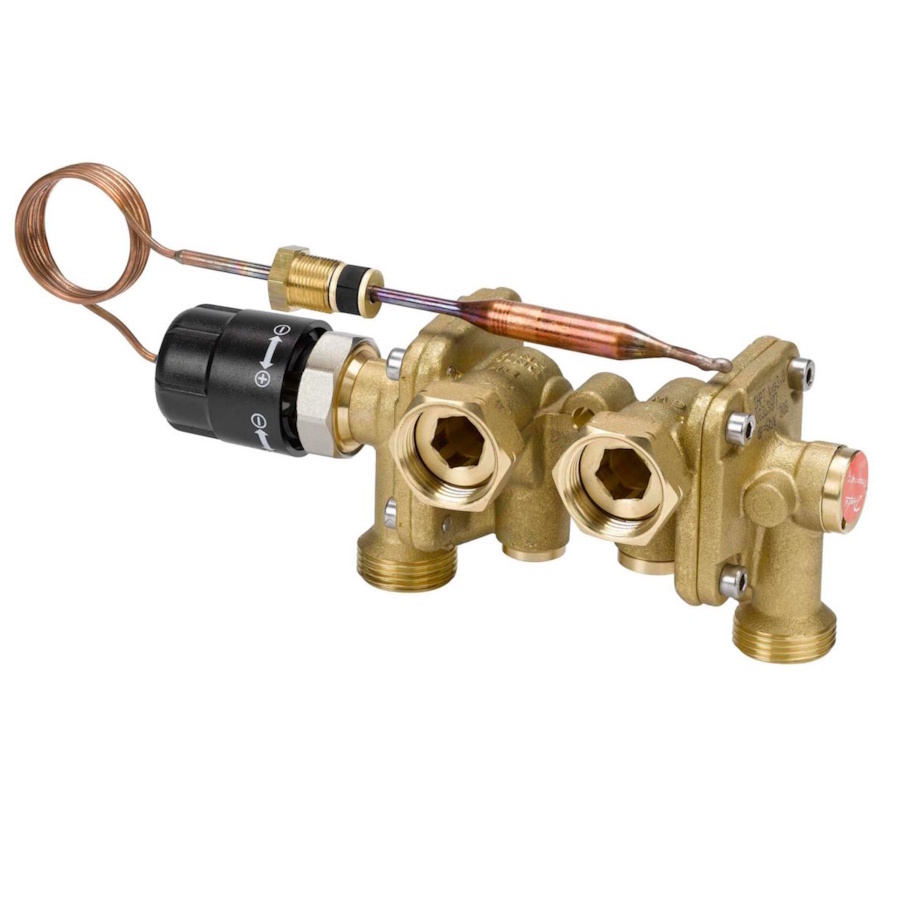

Danfoss IHPT PN16 15/3.0 45-65 Hot Water Regulator, with Union Nut and Damping

Ensure complete stability and optimal domestic hot water production with the Danfoss IHPT, a flow-compensated and self-acting temperature controller. This high-performance configuration comes equipped with a convenient union nut connection for smooth installation in compact district heating substations, along with integrated damping features that actively mitigate mechanical vibrations and pressure shocks within the network. The valve operates purely mechanically, requiring no electrical power.

Integrated Differential Pressure Controller for Maximum Pressure Stability
The valve features a built-in differential pressure controller that automatically monitors and smooths out pressure spikes within the district heating network. This protects the substation system and guarantees a constant, stable, and anti-scalding hot water temperature at the taps, regardless of sudden flow fluctuations or load adjustments in the surrounding main grid.

Heavy-Duty Construction in Dezincification-Resistant Material
The IHPT controller is manufactured from robust dezincification-resistant brass paired with dependable EPDM diaphragms, engineered to maximize operational lifespan under continuous stress. With an adjustable temperature calibration range spanning from +45°C to +65°C, it is easy to tune your station for premium energy efficiency and user comfort.

Product Benefits:

• Integrated Damping: Built-in dampening internals safeguard against line vibrations and smooth out operation.
• Higher Flow Capacity: Kvs rating of 3.0 m³/h reliably accommodates larger instantaneous hot water demands.
• Convenient Union Nut: Simplifies mechanical linkage tasks and streamlines routine maintenance.
• Self-Acting Design: Regulates hot water temperature mechanically without requiring external electricity inputs.
• Instantaneous Flow Compensation: Responds immediately to dynamic user demands at the tap.

Technical Specifications:

• Dimension: DN15
• Connection: G 3/4 with internally threaded union nut
• Capacity: 3.0 m³/h
• Temperature Range: +45°C to +65°C
• Pressure Class: PN16 (max 16 bar)
• Max Differential Pressure: 6 bar
• Feature: Flow-compensated with integrated damping
• Material: Dezincification-resistant brass, EPDM seals
• Manufacturer part number: 003L3881
• Item number: 5402853
• EAN number: 5702421558768
