Double Socket Outlet With Lid Exxact 2Poles+E 16A 250V IP44 White Schneider Electric

Description

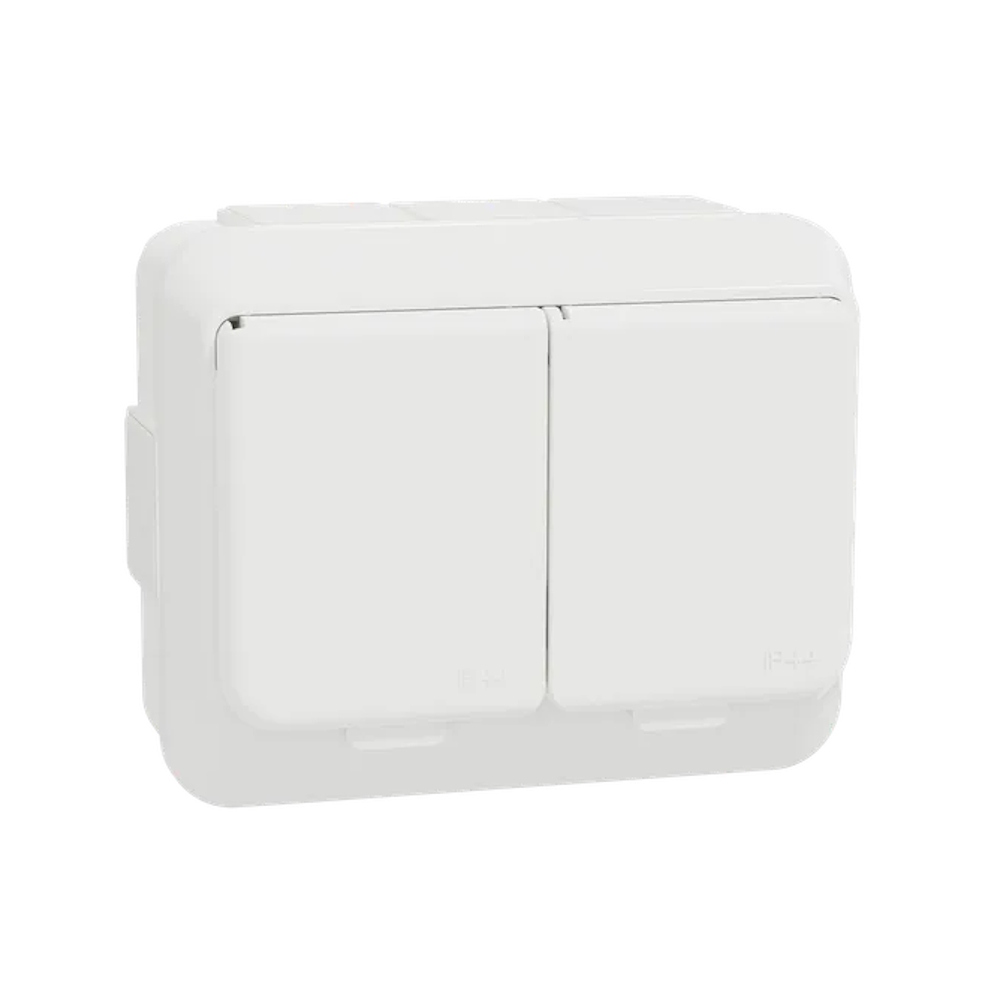

Schneider Electric Exxact socket-outlet is in color white with 2 outlets. This socket-outlet is with a lid, protecting children, babies or toddlers from exposing to electronic outlet. The outlet pole configuration of this socket-outlet is 2P+E. And the rated current of this socket-outlet is 16A. Surface mounting is enabled so its box can be recessed into the surface and thus not protruding. The socket-outlet is 82 mm in width, 100 mm in height and mm in embedding depth, whose projecting depth is 53 mm. IP44 level makes the socket-outlet as reliable and resistant as possible. Being made of PC (polycarbonate) material, this socket-outlet is very reliable and resistant. Besides, it meets the following standards, IEC 60884-1, NEK 502:2006, SFS 5610:2004, SS 4280834, VDE 0620-1. It obtained FIMKO, NEMKO, SEMKO certificate as well. What's more, this socket-outlet is qualified as a green premium product. And it is mercury free and heavy metal free. This socket-outlet is SVHC (substances of very high concern) free too. Exxact is a wiring range developed from Nordic installation habits. As integrated solutions for energy and comfort controls, there are more than 250 functions and inserts to choose from.

Technical Information

• Nominal current: 16A
• Nominal voltage: 250V
• Mounting method: Surface mounted (plaster)
• Model: Protective contact (type F)
• Halogen free: Yes
• Number of units: 2
• Lockable: Yes
• With hinged lid: Yes
• Connection type: Screwed terminal
• Surface protection: Untreated
• With signal lamp: No
• Number of phases: 1
• With enhanced contact protection: Yes
• Frequency: 50-60 Hz
• With on/off switch: No
• Protective contact: Yes
• Label space/information surface: No
• Eject-mechanism: No
• Rotated central insert: No
• Over voltage protection: No
• Fault current protection: No
• Special power supply: No special power supply
• Insulated mounting: Yes
• Rated fault current: 0mA
• Type of fastening: Mounting with screw
• Imprint/indication: None
• With miniature fuse: No
• With loop through function: Yes
• Suitable for degree of protection (IP): IP44
• Number of socket outlets switchable: 0
• With function lighting: No
• With orientation lighting: No
• With built-in USB power supply: No
• Number of modules (module system): 0
• Number of active pins (round): 4
• Number of active pins (flat): 0
• Protective earth pin round: No
• Min. depth of built-in installation box: 0 mm
• Metallic colour: No
• Anti-bacterial treatment: No

Specifications

• Colour: White
• RAL-number (similar): 9003
• Transparent: No
• Surface finishing: Glossy
• Material: Plastic
• Material quality: Thermoplastic
• Measure (HxWxD): 100x82x58mm
