Enclosure Mini Kaedra 6-Modular With N+PE Terminals IP65 Schneider Electric

Description

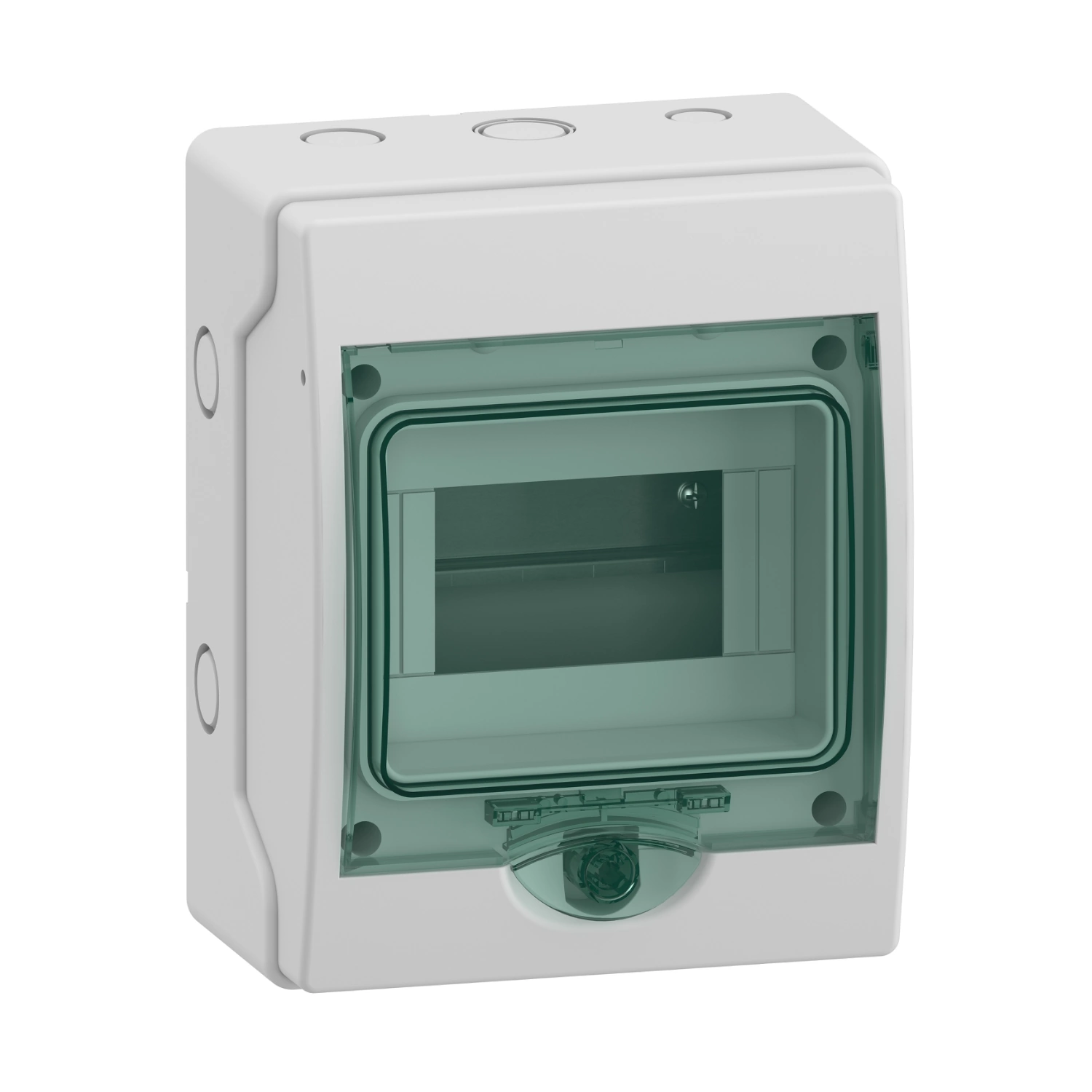

Robust, compact and weatherproof standard enclosure from Schneider Electric's well-known Mini Kaedra series (Mureva). With IP65 rating and IK09 impact resistance, this enclosure provides uncompromising protection for fuses, timers and earth leakage circuit breakers in demanding environments - from garages and agriculture to industry and outdoor installations. Comes complete with DIN rail and ready-made PE/N distribution terminals.

Choose Schneider Mini Kaedra 6-module standard distribution board

A reliable and impact-resistant distribution board for environments where moisture, dust or cold prevail. Schneider Electric Mini Kaedra is constructed of UV-resistant and self-extinguishing polymer that can withstand temperatures between -25 °C and +60 °C. The transparent, smoke-green front cover provides a direct visual overview of the components without having to open the enclosure, which minimizes wear and unnecessary exposure.

Key benefits and features

• Highest protection against weather and wind (IP65): Splash-proof and dust-tight - ideal for washrooms, stables, boat docks and garden installations.
• Mechanical durability (IK09): Withstands tough impacts and mechanical impact in workshops and warehouses.
• Class II double insulated: Enhanced electrical safety and safe operation.
• Complete mounting kit directly in the package: Equipped with integrated DIN rail, marking strip and separate PE/N terminals (4 connections each).
• Installer-friendly: Pre-punched knock-outs (PG/ISO) at the top and bottom make wiring and feed-throughs quick and easy.

Areas of application

Thanks to its durable construction, the Mini Kaedra 6-module is the obvious choice for:

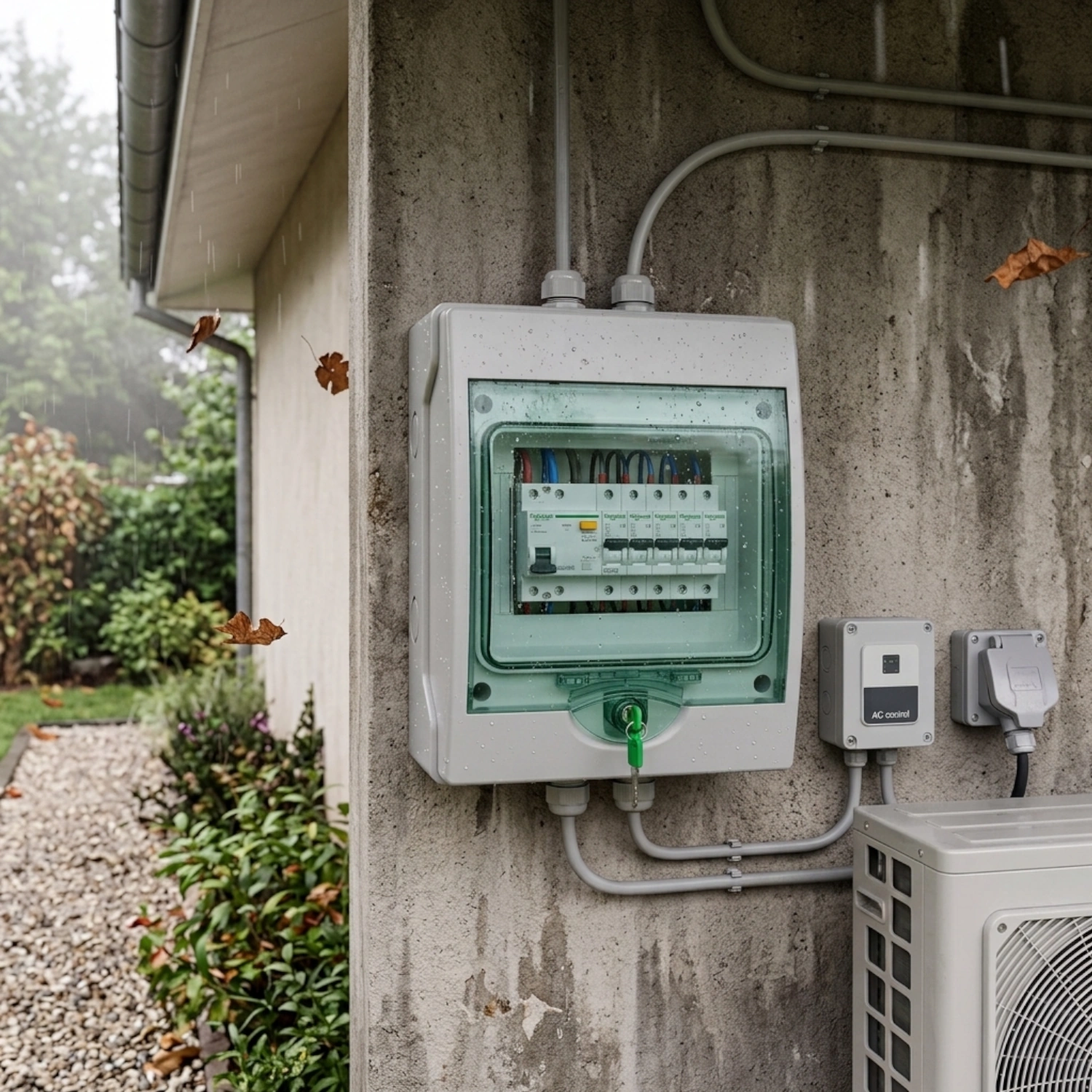

• Villa and Garden: Hot tubs, pool controls, electric car charger accessories, garden lighting and outbuildings.
• Garage and Workshop: Machines, welding sockets and workbenches where dust and particles are present.
• Agriculture and Stables: Protects electrical components against moisture, ammonia fumes and dirt.
• Industry and Commercial properties: Reliable substations for pumps, ventilation and gate control.

Specifications

• Series / Model: Mureva (Mini Kaedra)
• Number of modules (18 mm): 6 modules (1 row)
• Rated current: 63 A
• Enclosure class: IP65 (dustproof & splashproof)
• Impact resistance: IK09
• Protection class: Class II (double insulated)
• Maximum power loss: 11 W
• Material: Self-extinguishing and UV-stable polymer (glow-wire tested 650 °C according to IEC 60695-2-1)
• Color: Light gray base (RAL 7035) with transparent green door
• Dimensions (W × H × D): 159 × 200 × 112 mm (internal installation depth: 56 mm)
• Operating temperature: -25 °C to +60 °C
• Standard: IEC 61439-3
• Included accessories: 1 marking strip, 2 PE/N terminals (2×10 mm² + 2×16 mm² per terminal)
