Swim & Fun Filter System ClearWater Compact 250W

Description

Create the best conditions for healthy, inviting and clear swimming with Swim and Fun ClearWater Compact 250W. This complete and space-efficient filter system is specially designed for swimming pools and garden pools that hold up to 22,500 liters of water. Thanks to continuous circulation and effective purification, the need for manual maintenance is minimized, freeing up valuable time for wonderful swimming moments.

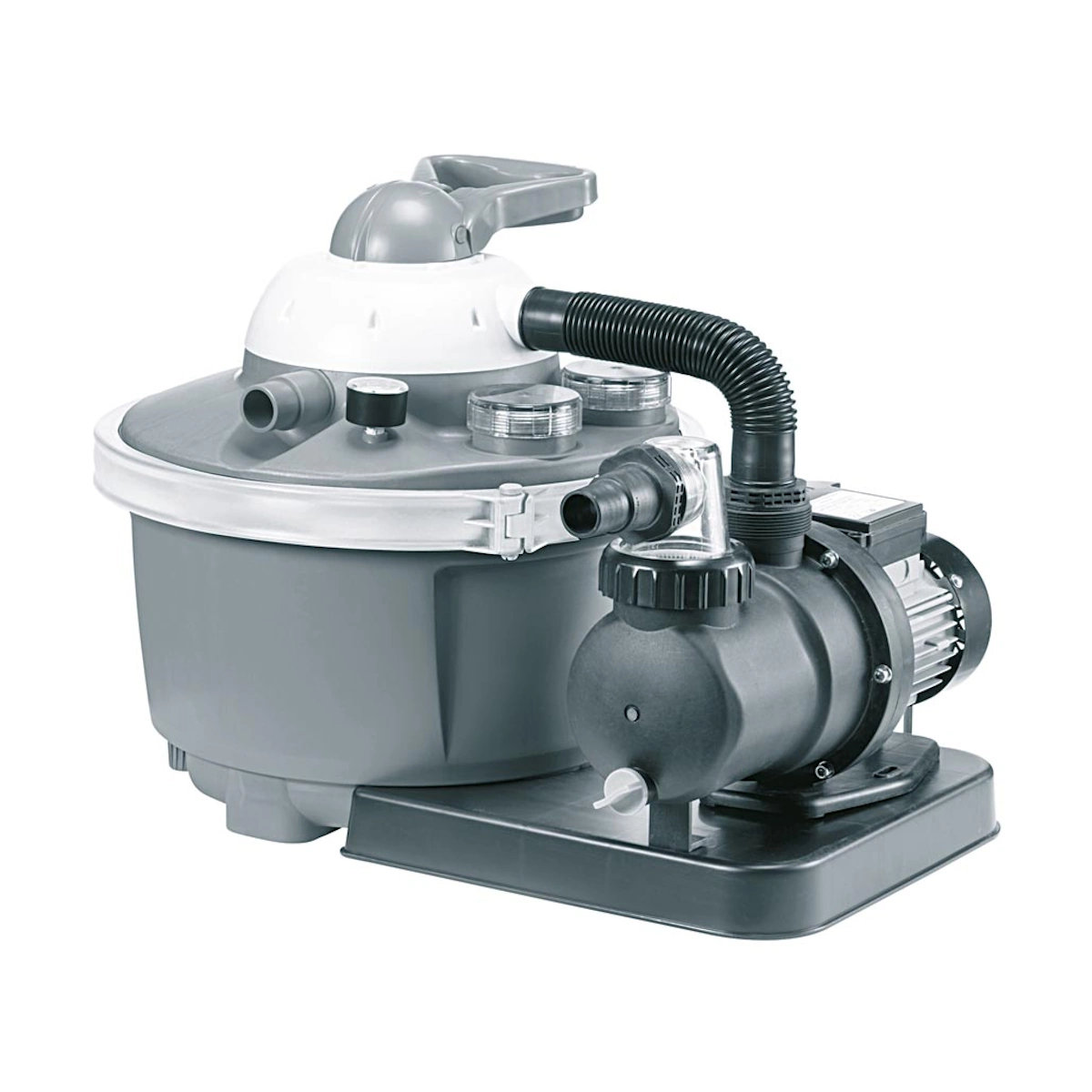

The system is designed with a robust and weather-resistant filter tank and a powerful, self-priming 250 W pump that is mounted on the associated platform. The pre-filter on the pump simplifies the process when backwashing and acts as protection against coarser particles. The integrated pressure gauge makes it easy to read the pressure in the tank during use, and the easy-to-handle top valve contributes to smooth maintenance.

Optional solutions for filter media

This flexible filter system is compatible with two different types of filter material, allowing you to choose the solution that suits you best:

• Filterballs: A modern and environmentally friendly alternative that captures particles down to 10 microns. Filterballs create minimal water resistance, which leads to a higher water flow and reduced energy consumption. In addition, there is no need for regular backwashing, as the material can be easily washed by hand or in a washing machine after the season. The low weight makes handling very easy, as 445 grams of Filterballs replaces a full 16 kg of filter sand.
• Filter sand: The traditional and well-proven choice that effectively filters out particles down to 40 microns. When choosing sand, it is recommended to place the system in its permanent location before filling. Sand filters require regular backwashing approximately 2 to 4 times per month to maintain optimal purification capacity.

Prepared for UV light, bottom suction and heating

ClearWater Compact offers smart expansion options to create an even more personalized pool experience:

• Directly mounted UV light: The filter cover is designed for direct installation of UV light. This method eliminates algae and spores mechanically, which helps to keep the use of chemical water care products at a lower level.
• Smooth bottom suction: The strong pump makes it possible to connect a bottom suction via the pool skimmer. This makes it easier to clean the pool bottom with a suction hose or a regular pool hose connected to a telescopic rod.
• Extended pool season: The system can be advantageously combined with an electric heater, making it easy to maintain a comfortable and balanced water temperature for a longer period of the year.

Easy installation and wide compatibility

The system is adapted for standard pools and fits directly to pool hoses with a diameter of either 32 mm or 38 mm. For maximum flexibility, a special Intex adapter is also included, which makes it possible to connect the filter system to larger Intex pools that often have unique hose dimensions. Please note that the filter system is delivered without pool hoses and filter material.

Technical specifications

• Maximum pool volume: 22,500 liters
• Pump power: 250 W
• Voltage: 230V 1N-AC / 50 Hz
• Pump capacity: 7,500 l/h
• Purification capacity at 0.4 bar: 4,500 l/h
• Qmax: 125 l/min
• Hmax: 7.5 m
• Filter tank size: 490 mm
• Capacity for filter sand: 16 kg
• Capacity for Filterballs: 445 g
• Hose connection: 32 mm and 38 mm
• Noise level: 70 dB(A)
• Dimensions (HxWxL): 43.3 x 46.2 x 64.4 cm
• Features: Self-priming pump, integrated pressure gauge, built-in pre-filter
