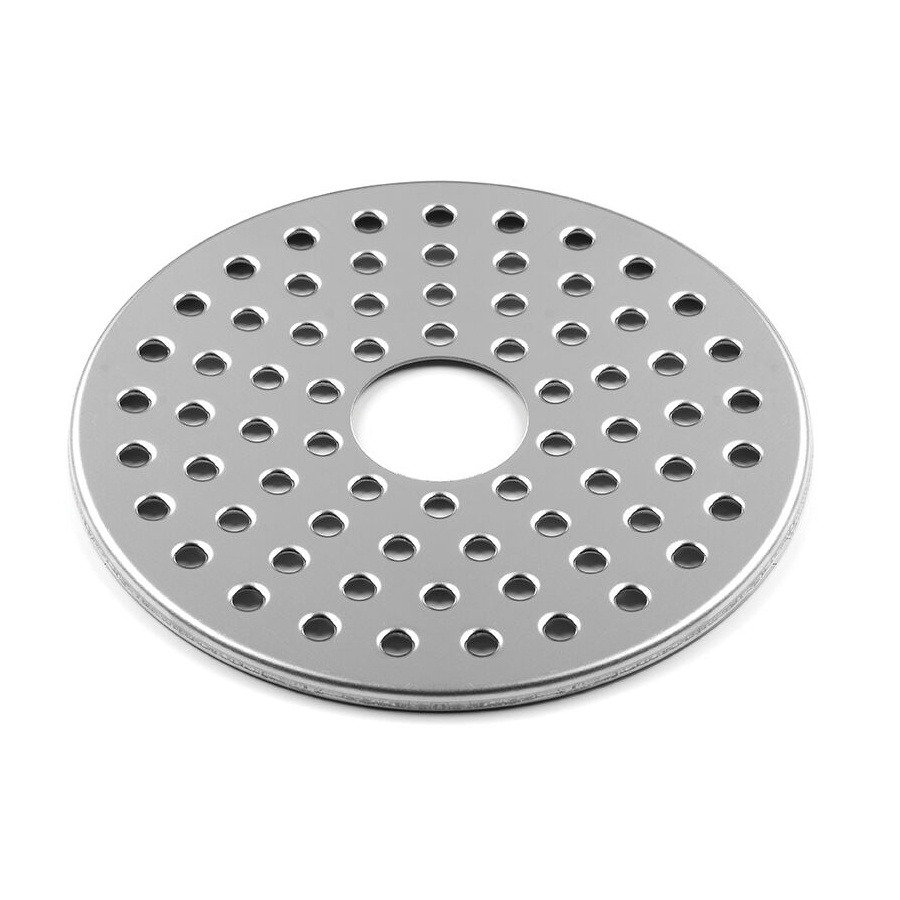

Gully Grate Jafo 86:an Klinker Ø163 mm with Cut-out Stainless Steel

Create a sleek, durable, and highly functional finish for your bathroom renovation with the Jafo 86:an Klinker floor drain gully grate.

This high-quality, round replacement grate is specifically designed to fit perfectly into tile frames measuring 200 x 200 x 7 mm. Manufactured from premium brushed stainless steel, it blends beautifully into modern tiled environments while guaranteeing maximum mechanical longevity and ultimate wear resistance.

Smart center cut-out for bathtubs or washing machines
The ultimate advantage of this specific model layout is its factory-made, centered circular cut-out with a diameter of 41 mm. This opening makes the grate ideal for positioning beneath bathtubs, washing machines, or overflow funnels, as the waste discharge hose can be routed directly into the floor drain without lifting the frame. The heavy-duty structure is rated to easily handle pressures up to 150 Kp, securing absolute stability underfoot.

High installation flexibility and simple maintenance
Boasting a generous outer diameter of 163 mm, this floor gully grate can also be deployed with outstanding results across alternative floor drain layouts on the market when a broader coverage layout is desired. During installation, the matching frame is centered above the floor gully and pressed firmly into the tile adhesive before grouting. When it is time for routine cleaning, the grate lifts out effortlessly without tools, granting instant access to the internal trap.

Product Benefits:

• Practical cut-out: Built-in Ø41 mm center opening allows for direct tracking of wastewater hoses.
• Stainless steel build: Heavy-duty stainless steel formatting delivers long-term aesthetics and corrosion shielding.
• Heavy load rating: Sturdy mechanical architecture comfortably handles downward forces up to 150 Kp.
• System adaptability: Can interface with alternative drain styles on the market alongside matching tile frames.
• Effortless cleaning: Grate lifts out manually for rapid, hassle-free clearance of the gully inner core.
• Flawless seating: Sized to sit completely flush inside standard 86:an tile manifests (200x200x7 mm).

Technical Specifications:

• Model/Design: Floor Drain Grate Jafo 86:an Klinker
• Outer diameter: 163 mm
• Center hole diameter: 41 mm
• Material composition: High-grade stainless steel
• Designed for tile frame: 200 x 200 x 7 mm
• Load-bearing maximum: 150 Kp
• Pattern profile: Round perforated layout with central aperture
• RSK identity number: 713 70 25
• EAN: 7330710312418
