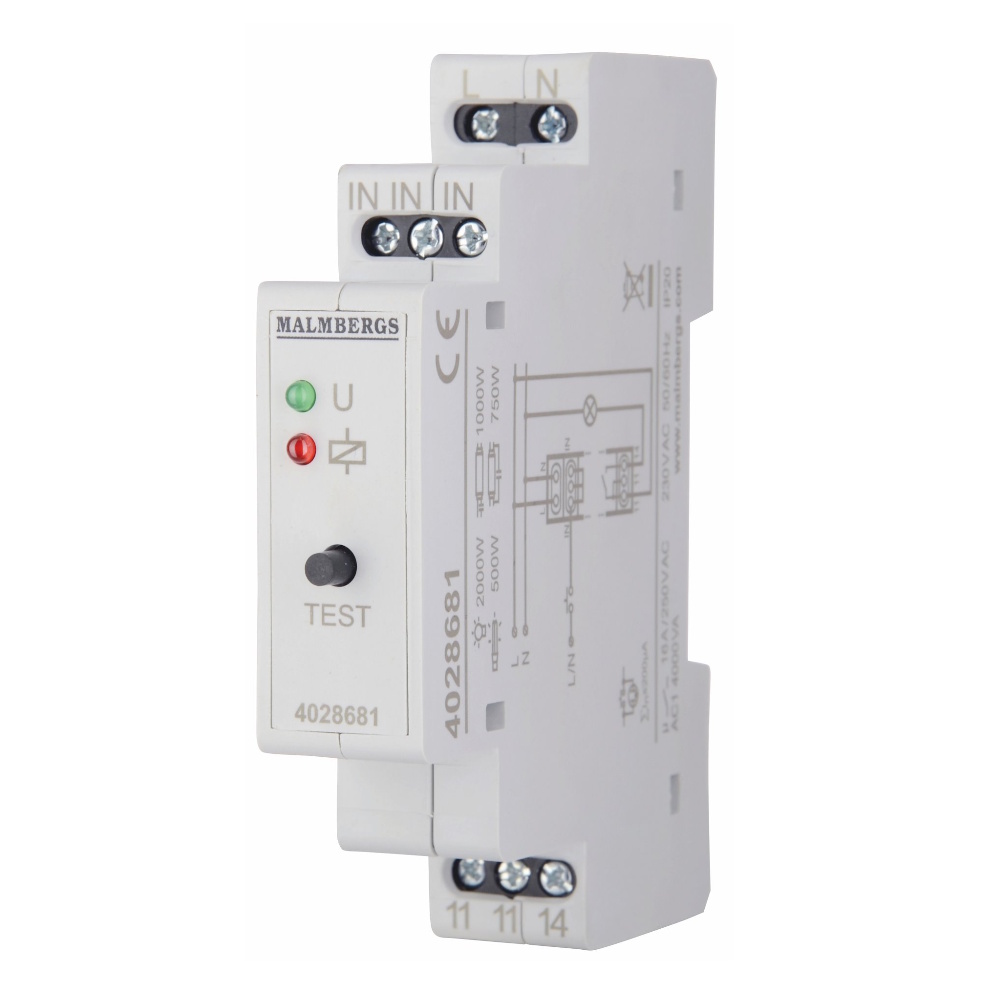

Impulse Relay 1-NO 16A 230V Malmbergs 4028681
Bistable impulse relay for control of, button for manual control on the front and LEDs for indicating position and supply voltage.
Watch this product and we will notify you once it is back in stock.
Impulse Relay 1-NO 16A 230V Malmbergs 4028681
Description
Bistable impulse relay for controlling, for example, lighting systems or switching equipment. Button for manual control on the front and LEDs for indicating position and supply voltage. Potential-free contacts. 3 connection terminals for control make it easier if several pushbuttons are to be used. Control is optionally with phase or neutral. Can handle fixed voltage on the control input. Also available in a version for time limitation of impulse length and with changeover contact function. The time limitation function can be set to automatic, on or off mode. Halogen-free.
Specifications
- Connection area: 0.2-2.5 mm²
- Number of modules: 1
- Breaking capacity: 16A (4000VA), 250V AC1
- Inner consumption: 24mA
- Electrical life: 100,000 times
- Contact function: 1 NO
- Operating voltage: 230V AC
- Max. power: Incandescent/halogen: 2000W, AC5b Compact fluorescent: 500W, AC5a Fluorescent, uncompensated: 1000W, AC5a Fluorescent, electronic ballast: 750W, AC5a. Max. 3 drivers. LED driver: 500W, AC5a. Max. 3 drivers.
- Mechanical life: 1,000,000 times
- Rated voltage: 230V AC, 50/60Hz
- Temperature range: -20 to +45°C
