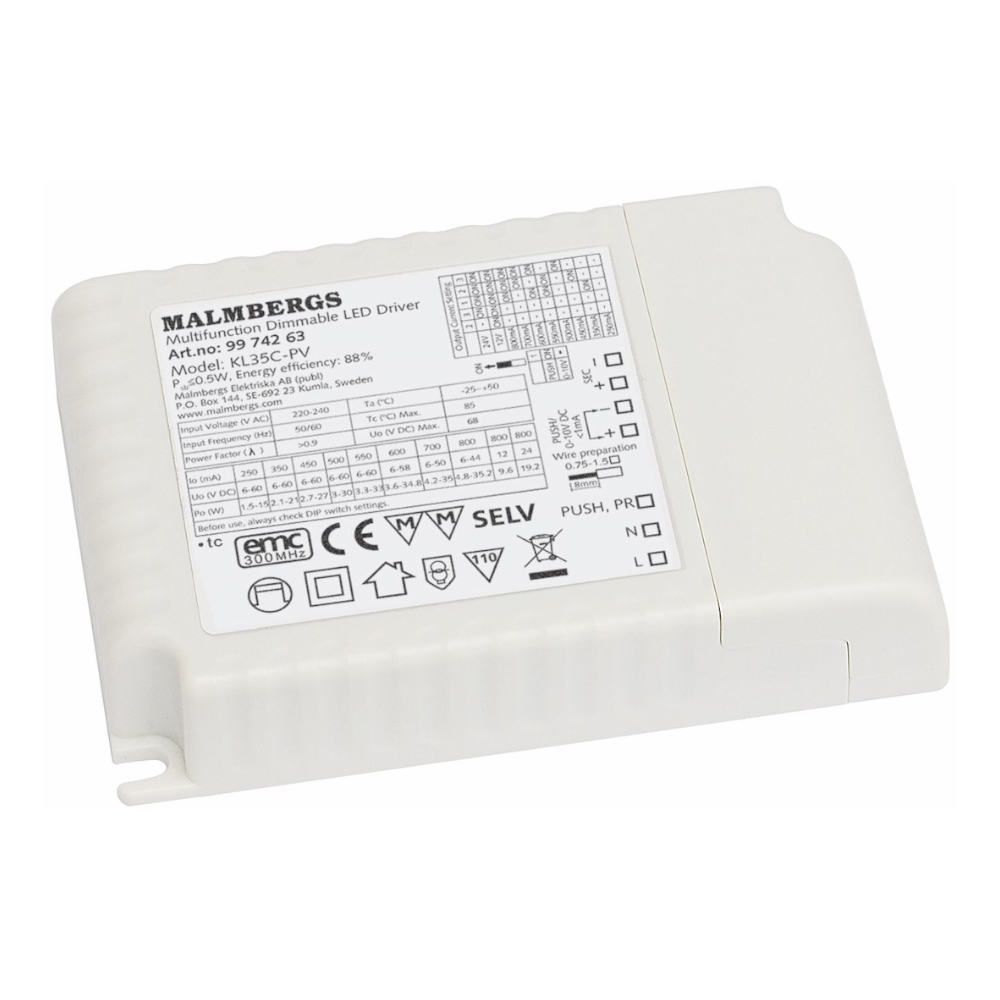

LED Driver Constant Current 220-240V IP20 Malmbergs 9974263
Dimbart LED driver, up to 15 drivers can be connected to the same push button switch, no sync cable needed between the drivers.
Watch this product and we will notify you once it is back in stock.
LED Driver Constant Current 220-240V IP20 Malmbergs 9974263
Description
Dimbart LED driver. Three choices of light control 0-100% - using spring-loaded push button switch on the primary side, 1-10V or spring-loaded push button switch on the secondary side. Up to 15 drivers can be connected to the same push button switch. No sync cable needed between the drivers.
- Flicker-free light over the entire dimming range
- Standby power below 0.5W
- Memory function
- Protection: short circuit/overheating/overvoltage
Possible settings
- Out DC 250mA / Power 1.5-15W / Out DC 6-60V
- Out DC 350mA / Power 2.1-21W / Out DC 6-60V
- Out DC 450mA / Power 2.7-27W / Out DC 6-60V
- Out DC 500mA / Power 3-30W / Out DC 6-60V
- Out DC 550mA / Power 3.3-33W / Out DC 6-60V
- Out DC 600mA / Power 3.6-34.8W / Out DC 6-58V
- Out DC 700mA / Power 4.2-35W / Out DC 6-50V
- Out DC 800mA / Power 4.8-35.2W / Out DC 6-44V
- Power 9.6W / Out DC 12V
- Power 19.2W / Out DC 24V
Specifications
- Dimmable: Yes
- Driver model: Constant current
- Frequency: 50/60Hz
- Protection class: IP20
- Control: ON/OFF
- Dimensions (LxWxH): 103x67x22 mm
- Voltage: 220-240V
