Light Relay With External Sensor 10A 230VAC Hager

Description

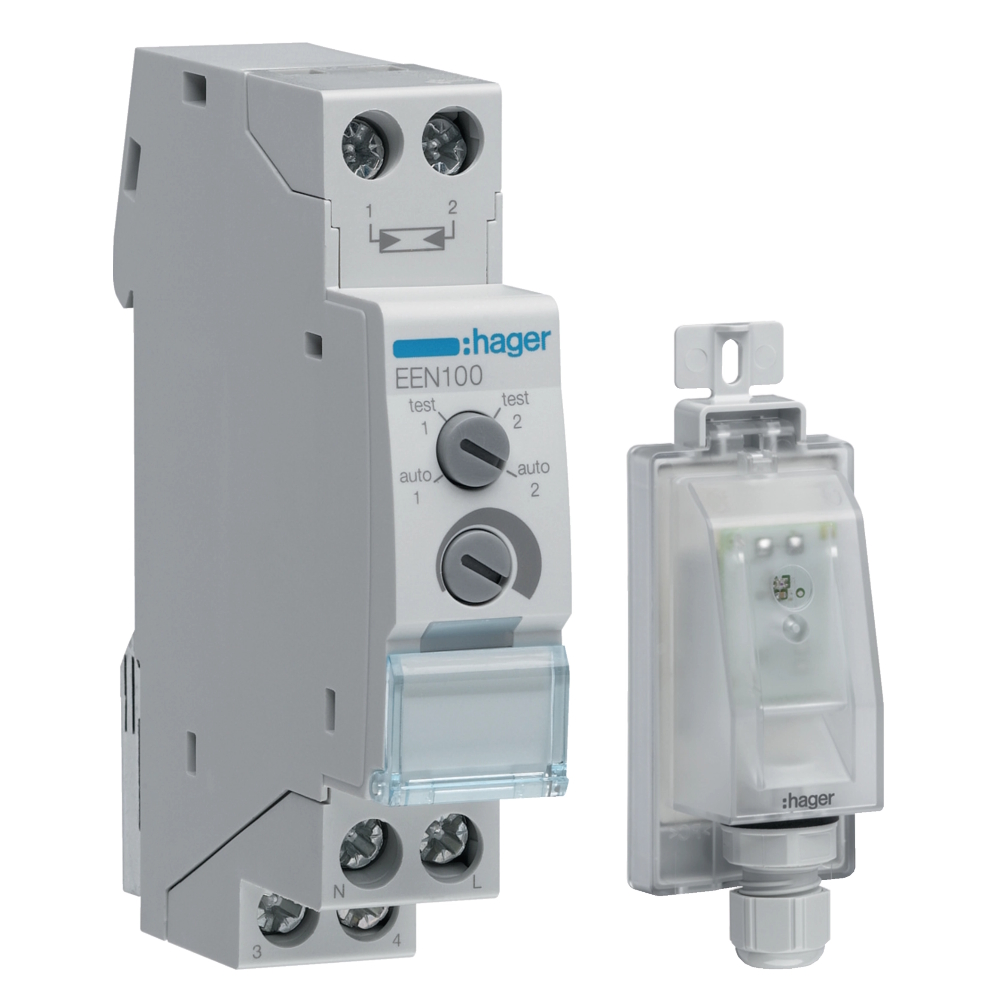

Light relay Hager EEN100 twilight switch for DIN rail mounting, supplied with an external light sensor (sensor) for measuring the light level outdoors. The device is used for automatic lighting control, where connected lighting is switched on or off depending on the current brightness. The light sensor registers the ambient light intensity and controls the relay, making the product ideal for outdoor lighting, e.g. facade lighting, parking lots and yard lighting.

Specifications

• Frequency: 50 - 60 Hz
• Rated operating voltage Ue: 230 - 230 V
• Rated voltage: 230 V
• Rated frequency: 50 - 60 Hz
• Switch-on delay: 60 s
• Operating temperature: -5 - +45 °C
• Storage/transport temperature: -25 - +70 °C
• Area flexible conductor: 1.5 - 6 mm²
• Area solid conductor: 1.5 - 6 mm²
• Number of modules: 1
• Width in number of module spaces: 1
• Design: For mounting on DIN rail, extension sensor for wall or ceiling mounting
• Mounting method: DIN rail
• Installation depth: 17.8 mm
• Connection type: With screw terminals
• Switching current: 10 A
• Nominal switching current: 10 A
• Max. switching current (cos φ = 0.6): 10 A
• Max. bulb load: 2300 W
• Max. fluorescent lamp load: 1000 VA
• Max. fluorescent lamp load in Duo connection: 1000 VA
• Max. fluorescent lamp load parallel compensated: 1000 VA
• Brightness value setting range: 5 - 2000 lx
• Protection class (IP): IP20
• Protection class (IP) light sensor: IP55
• Protection class light sensor: II
• Rated voltage light sensor: 230 V
• Max. conductor length light sensor: 100 m
• Height: 83 mm
• Width: 17.80 mm
• Depth: 65 mm
