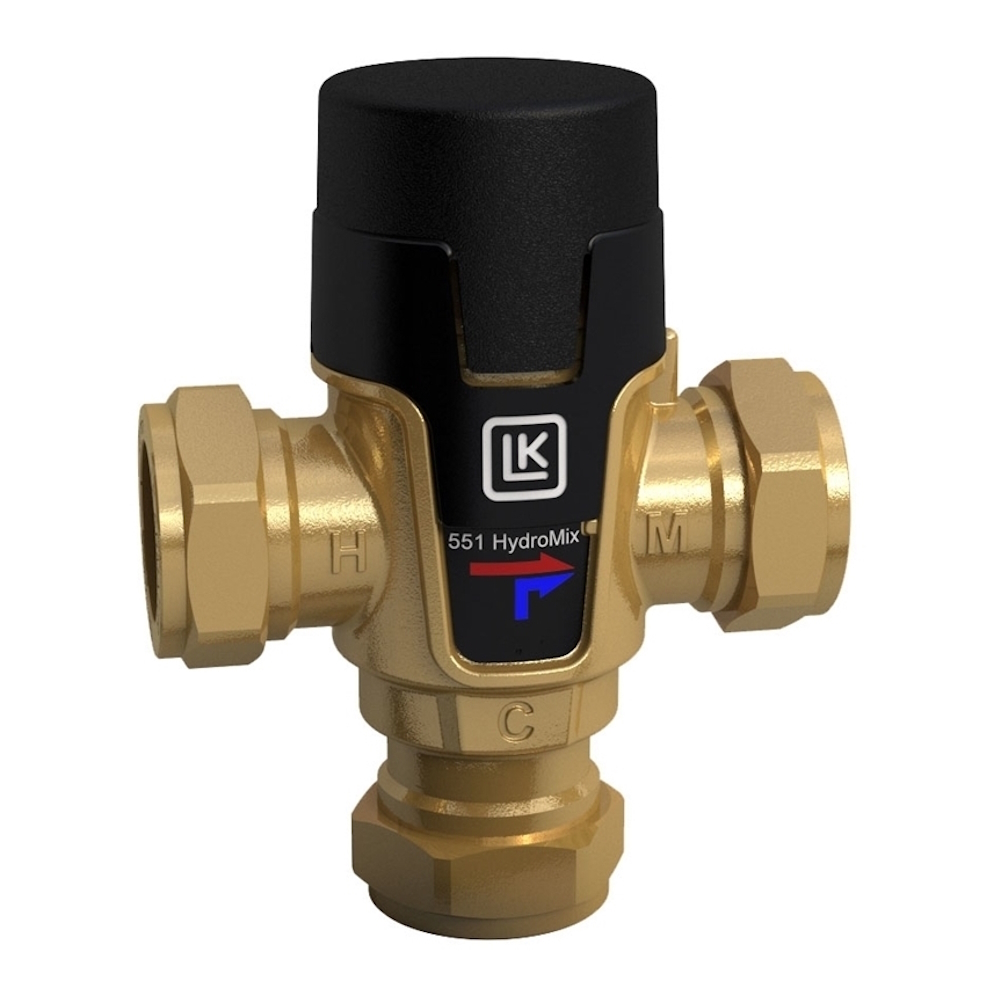

LK 551 HydroMix Mixing Valve 22mm Clamping Connection

LK 551 HydroMix is ​​a mixing valve for hot water preparation, the valve has a thermal insert that regulates the supply of both cold and hot water.

LK 551 HydroMix Mixing Valve 22mm Clamping Connection

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK 551 HydroMix Mixing Valve 22mm Clamping Connection

LK 551 HydroMix is ​​a mixing valve for hot water preparation, the valve has a thermal insert that regulates the supply of both cold and hot water.

Description

LK 551 HydroMix is a mixing valve for hot water preparation. The valve has a thermal insert that regulates the supply of both cold and hot water so that the desired temperature is reached. The valve has scalding protection that closes off the incoming hot water if the cold water supply should cease.

  • Comfort and safety in one
  • Built-in scalding protection
  • Maintenance-free

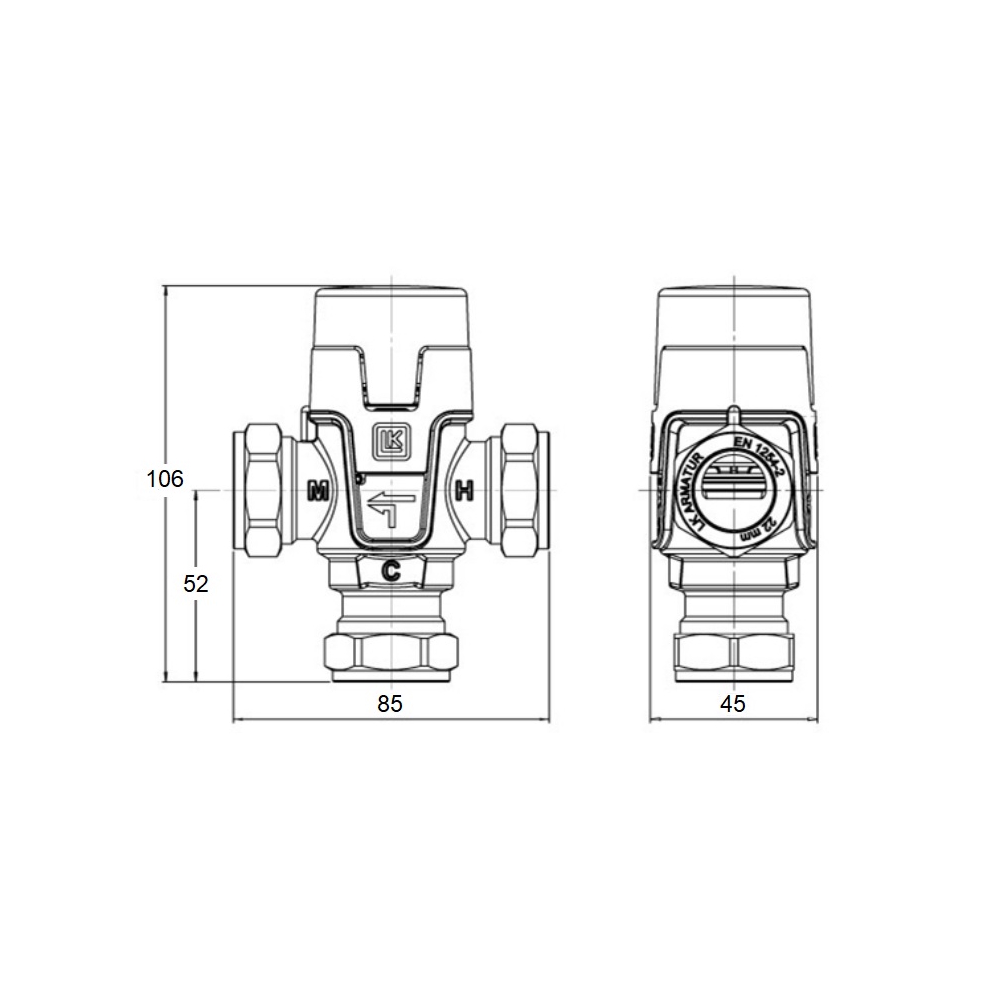

Arrows on the valve body indicate the flow direction.

  • C = incoming cold water
  • H = incoming hot water
  • M = outgoing hot water

Specifications

  • Dimension: 22mm
  • Working temperature: Min. +5°C/Max. +95°C
  • Mixing temperature: Min. +35°C/Max. +65°C
  • Max. working pressure: 1.0 MPa (10 bar)
  • Kvs: 1.6m³/h
  • Version: With compression ring coupling
  • Colour: Brass
  • Material: Brass/multi-material
  • Model/Version: Surface-mounted
  • Connection inlet: Compression ring
  • Connection dimension inlet: 22mm
  • Connection outlet to tap points: Compression connection
  • Dimension outlet tap points: 22mm
  • With couplings: Yes
  • Couplings can be shut off: No
  • With shut-off valve: Yes
  • With filter: No
  • With mounting eyelet for front wall installation: No
  • Extension kit available: No
  • Thermostatic: Yes
  • Adjustable temperature range domestic hot water: 35 - 65 °C
  • With temperature limitation: Yes
