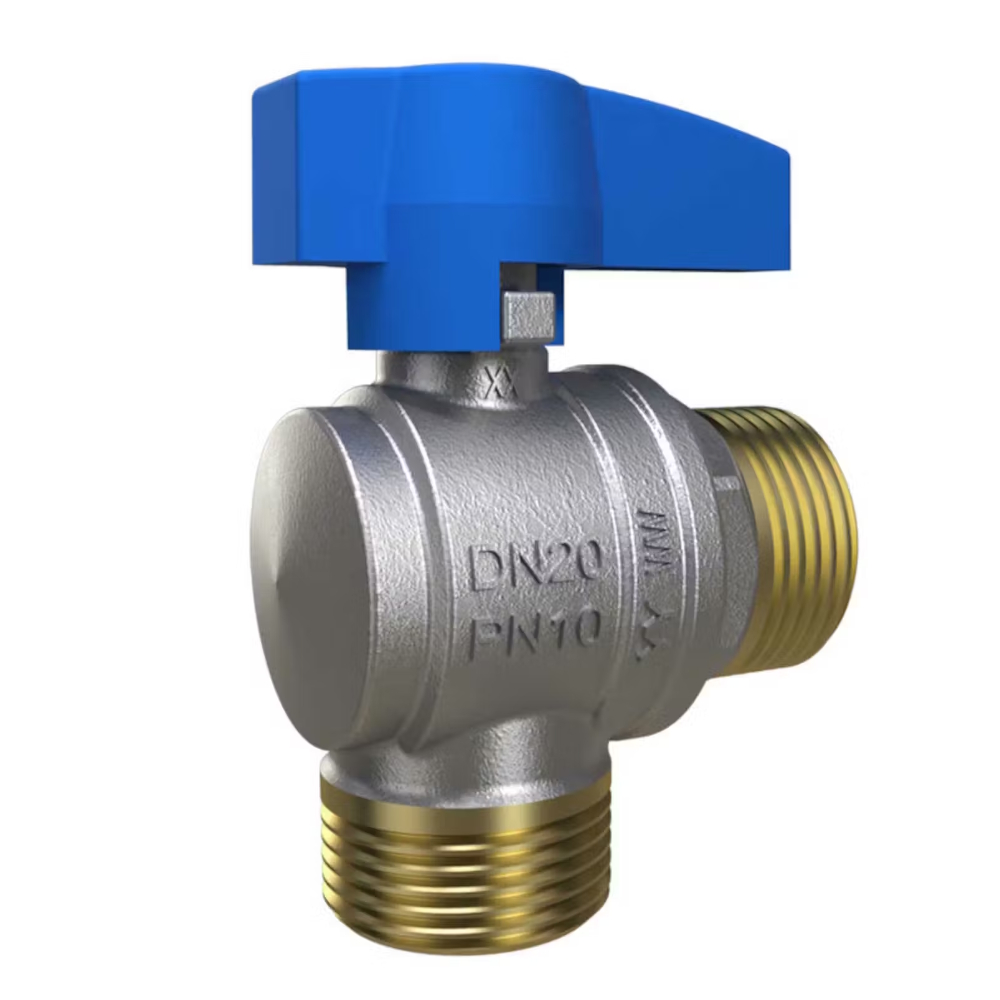

LK Ball Valve 704 Angle G20 External Blue Knob
Shut-off valve in dezincification-resistant brass with two G20 external EuroCone threads for use with UNI manifolds.
Watch this product and we will notify you once it is back in stock.
LK Ball Valve 704 Angle G20 External Blue Knob
Description
Shut-off valve in dezincification-resistant brass with two G20 external EuroCone threads for use with UNI manifolds. Can be easily supplemented with LK PressPex Press connection coupling or LK Connection coupling. And can be connected to LK PressPex T-coupling with internal play nut on the branch.
Specifications

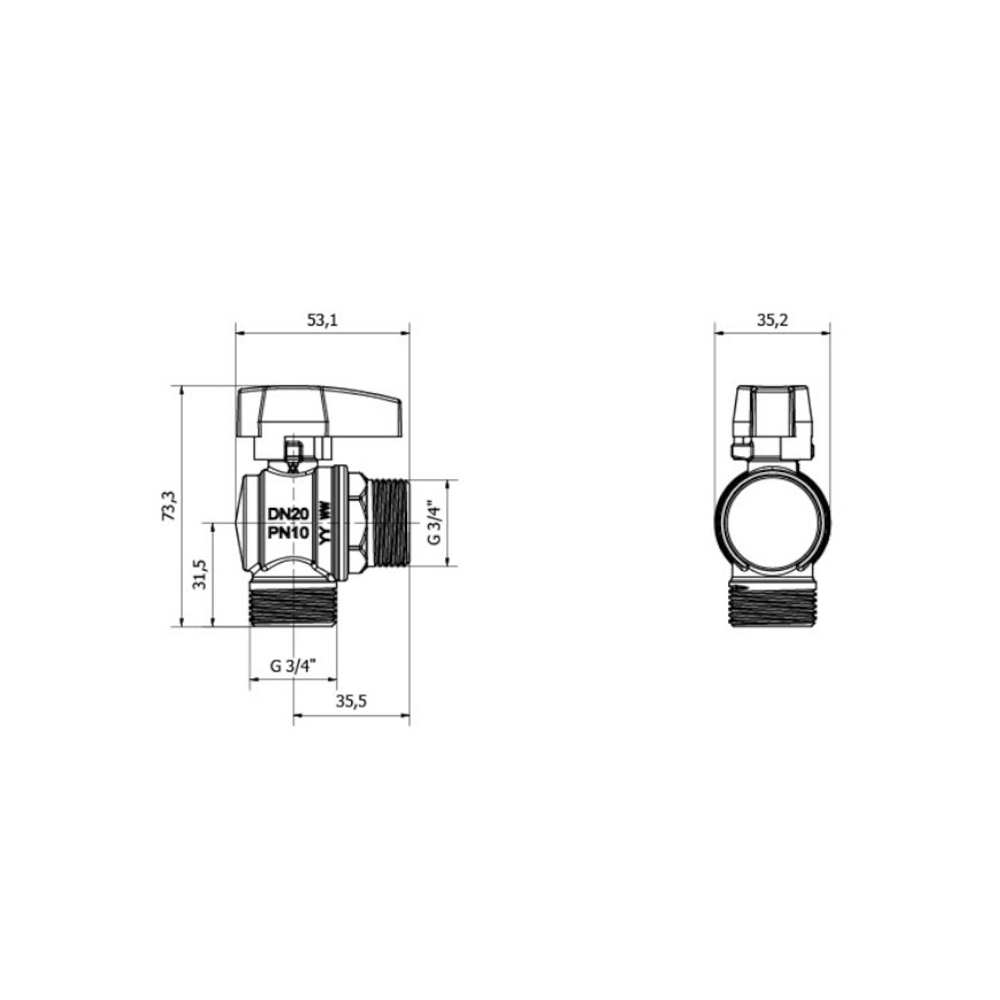

- Dimension: GE20 x GE20 (EuroCone)
- Function: blue knob
- Version: angle GE20 x GE20
- Color: blue/nickel
- Surface treatment: nickel-plated
- Material: AZH brass
- Material housing/enclosure/frame: Brass
- Surface protection housing/enclosure/frame: Nickel-plated
- Material ball seal: PTFE (polytetrafluoroethylene)
- Material ball: Brass
- Material spindle: Brass
- Dimension connection 1: Conn. 20 (3/4")
- Connection 1: External thread G, cylindrical (ISO 228-1)
- Connection dimension 2: Port. 20 (3/4")
- Connection 2: External thread G, cylindrical (ISO 228-1)
- Pressure class: PN 10
- With drain valve: No
- With drain option: No
- With check valve: No
- With filter: No
- With thermometer: No
- Model/Version: Right angle
- With insulating shell: No
- Max. differential pressure at 20°C: 10 bar
- Media temperature (continuous): -20 - 70 °C
- Medically clean: No
- Grease-free: No
- Operation: Knob
