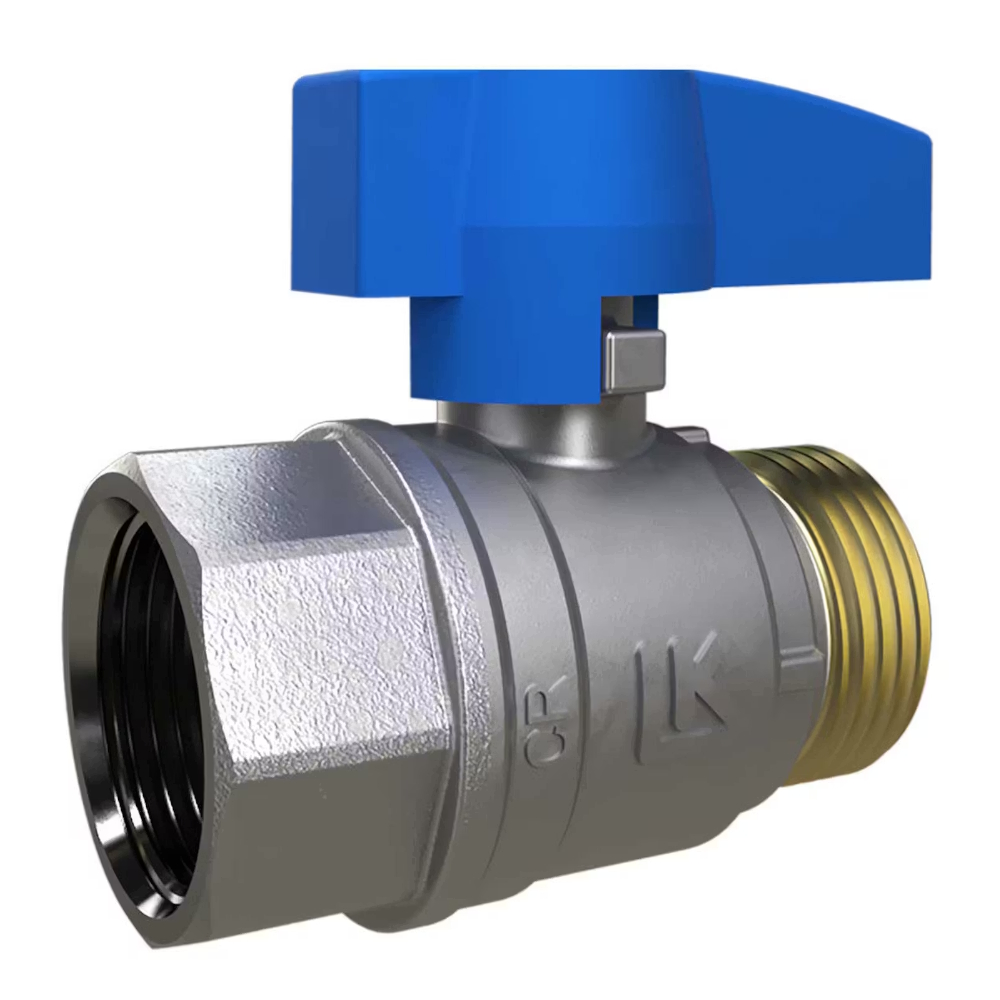

LK Ball Valve 801 Straight G20 Internal/External Blue Knob
Shut-off valve in dezincification-resistant brass with G20 external EuroCone thread and internal for connection to distributor UNI.
Watch this product and we will notify you once it is back in stock.
LK Ball Valve 801 Straight G20 Internal/External Blue Knob
Description
Shut-off valve in dezincification-resistant brass with G20 external EuroCone thread and internal for connection to distributor UNI. Can be easily supplemented with LK PressPex Press connection coupling or LK Connection coupling. Can be mounted against the o-ring seal on the external G20 side of LK Distributor UNI which facilitates assembly of valve and distributor without additional sealing.
Specifications
- Dimension: GE20 (EuroCone)
- Function: blue knob
- Design: straight, internal x external thread
- Color: blue/nickel
- Surface treatment: nickel-plated
- Material: AZH brass
- Material housing/enclosure/body: Brass
- Material ball seal: PTFE (polytetrafluoroethylene)
- Material ball: Brass
- Material spindle: Brass
- Dimension connection 1: Port 20 (3/4")
- Connection 1: Internal thread G, cylindrical (ISO 228-1)
- Dimension connection 2: Port 20 (3/4")
- Connection 2: External thread G, cylindrical (ISO 228-1)
- Pressure class: PN 10
- With drain valve: No
- With drain option: No
- With check valve: No
- With filter: No
- With thermometer: No
- Model/Design: Straight
- With insulating shell: No
- Max. differential pressure at 20°C: 10 bar
- Media temperature (continuous): -20 - 70 °C
- Medical clean: No
- Grease-free: No
- Operation: Knob
