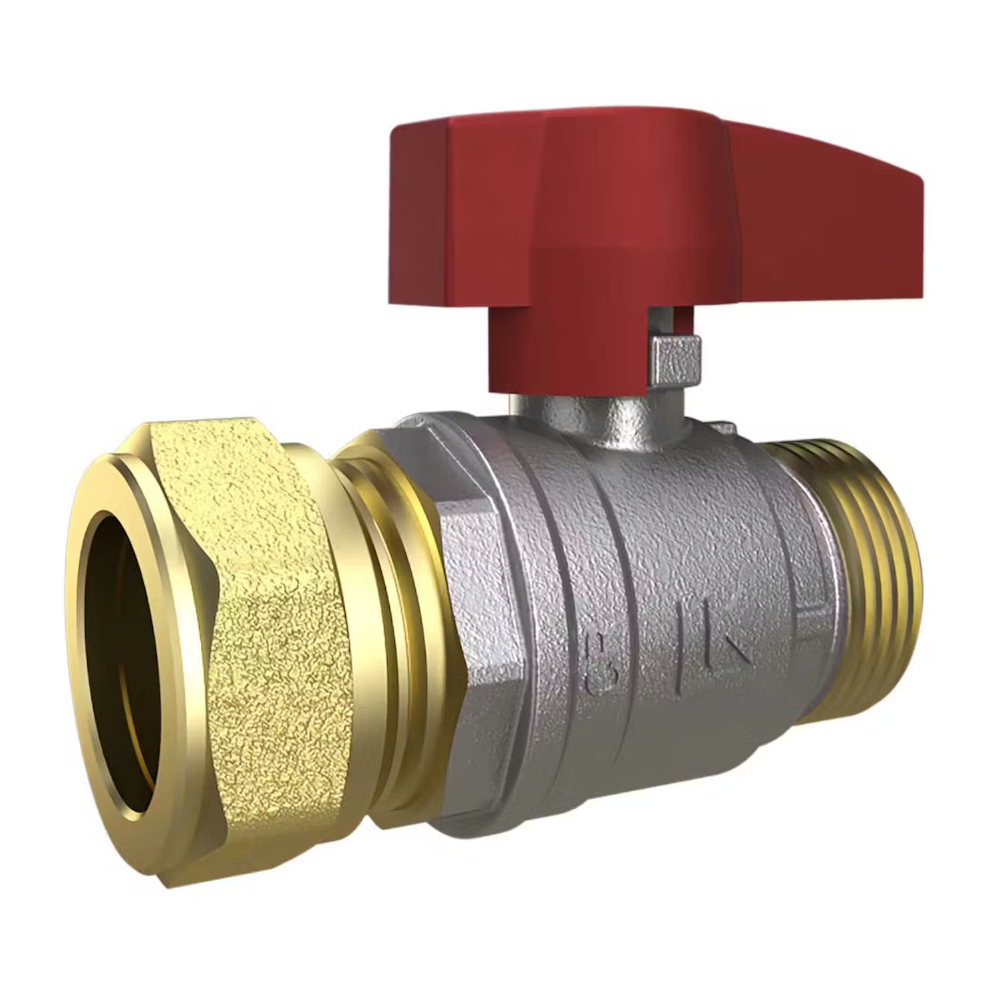

LK Ball Valve 802 Straight Cu22xG20 External Red Knob
Shut-off valve in dezincification-resistant brass with compression ring coupling for copper pipe 22mm and external G20 EuroCone.
Watch this product and we will notify you once it is back in stock.
LK Ball Valve 802 Straight Cu22xG20 External Red Knob
Description
Shut-off valve in dezincification-resistant brass with compression ring coupling for copper pipe 22mm and external G20 EuroCone. External G20 can be easily supplemented with LK PressPex Press connection coupling or LK Connection coupling.
Specifications

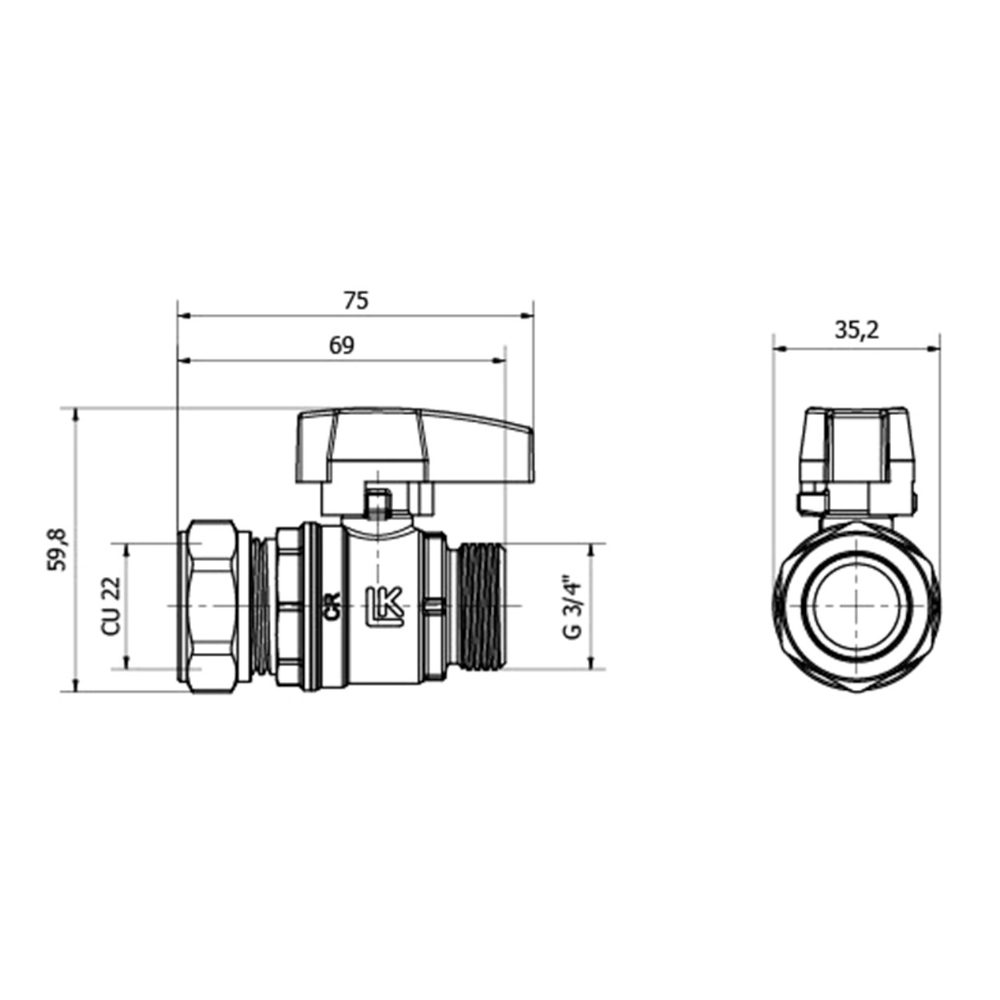

- Dimension: Cu22xG20 External (EuroCone)
- Function: red knob
- Design: straight Cu22 x G20 external thread
- Color: red/nickel
- Material: AZH brass
- Material housing/enclosure/frame: Brass
- Material ball seal: PTFE (polytetrafluoroethylene)
- Material ball: Brass
- Material spindle: Brass
- Outer pipe diameter connection 1: 22 mm
- Connection 1: Clamping ring
- With coupling connection 1: Yes
- Dimension connection 2: Conn. 20 (3/4")
- Connection 2: External thread G, cylindrical (ISO 228-1)
- Pressure class: PN 10
- With drain valve: No
- With drain option: No
- With non-return valve: No
- With filter: No
- With thermometer: No
- With insulating shell: No
- Max. differential pressure at 20°C: 10 bar
- Media temperature (continuous): -20 - 70 °C
- Medically clean: No
- Grease-free: No
- Operation: Knob
