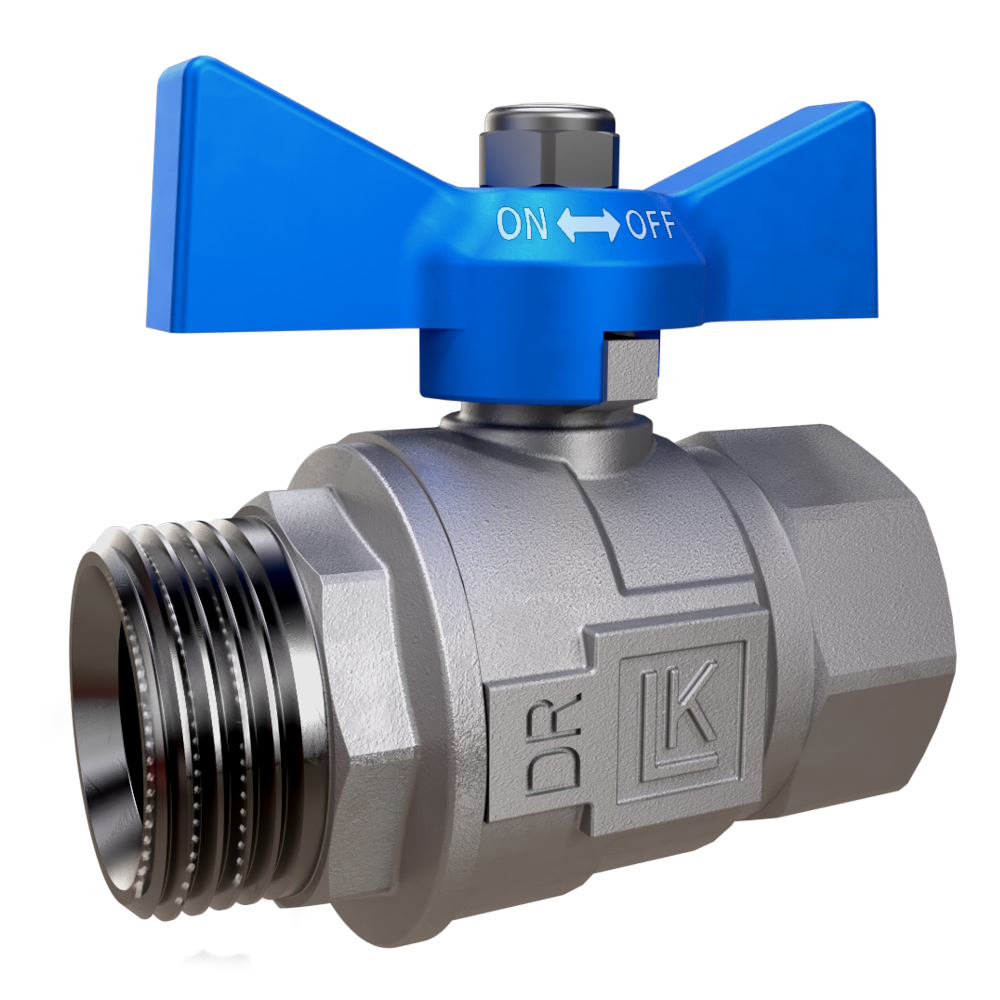

LK Ball Valve 821 Eco Straight G20 Blue Knob

Description

Shut-off valve in lead-free dezincification-resistant brass with G20 external EuroCone thread and internal for connection to distributor UNI. Can be easily supplemented with LK PressPex Press connection coupling or LK Connection coupling. Can be mounted against the o-ring seal on the external G20 side of LK Distributor UNI, which facilitates assembly of valve and distributor without additional sealing.

• Lead-free dezincification-resistant brass
• Can be connected to LK Manifold with O-ring and lock nut
• EuroCone for connection to e.g. press connection coupling

Specifications

• Dimension: G20 Internal/External EuroCone
• Size: G20
• Pressure/Flow/Temp: PN16
• Function: shut-off valve
• Design: blue knob
• Color: nickel
• Surface treatment: nickel-plated
• Material: lead-free CR brass
• Standard: EN13828
• Other info: CW511L (Pb < 0.1%)
• Material housing/enclosure/frame: Brass
• Material quality: Brass CuZn38As (CW511L)
• Surface protection housing/enclosure/frame: Nickel-plated
• Material ball seal: PTFE (polytetrafluoroethylene)
• Material ball: Stainless steel
• Material spindle: Stainless steel
• Material spindle seal, primary: EPDM (ethylene propylene rubber)
• Material stem seal, secondary: EPDM (ethylene propylene rubber)
• Connection size 1: Connection 20 (3/4")
• Connection 1: External thread G, cylindrical (ISO 228-1)
• With coupling connection 1: No
• Connection size 2: Connection 20 (3/4")
• Connection 2: Internal thread G, cylindrical (ISO 228-1)
• Pressure class: PN 16
• Model/Version: Straight
• Full bore: Yes
