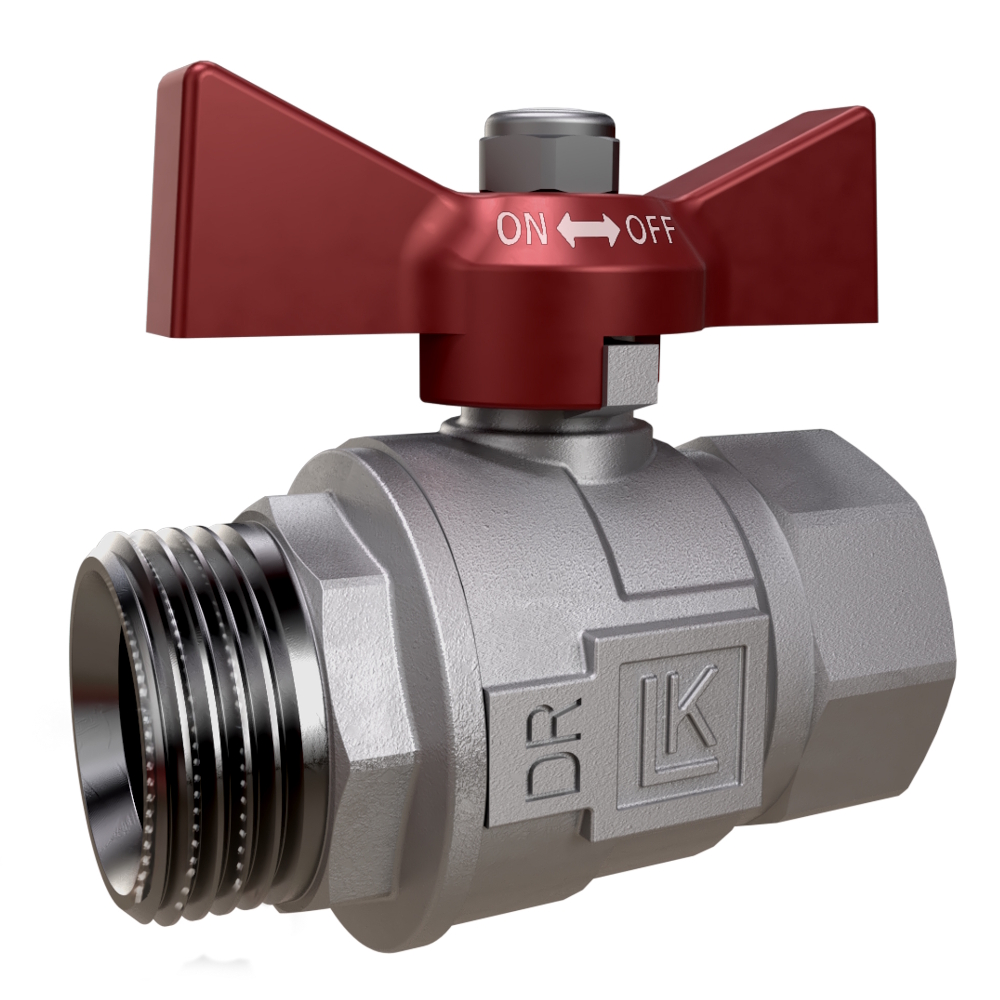

LK Ball Valve 821 Eco Straight G20 Red Knob

Description

Shut-off valve in lead-free dezincification-resistant brass with G20 thread external EuroCone and internal for connection to distributor UNI. Can be easily supplemented with LK PressPex Press connection coupling or LK Connection coupling. Can be mounted against the o-ring seal on the external G20 side of LK Distributor UNI which facilitates assembly of valve and distributor without additional sealing.

• Lead-free dezincification-resistant brass
• Can be connected to LK Manifold with O-ring and lock nut
• EuroCone for connection to e.g. press connection coupling

Specifications

• Dimension: G20 Internal/External EuroCone
• Size: G20
• Pressure/Flow/Temp: PN16
• Function: shut-off valve
• Design: red knob
• Color: nickel
• Surface treatment: nickel-plated
• Material: lead-free CR brass
• Standard: EN13828
• Other info: CW511L (Pb < 0.1%)
• Material housing/enclosure/frame: Brass
• Material quality: Brass CuZn38As (CW511L)
• Material ball seal: PTFE (polytetrafluoroethylene)
• Material ball: Stainless steel
• Material spindle: Stainless steel
• Material spindle seal, primary: EPDM (ethylene propylene rubber)
• Material spindle seal, secondary: EPDM (ethylene propylene rubber)
• Dimension connection 1: Port 20 (3/4")
• Port 1: External thread G, cylindrical (ISO 228-1)
• Port 2 dimension: Port 20 (3/4")
• Port 2: Internal thread G, cylindrical (ISO 228-1)
• Full bore: Yes
