LK Ball Valve High Neck M70 Thread

Description

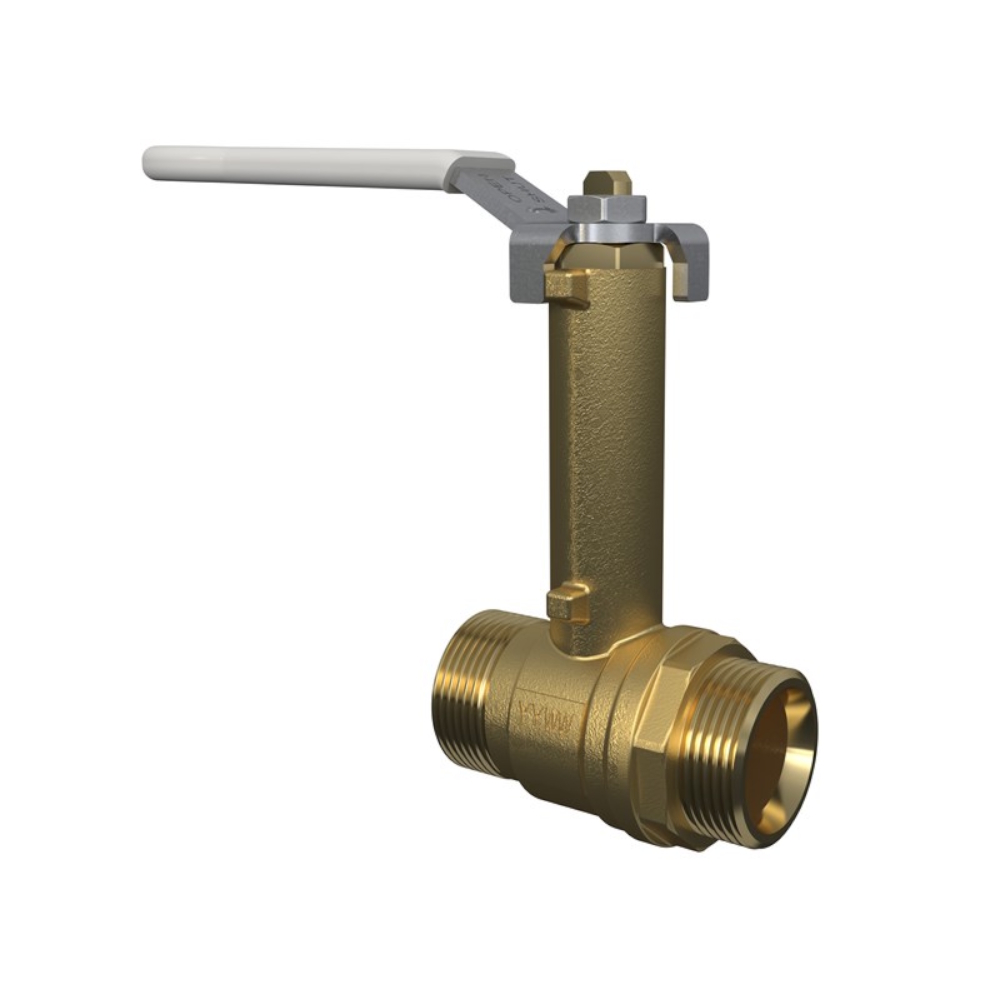

Ball valve in dezincification-resistant brass with high neck suitable for stems with insulation. Connects with metallic seal and external M-thread on LK PressPex Valve Coupling AX16-A75. All dimensions have yellow coupling body and white handle prepared with hole for marking plate.

Specifications

• Dimension: M70x2mm
• Pressure/Flow/Temp: PN16
• Function: tap water/heating
• Version: M-thread
• Colour: brass, white knob
• Material: AZH brass
• Material quality: Dezincification resistant brass (DZR)
• Material ball seal: PTFE (polytetrafluoroethylene)
• Material ball: Stainless steel
• Material spindle: Brass
• Material spindle seal, primary: FPM/FKM (fluororubber)
• Material spindle seal, secondary: FPM/FKM (fluororubber)
• Dimension connection 1: DN 50
• Connection 1: External thread M, metric
• With connection 1 coupling: No
• Dimension connection 2: DN 50
• Connection 2: External thread M, metric
• With connection 2 coupling: No
• Sealing: Metal sealing
• Pressure class: PN 16
• With drain valve: No
• With drain option: No
• Model/Version: Straight
• FM Marked: No
• UL Marked: No
• ULC Marked: No
• LPCB Marked: No
• Fireproof: No
• Max. differential pressure at 20°C: 30 bar
• Medically clean: No
• Grease-free: Yes
• Operation: Handle/Lever
• Housing construction: 2-piece
• Full bore: Yes

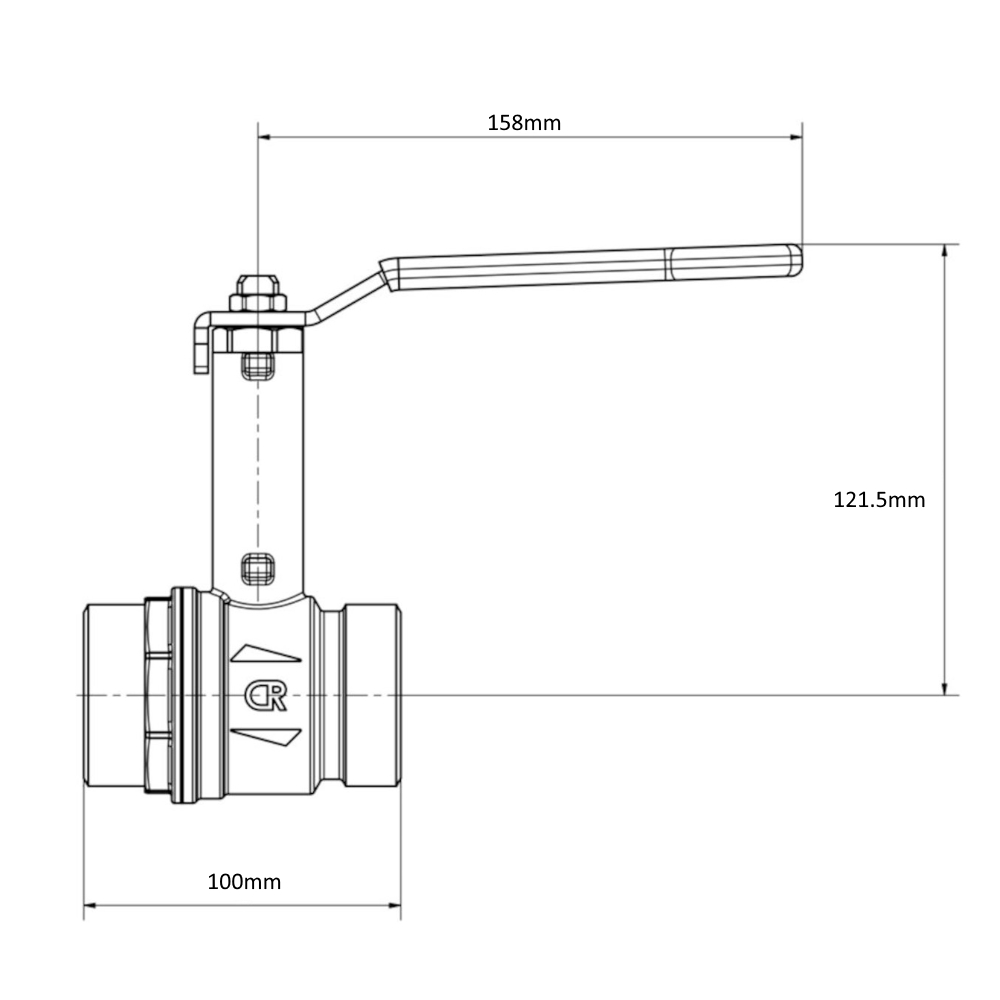

• Handle height: 137 mm
• Handle length: 158 mm
