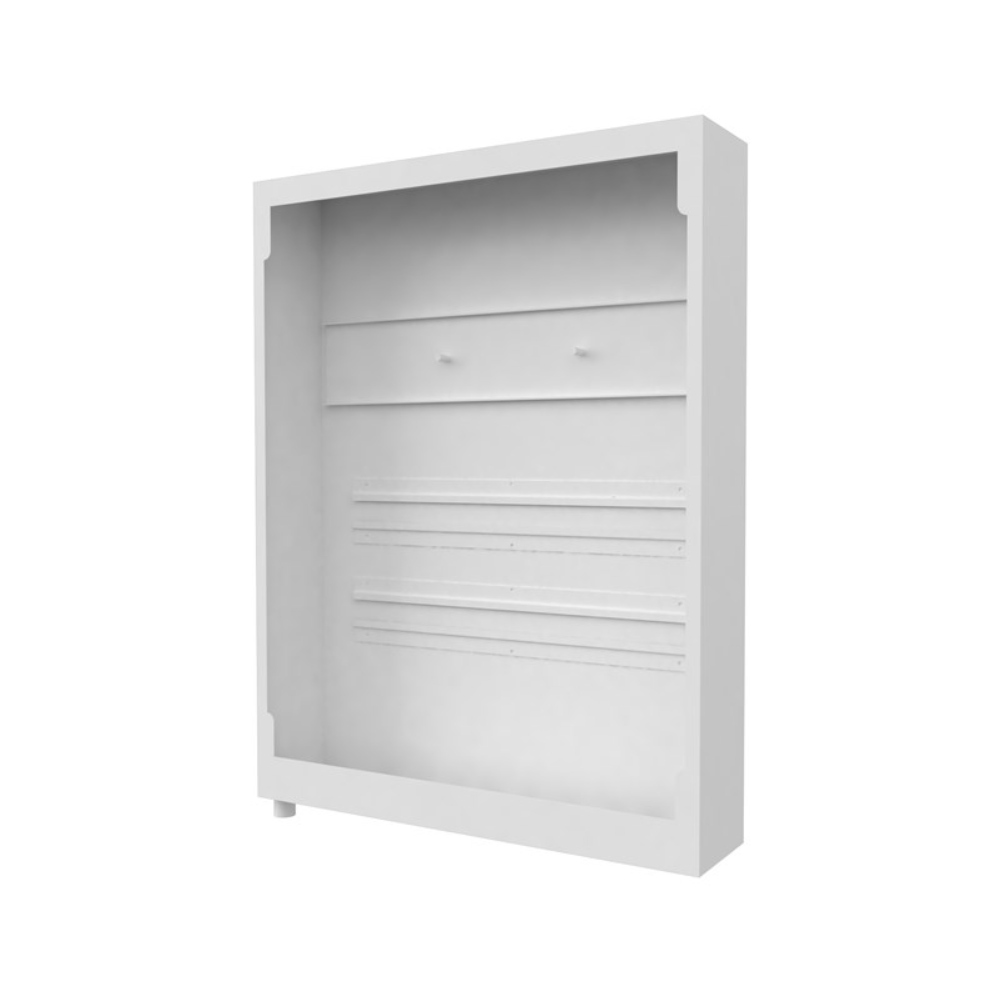

LK Distribution Cabinet VM 710x550x120mm White

Distribution cabinet VM for mounting LK Water Meter Console, in the cabinet there are two M8 bolts that the water meter console should be mounted on.

LK Distribution Cabinet VM 710x550x120mm White

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK Distribution Cabinet VM 710x550x120mm White

Distribution cabinet VM for mounting LK Water Meter Console, in the cabinet there are two M8 bolts that the water meter console should be mounted on.

Description

LK Distribution Cabinet VM for mounting LK Water Meter Console. In the cabinet there are two M8 bolts that the water meter console should be mounted on. Complete with washer and nut. Made of powder-coated steel sheet, white color RAL 9016 and has a waterproof bottom with a 50 mm high front edge. This cabinet also has space for distributing cold and hot water. The consoles for the distribution pipes are included in the cabinet.

LK Drainage Bend V2 complete is included for the leak indication from the wall. Protective bag to put over the cabinet during construction is included.

  • 1 pc Pipe penetration 50 LP and 1 pc Pipe penetration 25-40 LP are included, but the cabinet is supplemented with the required number of cabinet penetrations, separate item:
  • Pipe dim. 12-16-20 use LK Pipe penetration 12-20 LP.
  • Pipe dim. 20-25 use LK Pipe penetration 20-25 LP.
  • Pipe and empty pipe dim. 25 use LK Pipe penetration 25 LP.
  • Pipe and empty pipe dim. 32-34 use LK Pipe penetration 32-34 LP.
  • Empty pipe dim. 44 mm use LK Pipe penetration 32 RiR LP.

Also available as a prefabricated cabinet: LK Water Meter Cabinet 8/6 (1882305, 1882306).

Specifications

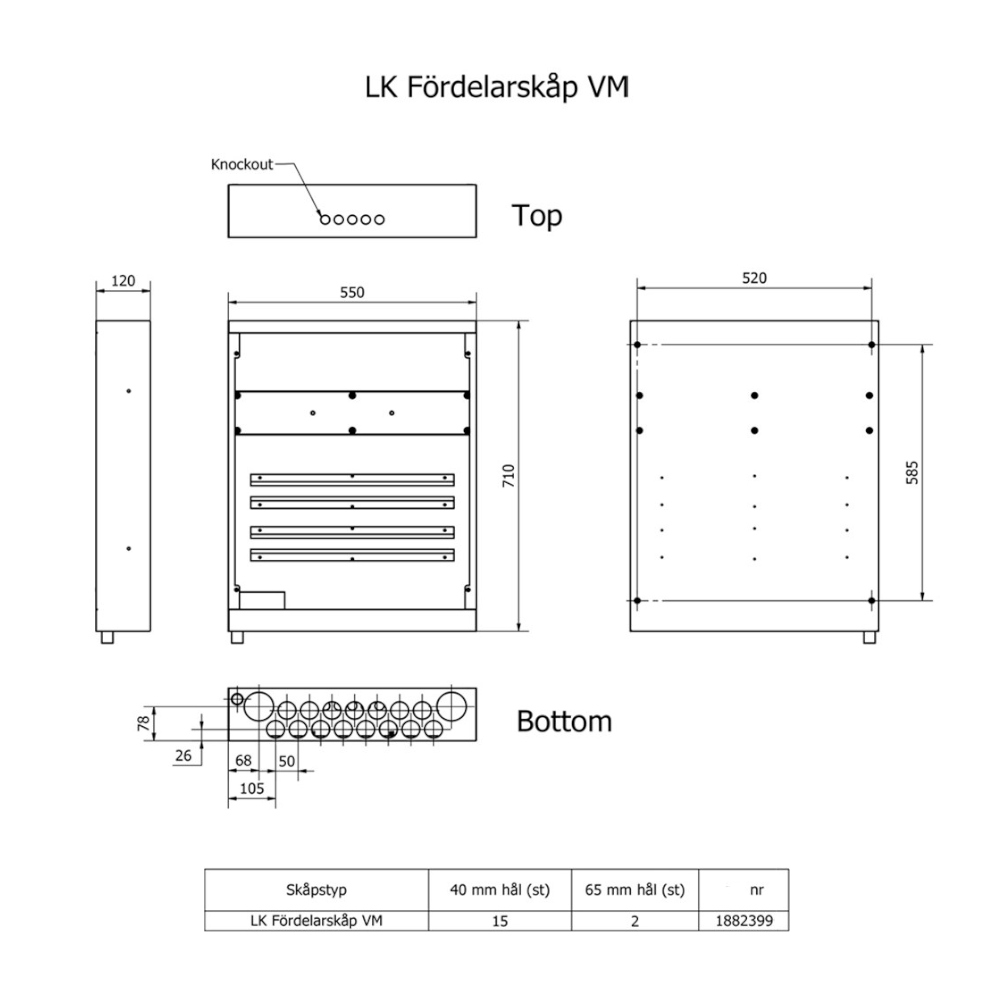

  • Size (HxWxD): 710x550x120mm
  • Function: For LK Water Meter Console
  • Version: With waterproof bottom
  • Color: White RAL9016
  • Surface treatment: Powder coated
  • Material: Steel sheet
  • Material housing/enclosure/frame: Steel
  • Surface protection housing/enclosure/frame: Painted
  • Color housing/enclosure/frame: White
  • RAL number housing/enclosure/frame: 9016
  • With frame for door: No
  • Adapted for connection to waterproofing: No
  • With waterproof bottom: Yes
  • With pipe penetration seal: Yes
  • With splash guard: Yes
  • With brackets for distributor: Yes
  • With outlet for leakage indication: Yes
  • Suitable for built-in/recessed mounting: Yes
  • Suitable for surface mounting: Yes
  • Open holes top: Yes
  • Number of holes top: 5
  • Open holes side: No
  • Number bottom holes: 17
  • With pre-assembled distributor: No
