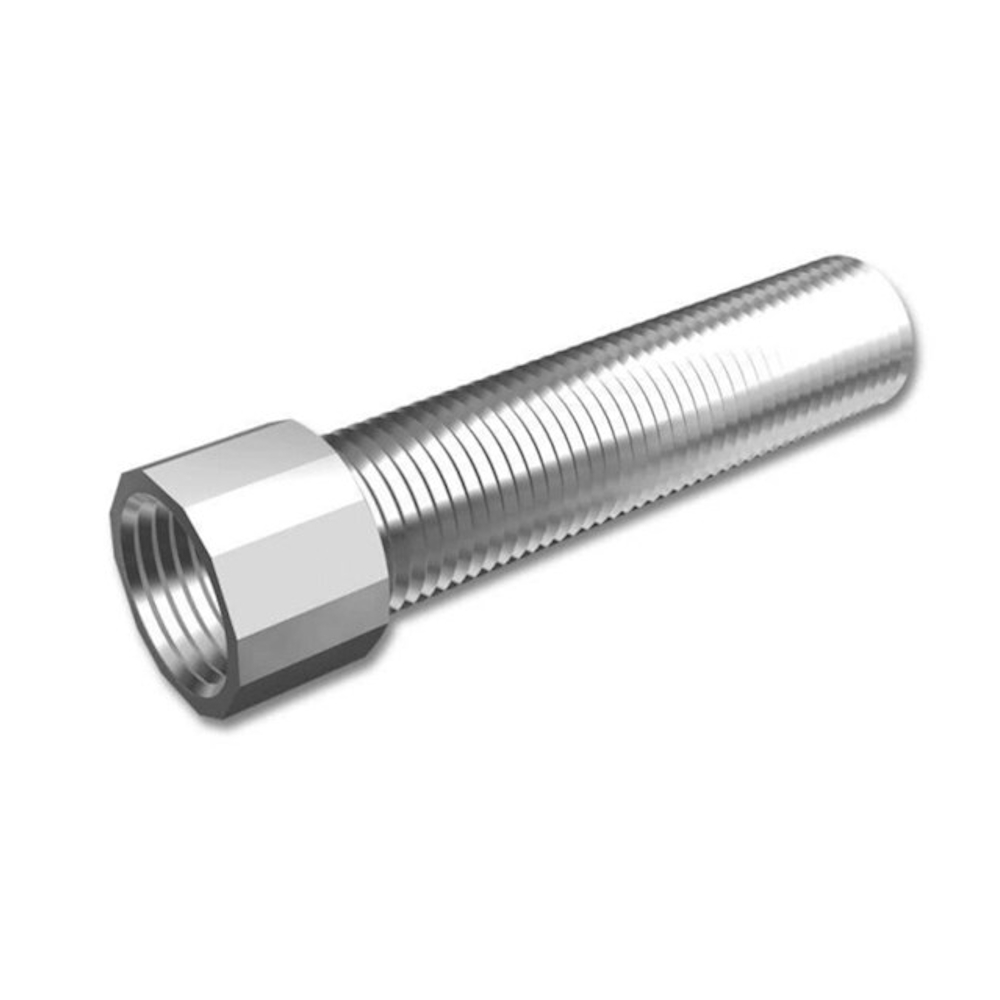

LK Extension Pipe G15 80mm

Description

For extending LK Connection Fittings to e.g. cast-in-place concrete walls. LK Extension Pipe extends the G15 thread by 86 mm. Total length 110 mm.

Specifications

• Dimension: G15 x G15
• Size: L = 80 mm
• Design: Straight, internal x external thread
• Color: Chrome
• Surface treatment: Chrome-plated
• Material: Brass
• Material connection 1: Brass
• Material quality connection 1: Dezincification-resistant brass (DZR)
• Surface protection connection 1: Chrome-plated
• Surface treatment connection 1: Untreated
• Material connection 2: Brass
• Material quality connection 2: Dezincification-resistant brass (DZR)
• Surface protection connection 2: Chrome-plated
• Surface treatment connection 2: Untreated
• Shape: Straight
• Model/Design: 1-piece
• Reduction: No
• Eccentric: No
• System-bound: Yes
• Dimension connection 1: Conn. 15 (1/2")
• Connection 1: External thread G, cylindrical (ISO 228-1)
• Connection dimension 2: Port. 15 (1/2")
• Connection 2: Internal thread G, cylindrical (ISO 228-1)
• Sealing material: Brass
• With internal stop edge: No
• Media temperature (continuous): 0–70 °C
• Max. operating pressure at 20 °C (PN): 10 bar
• With gaskets: No
• With protective cap/plug: No
• With drain valve: No
• With air vent/bleeder: No
• FM-marked: No
• LPCB-marked: No
• ULC-marked: No
• UL-marked: No
