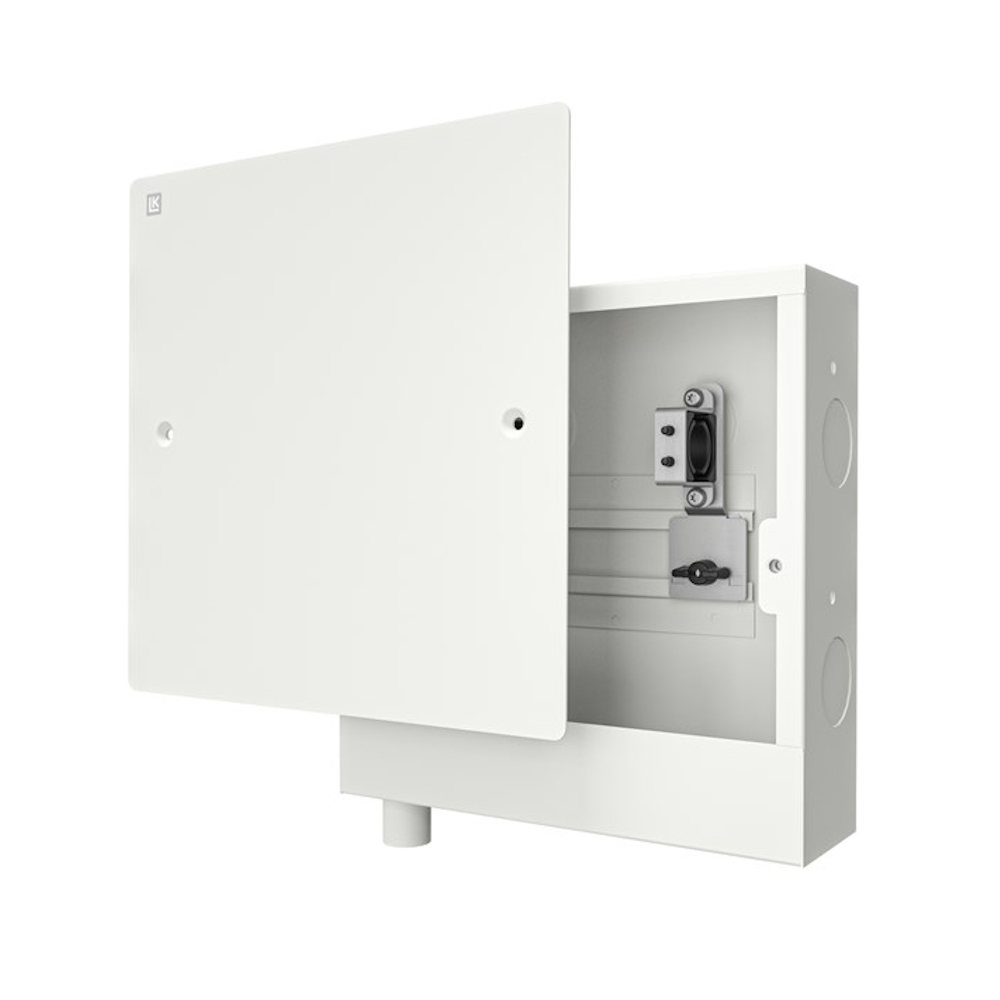

LK Junction Box UNI 250x250mm White

LK Junction Box is a compact junction box with space for four connections without group shut-off and three with group shut-off.

LK Junction Box UNI 250x250mm White

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK Junction Box UNI 250x250mm White

LK Junction Box is a compact junction box with space for four connections without group shut-off and three with group shut-off.

Description

LK Junction Box is a compact junction box with space for four connections without group shut-off and three with group shut-off. The box can also be used to join pipes in the wall. The box can also be used to connect a water ejector VUK with cold and hot water. The water ejector pipe is pulled through the back of the box where knockout holes are provided with grommets. There are four holes in the bottom of the box, as well as four knockout holes upwards and two knockout holes on both sides. Supplied complete with a door in white colour RAL9016. The box should not be installed with the door in rooms with a waterproof layer on the wall. The junction box can be placed in an external wall on the warm side. The box and the door are made of powder-coated sheet steel. The cabinet has a waterproof bottom with a 50 mm high front edge. LK Drainage Bend V2 complete is included for the leak indication from the wall.

The cabinet is supplemented with the required number of pipe penetrations, separate item:

  • Pipe 12-16-20 use LK Pipe penetration 12-20 LP
  • Pipe 20-25 use LK Pipe penetration 20-25 LP
  • Pipe and empty pipe 25 use LK Pipe penetration 25 LP
  • Pipe and empty pipe 32-34 use LK Pipe penetration 32-34 LP
  • Empty pipe 44 mm use LK Pipe penetration 32 RiR LP

Specifications

  • Size: 250x250x70 mm (WxHxD)
  • Function: For LK Uni distribution pipes
  • Design: With waterproof bottom
  • Color: White RAL9016
  • Material: Sheet steel
  • Material housing/enclosure/frame: Steel
  • Surface protection housing/enclosure/frame: Painted
  • Color housing/enclosure/frame: White
  • RAL number housing/enclosure/frame: 9016
  • With door: No
  • With watertight bottom: Yes
  • With pipe penetration seal: No
  • With splash guard: Yes
  • With brackets for distributor: Yes
  • With outlet for leakage indication: Yes
  • Suitable for built-in/recessed mounting: Yes
  • Suitable for surface mounting: Yes
  • Open holes top: No
  • Number of holes top: 4
  • Open holes side: No
  • Number of holes per side: 2
  • Open holes bottom: Yes
  • Number of holes bottom: 4
  • With pre-assembled distributor: No
