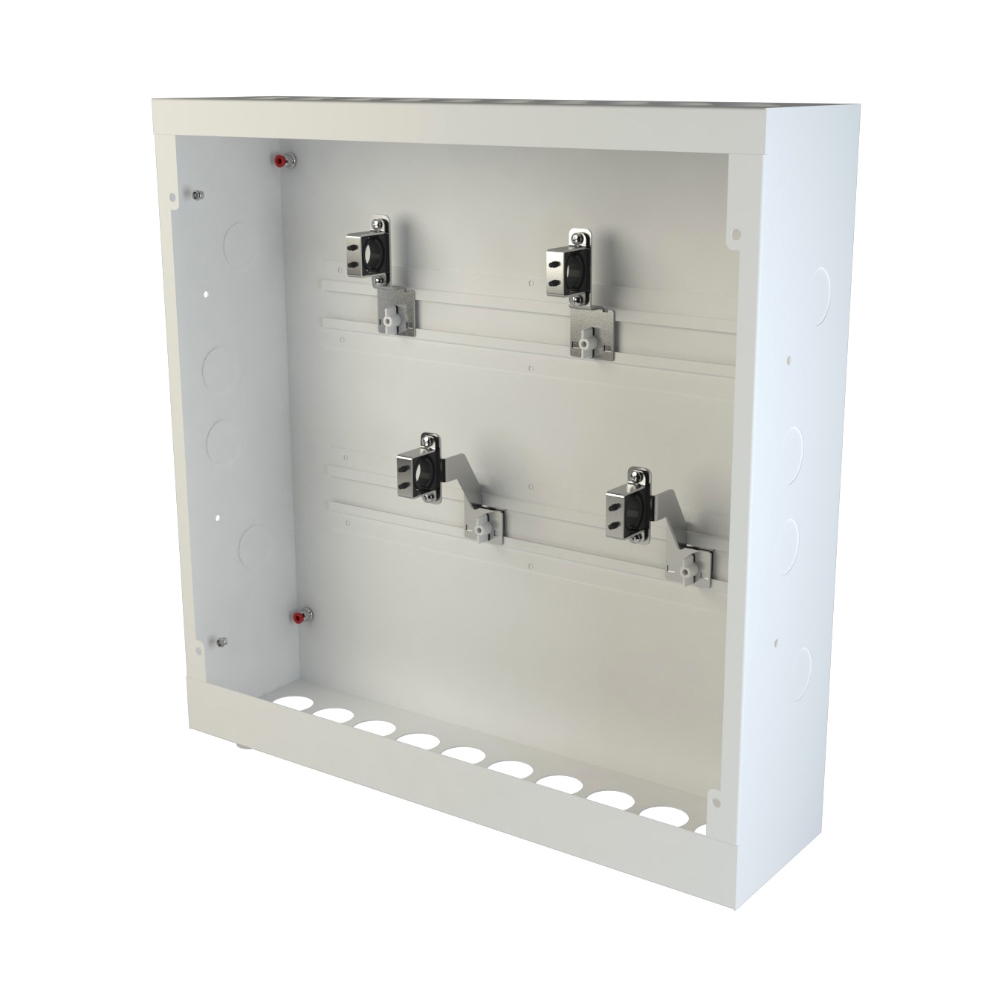

LK Manifold Cabinet UNI 550 XL 550x550x145mm White

The manifold cabinet UNI 550 XL provides more space for insulation of the trunks and is made of powder-coated steel sheet, white color RAL 9016.

LK Manifold Cabinet UNI 550 XL 550x550x145mm White

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK Manifold Cabinet UNI 550 XL 550x550x145mm White

The manifold cabinet UNI 550 XL provides more space for insulation of the trunks and is made of powder-coated steel sheet, white color RAL 9016.

Description

The LK Manifold Cabinet UNI 550 XL provides more space for insulation of the trunks and is made of powder-coated steel sheet, white color RAL 9016 and has a waterproof bottom with a 50mm high front edge. Type approved and tested according to SP method 5676. LK Drainage bend V2 complete is included for the leakage indication from the wall. Protective bag to put over the cabinet during construction is included.

The cabinet is supplemented with the required number of cabinet penetrations, separate article:

  • Pipe dimension 12-16-20 use LK Pipe penetration 12-20 LP.
  • Pipe size 20-25 use LK Pipe Grommet 20-25 LP.
  • Pipe and empty pipe size 25 use LK Pipe Grommet 25 LP.
  • Pipe and empty pipe size 32-34 use LK Pipe Grommet 32-34 LP.
  • Empty pipe size 44mm use LK Pipe Grommet 32 RiR LP.

NOTE! LK Base UNI is not adapted to these cabinets.

Specifications

  • Size (WxHxD): 550x550x145mm
  • Function: For LK Uni manifold
  • Design: With waterproof bottom
  • Color: White
  • Surface treatment: Powder coated
  • Material: Sheet steel
  • Material housing/enclosure/frame: Steel
  • Surface protection housing/enclosure/frame: Painted
  • Color housing/enclosure/frame: White
  • RAL number housing/enclosure/frame: 9016
  • With frame for door: No
  • With door: No
  • With waterproof bottom: Yes
  • With pipe penetration seal: No
  • With splash guard: Yes
  • With brackets for manifold: Yes
  • With outlet for leakage indication: Yes
  • Suitable for built-in/recessed mounting: Yes
  • Suitable for surface mounting: Yes
  • Open holes top: No
  • Number of holes top: 20
  • Open holes side: No
  • Number of holes per side: 4
  • Open holes bottom: Yes
  • Number of holes bottom: 20
  • With pre-assembled distributor: No
