LK Manifold Cabinet UNI VP 400x350x70mm

Description

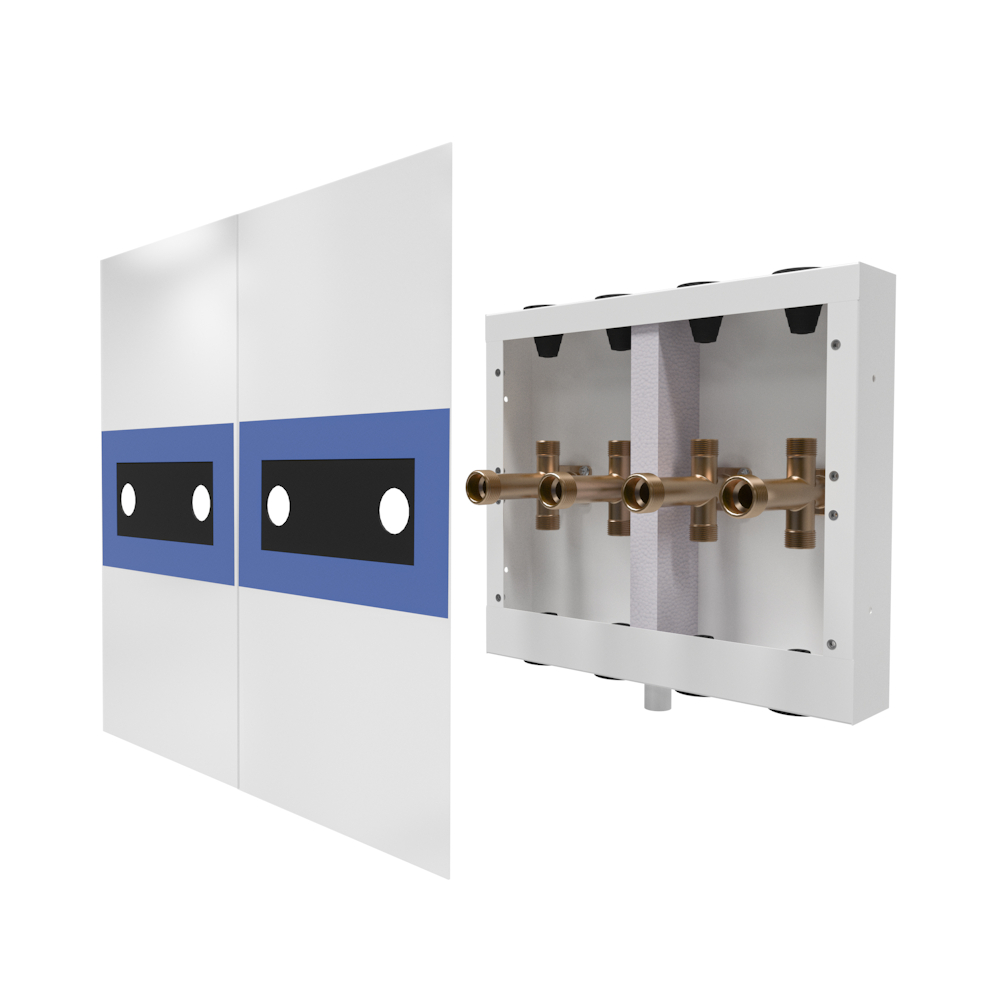

LK Manifold Cabinet UNI VP is intended for use when connecting a heat source to pipes in the wall, such as cold water, hot water, supply and return. The cabinets are made of powder-coated steel sheet, white color RAL 9016 and have a waterproof bottom with a 50 mm high front edge and approved according to NT VVS 129. The T-pipes that come with the cabinet have dimensions G20 EuroCone x G25 x G20 EuroCone. The G25 thread is adapted if the heat source is to be connected with a flexible hose or other designs.

LK Manifold Cabinet UNI VP is delivered with LK T-pipe VP with flat adapters and hoods G20, pipe penetrations, drainage bend V2 complete and spray protection. LK Manifold Cabinet UNI VP is available in two variants, one for connecting four pipes and one for connecting two pipes through the wall. The cabinets can be easily assembled together to create a modular system where six pipes can be connected.

Specifications

• Type approved and tested according to SP method 5676.
• Easy connection of heat pump and modular.
• Insulating plate to separate cold water from other connections.
• Dimension: G20xG25xG20
• Size: 400x350x70mm (WxHxD)
• Function: Connection of heat pump
• Color: White
• Surface treatment: Powder coated
• Material: Sheet steel
• Material housing/enclosure/frame: Steel
• Surface protection housing/enclosure/frame: Lacquered
• Color housing/enclosure/frame: White
• RAL number housing/enclosure/frame: 9016
• With frame for door: No
• With door: No
• Adapted for connection to waterproofing: No
• With waterproof bottom: Yes
• With pipe penetration seal: Yes
• With splash guard: Yes
• With brackets for distributor: Yes
• With outlet for leakage indication: Yes
• Suitable for built-in/recessed installation: Yes
• Suitable for surface-mounted installation: Yes
• Open holes top: No
• Number of holes top: 4
• Open holes side: No
• Open bottom holes: Yes
• Number of bottom holes: 4
• With pre-assembled distributor: No
