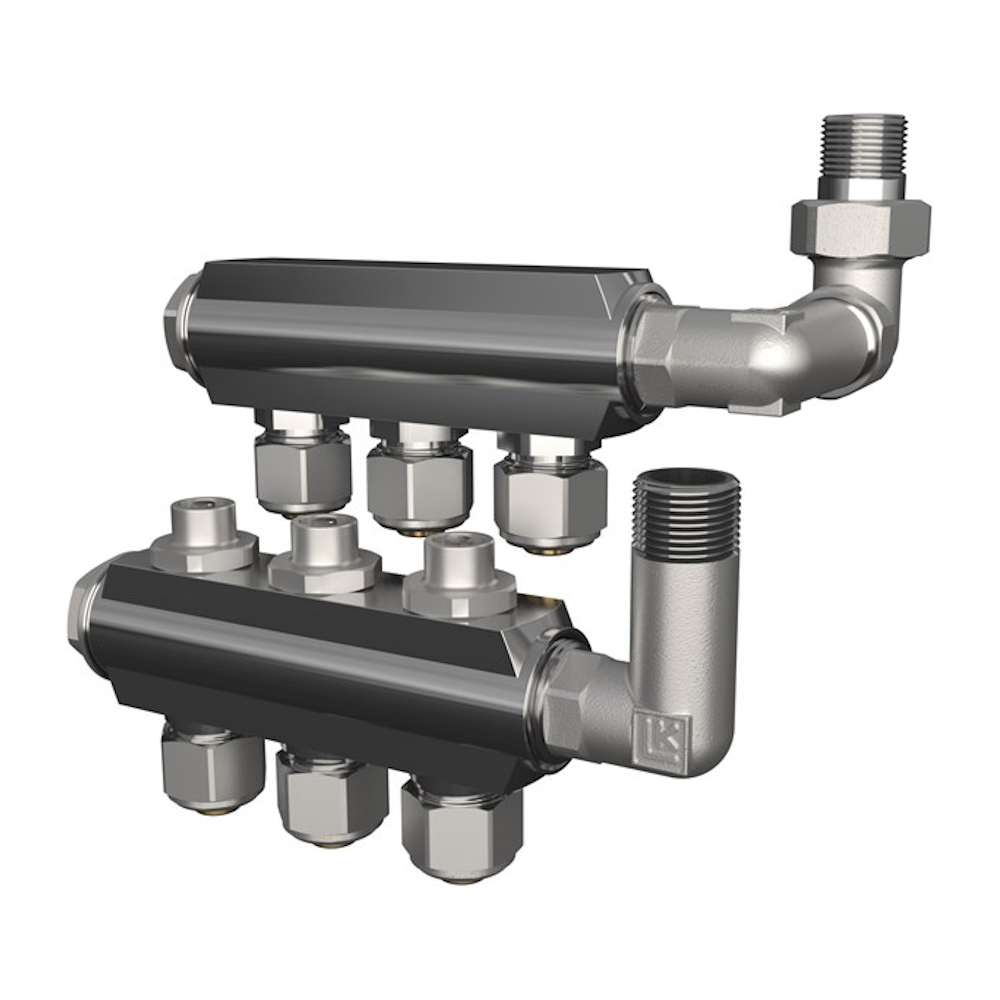

LK Mini Manifold Complete 2-16, 3-16, 4-16

Manifold made of nickel-plated brass for connection to LK Minishunt M60n. Has integrated balancing valves.

LK Mini Manifold Complete 2-16, 3-16, 4-16

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK Mini Manifold Complete 2-16, 3-16, 4-16

Manifold made of nickel-plated brass for connection to LK Minishunt M60n. Has integrated balancing valves.

Description

Manifold made of nickel-plated brass for connection to LK Minishunt M60n. The manifolds have integrated balancing valves for balancing the flows of the underfloor heating circuits. The manifolds are available for connection from 2 to 4 underfloor heating circuits. Supplied including angle fittings R15 ext. gg, and the required number of connection fittings in dim 16 mm for PE-X. Mounted on LK Minishunt M60n, the construction height of the minishunt is increased by approx. 90 mm.

Specifications

  • Dimension: R15
  • Pressure/Flow/Temp: PN6, max temp +60°C (+70°C)
  • Function: for LK-minishunt
  • Design: external thread x coupling
  • Color: chrome
  • Surface treatment: chrome-plated
  • Material: brass
  • Number of underfloor heating groups: 3
  • External pipe diameter for underfloor heating: 15 - 15 mm
  • With pump: No
  • Central heating connection: External thread
  • Dimension of central heating connection: Conn. 15 (1/2")
  • With venting: Yes
  • With drain valve: Yes
  • With mounting details: Yes
  • With wall bracket: No
  • Food Contact Material: No
  • REACH: Yes
