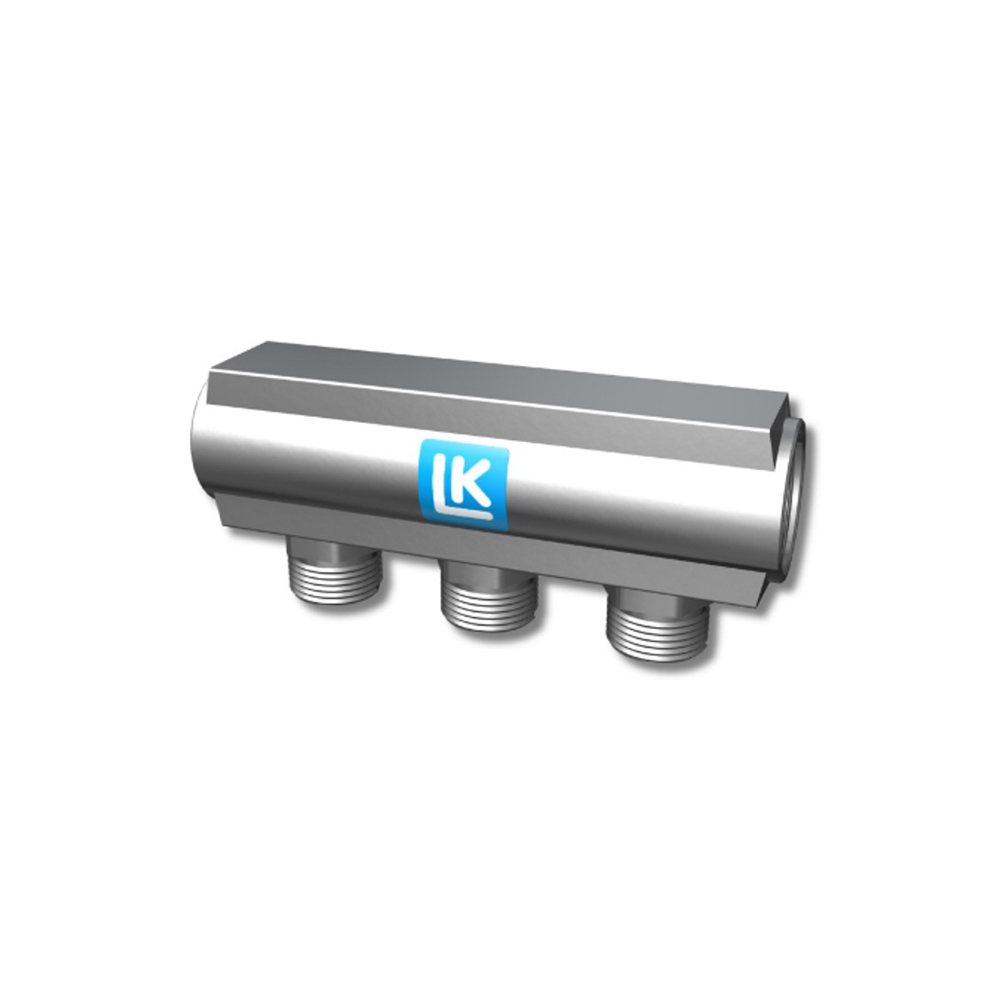

LK Mini Manifold Return G20 3xG15

Description

Compact return manifold in dezincification-resistant brass with nickel plating, intended for heating systems. It has a main connection G20 and three outlets G15 with 50mm c/c distance. The product is suitable for underfloor heating or smaller heating circuits and withstands up to PN6 and max. 70°C. Installed without built-in shut-off valves.

Specifications

• Number of branches: 3
• Dimension branch: Conn. 15 (1/2")
• Connection 1: Internal thread G, cylindrical (ISO 228-1)
• Connection 1 dimension: Conn. 20 (3/4")
• Connection 2: Internal thread G, cylindrical (ISO 228-1)
• Material quality: Dezincification resistant brass (DZR)
• Connection 2 dimension: Conn. 20 (3/4")
• Form: Through with straight branches
• Center distance between branches: 50 mm
• Max. medium temperature (continuous): 70 °C
• Pressure class: PN 6
• With venting: No
• With filling and draining valve: No
• With shut-off valve: No
• With wall bracket: No
• Suitable for tap water: No
• Suitable for heating water: Yes
• Suitable for cooling water: No
• Suitable for compressed air: No
• Suitable for glycol: Yes
• Installation method: Surface-mounted
• Material: Brass
• Surface protection: Nickel-plated
• Number of branch directions: 1
• Different center distance between branches: No
• System-bound: Yes
• With mounting parts: No
• With legs/feet: No
• With insulation: No
• Width: 122 mm
• Height: 63 mm
• Depth: 31 mm
