LK Minishunt Cabinet M60n Prefab-4 White

Description

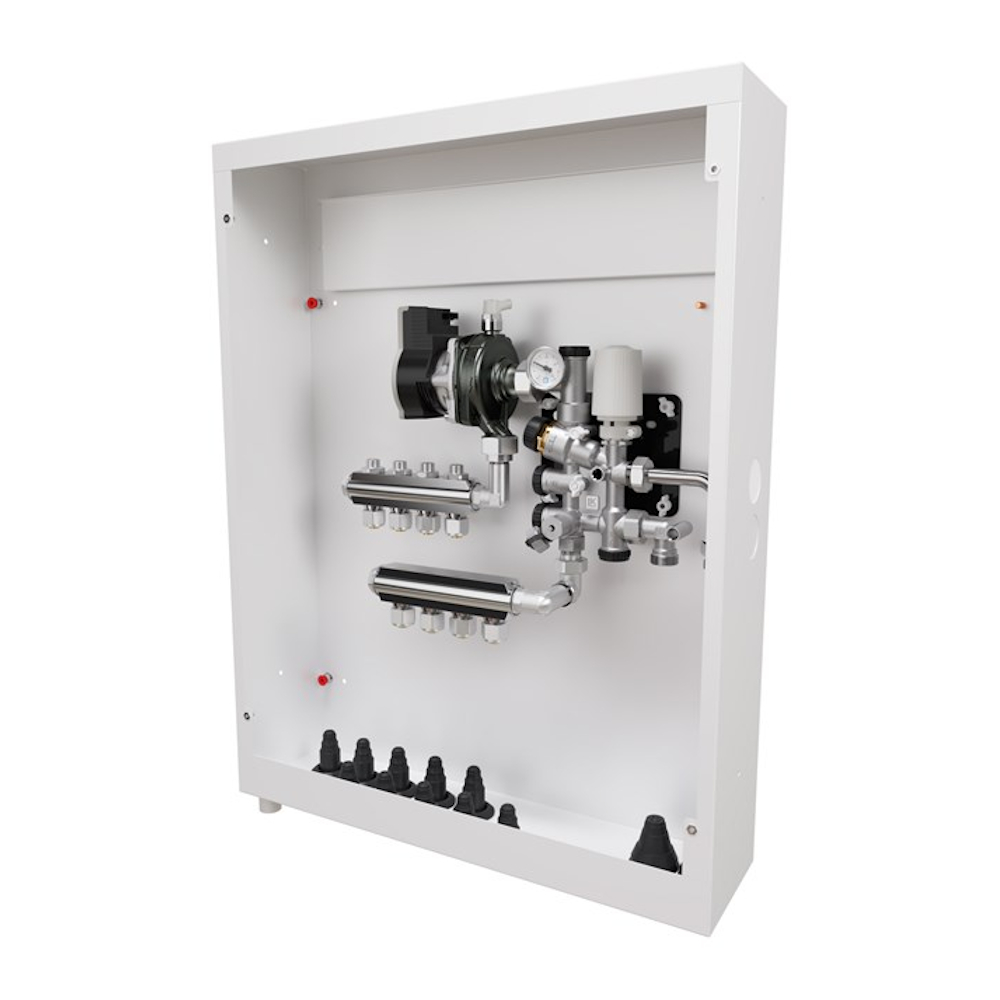

LK Minishunt Cabinet M60n Prefab is delivered as a complete unit with mounted LK Minishunt M60n and LK Mini Distributor including couplings for connecting underfloor heating pipes dim 16. Note! The cabinet is intended for right-hand mounting, i.e. connection to the shunt group is made from the right side of the cabinet, via the cabinet bottom.

The cabinet has a tight bottom with rubber pipe penetrations. The cabinet bottom is equipped with a drain socket, which means that any leakage water is drained to an inspectable location. The cabinet is made of 1 mm powder-coated steel sheet, RAL 9016. The cabinet is intended to be installed either built-in to the wall or externally on the wall. The minimum stud thickness for installation is 145 mm.

There are different solutions for the frame/door for the cabinet, depending on where the cabinet is installed and the aesthetic requirements: The standard frame/door is made of powder-coated steel sheet, RAL 9016. There are two types of standard frame/door, depending on whether the cabinet is installed inside or outside on an interior wall. When installed outside, the cabinet must also be supplemented with a base to hide pipes between the cabinet and the floor. When installed in rooms with a waterproofing layer on the wall, the cabinet must be supplemented with LK Wet Zone Door PRESEAL, which is connected to the wall's waterproofing layer. For a discreet / hidden installation of LK cabinets, it is advantageous to use LK Plaster Door HIDDEN.

The cabinet is supplied with pipe penetrations, a bellows sleeve for drainage, a drainage bend with an outlet plate, cable penetrations for room control, a splash guard and installation instructions. The back of the cabinet is equipped with four pre-assembled M8 nuts that can be used for fastening to the LK Cabinet Stand when you want to install the cabinet before a concrete slab is cast.

Specifications

• Number of circuits: 4
• Dimensions: 550x710x145mm
• Pressure/Flow/Temp: 6bar
• Function: For four heating circuits
• Version: Intended for right-hand installation
• Color: White, RAL 9016
• Surface treatment: Powder coating
• Material: Steel/brass
