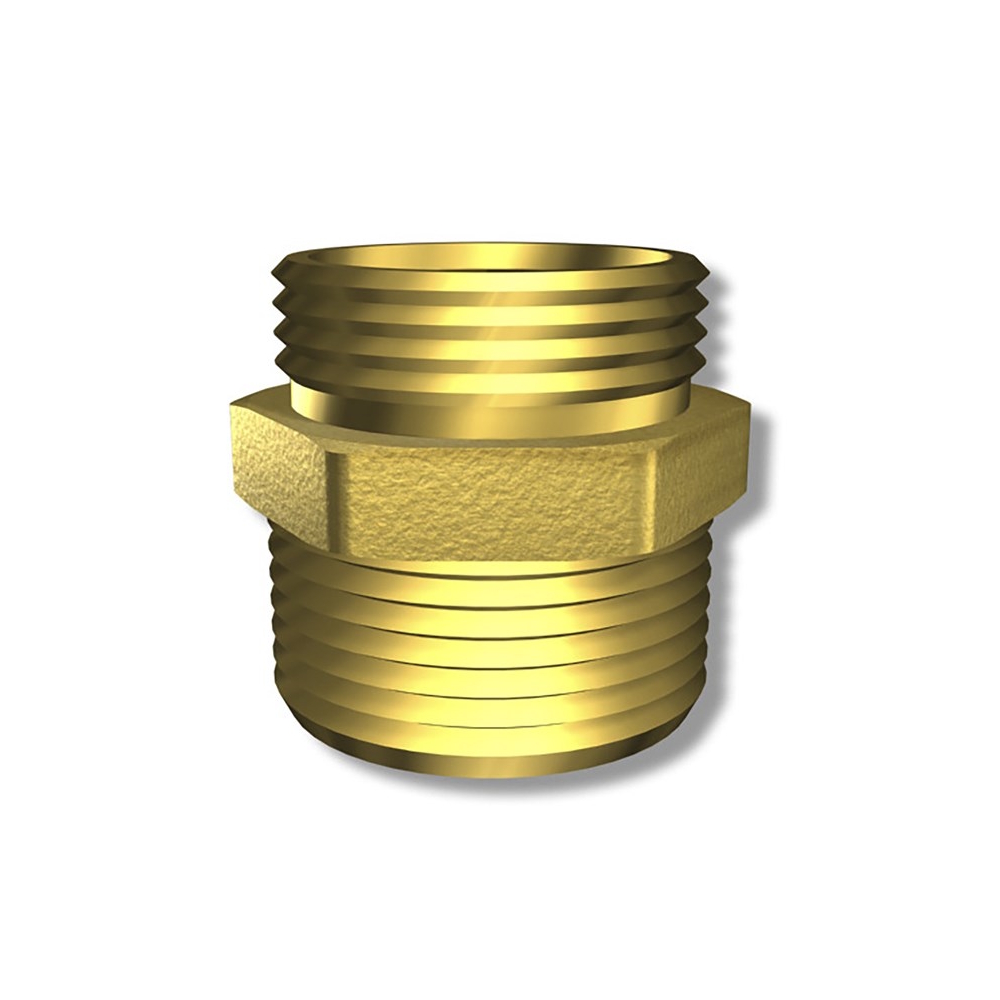

LK Nipple Straight G20x12/16/20mm External Thread
Nipple with 1 coupling connection and an external thread, supplemented with the respective connection coupling.
Watch this product and we will notify you once it is back in stock.
LK Nipple Straight G20x12/16/20mm External Thread
Description
Nipple with 1 coupling connection and an external thread. Supplemented with the respective connection coupling.
Specifications
- Dimension: G20x12/16/20mm
- Design: Straight, external thread
- Material connection 1: Brass
- Material quality connection 1: Dezincification resistant brass (DZR)
- Surface protection connection 1: Untreated
- Surface treatment connection 1: Untreated
- Material connection 2: Brass
- Material quality connection 2: Dezincification resistant brass (DZR)
- Surface protection connection 2: Untreated
- Surface treatment connection 2: Untreated
- Shape: Straight
- Model/Design: 1-piece
- Reduction: No
- Eccentric: No
- System-bound: No
- Dimension connection 1: Conn. 20 (3/4")
- Connection 1: External thread G, cylindrical (ISO 228-1)
- External pipe diameter connection 2: 20 mm
- Connection 2: Clamping ring
- Seal material: Brass
- Length: 35 mm
- Media temperature (continuous): 0 - 90 °C
- Max. working pressure at 20°C (PN): 10 bar
- With gaskets: No
- With protective cap/plug: No
- With drain valve: No
- With air vent/bleeder: No
- FM-marked: No
- LPCB-marked: No
- ULC-marked: No
- UL-marked: No
