LK Prefab Cabinet UNI 5/3 350x550x95mm

LK Prefab Cabinet UNI 5/3 is a leak-proof prefabricated distributor cabinet for 5 cold water connections and 3 hot water connections.

LK Prefab Cabinet UNI 5/3 350x550x95mm

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK Prefab Cabinet UNI 5/3 350x550x95mm

LK Prefab Cabinet UNI 5/3 is a leak-proof prefabricated distributor cabinet for 5 cold water connections and 3 hot water connections.

Description

LK Prefab Cabinet UNI 5/3 is a leak-proof prefabricated distributor cabinet for 5 cold water connections and 3 hot water connections. Prepared for supply with stem from below. Supplied including ball valves with blue knob for cold water and red knob for hot water. The ball valves have connection G20 male Euroconus. Supplied complete with required cabinet penetrations and LK Hollow Pipe Umbrella LP for both supply and connection lines. 8 pcs LK Press Connection Coupling AX16xG15 for connection lines included.

All distributors, couplings and ball valves are made of dezincification-resistant brass. The cabinet has a waterproof bottom with a 50 mm high front edge and is approved according to NT VVS 129. A protective bag to put over the cabinet during construction is included. In order to be able to install and make room for the drainage pipe, the cabinet must be installed at a minimum height of 250 mm from the bottom of the cabinet bottom to the finished floor. The drainage pipe must be installed with a slope. When installing on the outside of the wall, the cabinet is placed 250 (±25) mm above the finished floor to make room for the base. NOTE! LK Frame with door UNI 350 INB or UNI 350 UTV and Base UNI 350 are ordered separately, suitable for LK Prefab Cabinet UNI 5/3.

Specifications

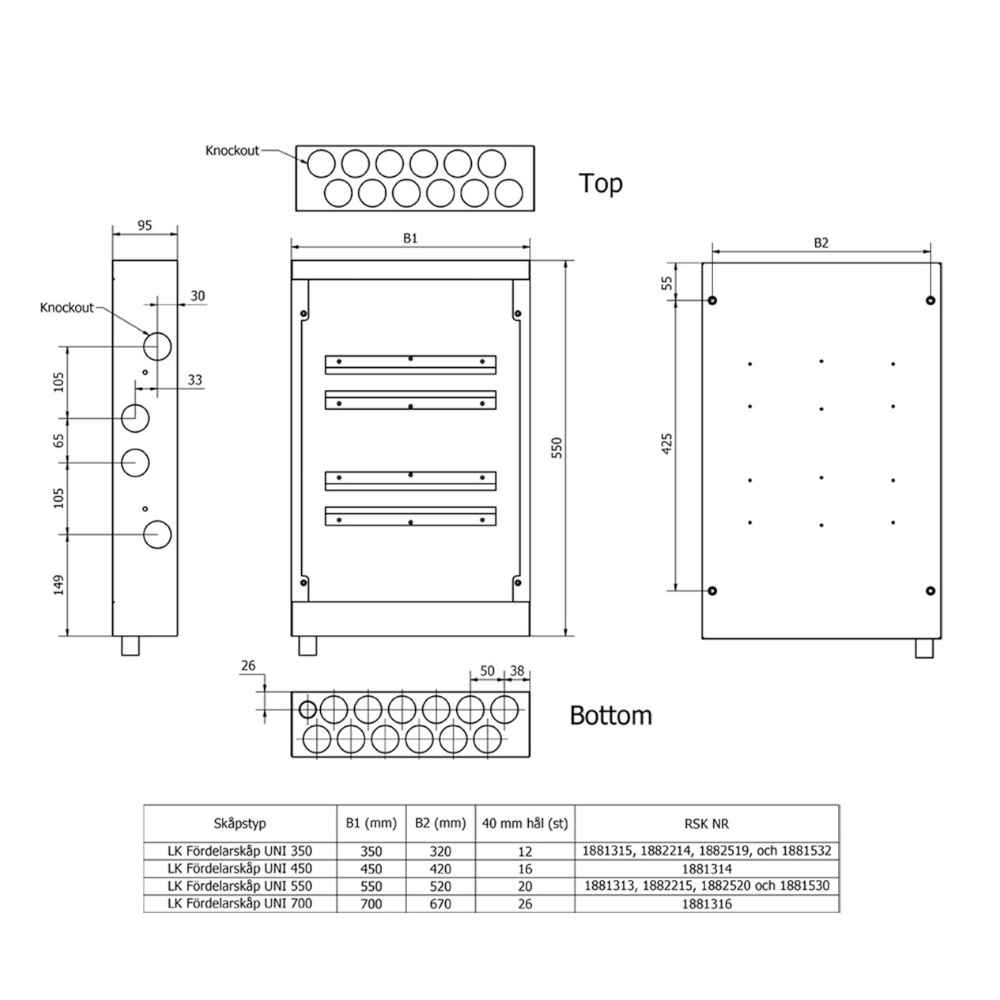

  • Size: 350x550x95mm (HxWxD)
  • Version: 5 KV, 3 VV connections
  • Color: White
  • Surface treatment: Painted
  • Material: Steel sheet
  • Material housing/enclosure/frame: Steel
  • Surface protection housing/enclosure/frame: Painted
  • Color housing/enclosure/frame: White
  • RAL number housing/enclosure/frame: 9016
  • With frame for door: No
  • With door: No
  • With waterproof bottom: Yes
  • With pipe penetration seal: Yes
  • With splash guard: Yes
  • With brackets for distributor: Yes
  • With outlet for leakage indication: Yes
  • Suitable for built-in/recessed mounting: Yes
  • Suitable for surface mounting: No
  • Open holes top: No
  • Number of holes top: 12
  • Open holes side: No
  • Number of holes per side: 4
  • Open holes bottom: Yes
  • Number holes bottom: 12
  • With pre-assembled distributor: Yes
