LK Prefab Cabinet UNI 5/3 Mini

Prefab Cabinet UNI 5/3 mini is a leak-proof prefabricated distributor cabinet for 5pcs cold water connections and 3pcs hot water connections.

Description

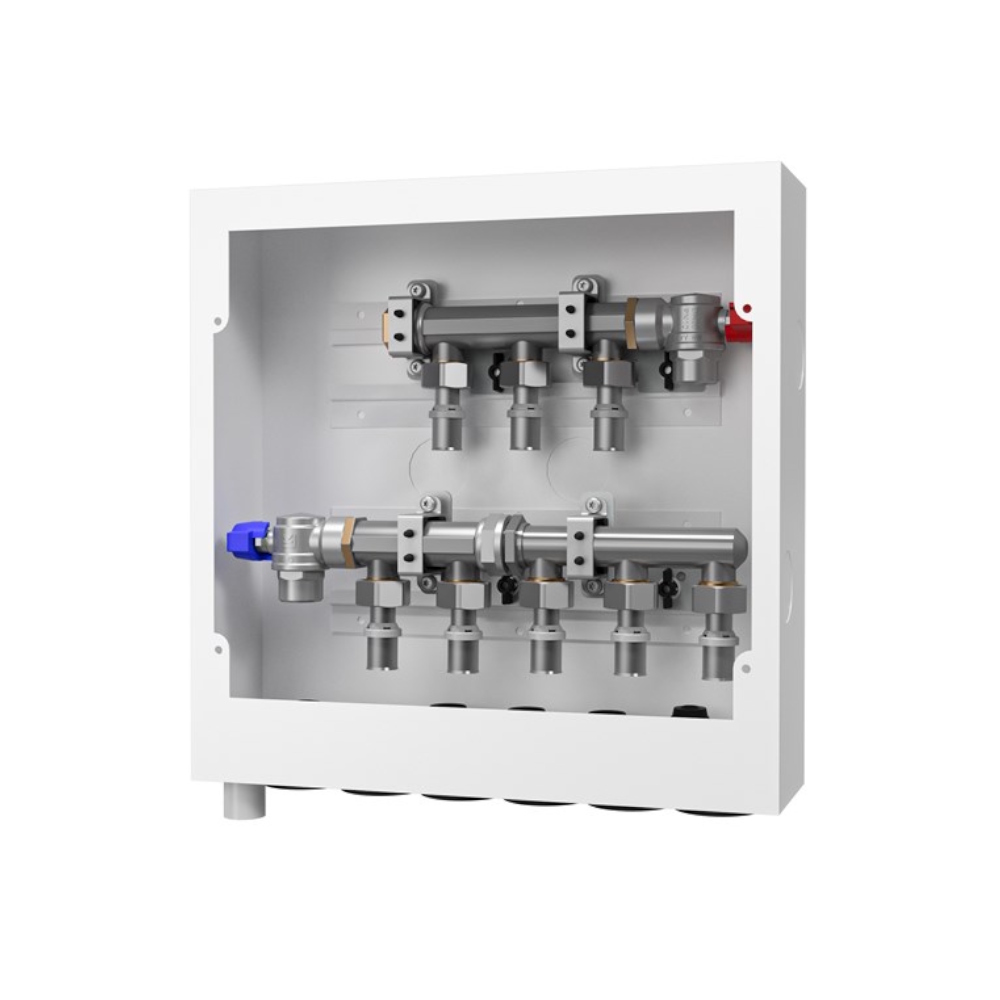

LK Prefab Cabinet UNI 5/3 mini is a leak-proof prefabricated distributor cabinet for 5pcs cold water connections and 3pcs hot water connections. Prepared for supply with stem from below. Supplied including ball valves with blue knob for cold water and red knob for hot water. The ball valves have connection G20 male Euroconus. Supplied complete with required cabinet penetrations for both supply and connection lines. 8pcs LK Press connection couplings AX16xG15 for connection lines included. All distributors, couplings and ball valves are made of dezincification-resistant brass. The cabinet has a waterproof bottom with a 50mm high front edge and is approved according to NT VVS 129. A protective bag to put over the cabinet during construction is included. In order to be able to assemble and make room for the drainage pipe, the cabinet must be assembled at a minimum height of 250mm from the underside of the cabinet bottom to the finished floor. The drainage pipe must be assembled with a slope.

NOTE! LK Frame/Door INB and UTV Switch Cabinet UNI 350x350 are ordered separately, suitable for LK Prefab Cabinet UNI 5/3 mini.

Specifications

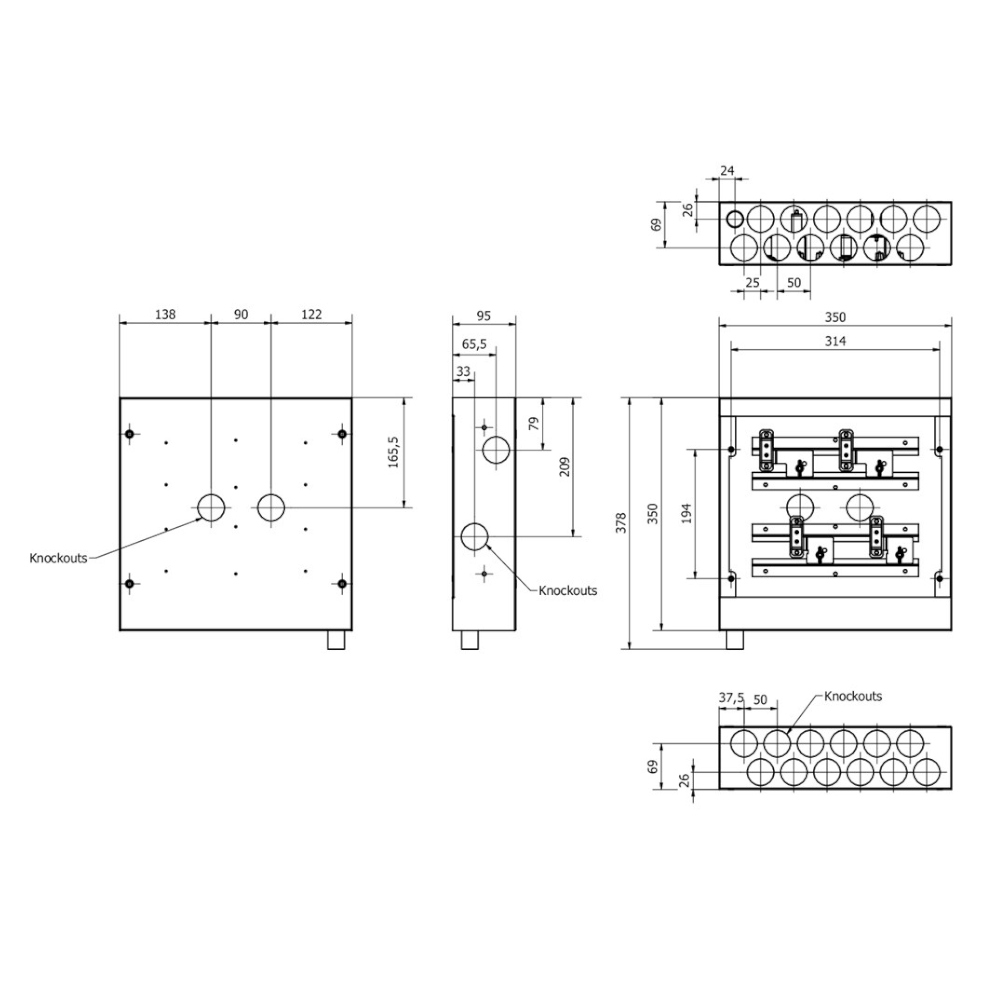

  • Size (WxHxD): 350x350x95mm
  • Version: 5 KV 3 VV with waterproof bottom
  • Color: White RAL: Painted
  • Material: Steel sheet
  • Material housing/enclosure/frame: Steel
  • Surface protection housing/enclosure/frame: Painted
  • Color housing/enclosure/frame: White
  • RAL number housing/enclosure/frame: 9016
  • With frame for door: No
  • With door: No
  • Adapted for connection to waterproofing: No
  • With waterproof bottom: Yes
  • With pipe penetration seal: No
  • With splash guard: Yes
  • With brackets for distributor: Yes
  • With outlet for leakage indication: Yes
  • Suitable for built-in/recessed installation: Yes
  • Open holes top: No
  • Number of holes top: 12
  • Open holes side: No
  • Number of holes per side: 2
  • Open holes bottom: Yes
  • Number of holes bottom: 12
  • With pre-assembled distributor: Yes
