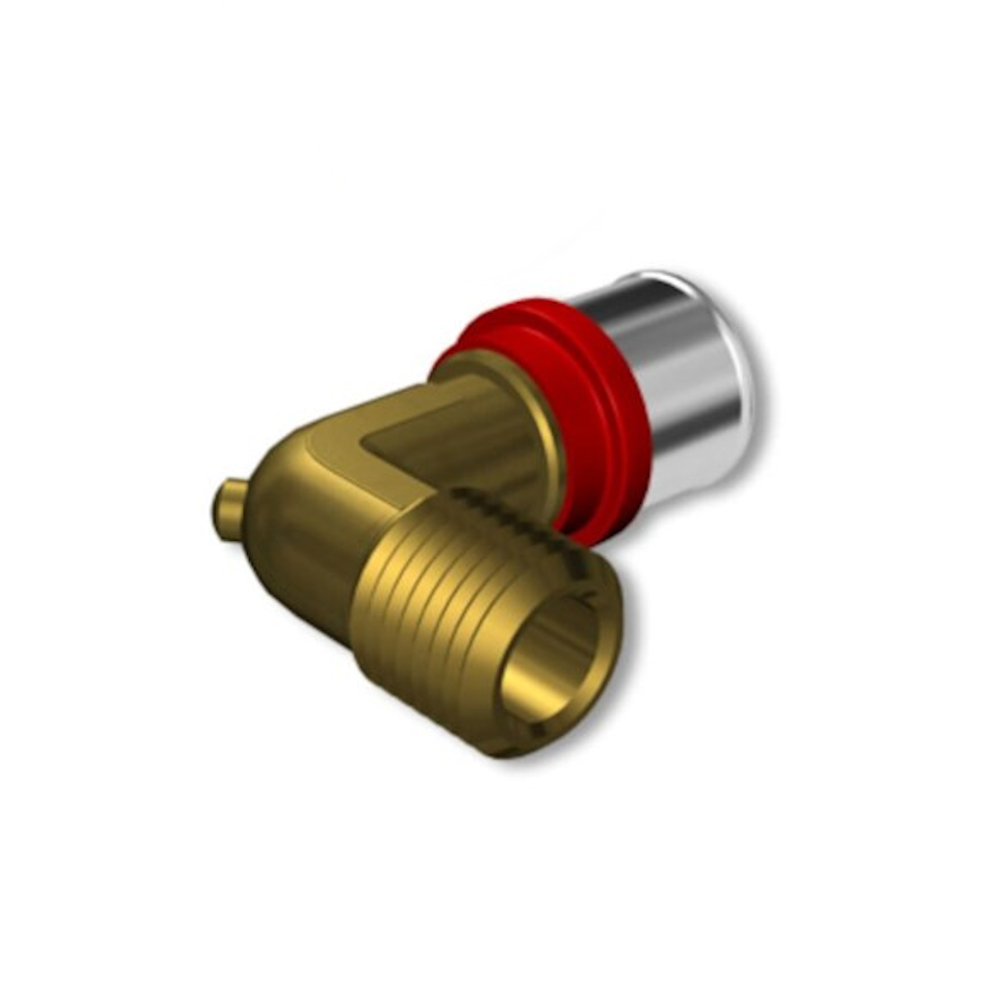

LK Press Fitting PV Angle External Thread 25mmxG25

Description

Press fitting for joining PE pipes. This range includes both PressPex fittings for Universal pipes (grey plastic ring) and PE-M, PE-X pipes (red plastic ring). Dimension 25 x 2.3/2.5 for PE-M, PE-X pipes is with red plastic ring.

Specifications

• Dimension: 25mmxG25
• Pressure/Flow/Temp: PN6, max temp +60°C (+70°C)
• Design: Angle, PEX x external thread
• Color: Red ring
• Surface treatment: Nickel-plated
• Material connection 1: Brass
• Material quality connection 1: Dezincification resistant brass (DZR)
• Surface protection connection 1: Untreated
• Surface treatment connection 1: Untreated
• Material connection 2: Brass
• Material quality connection 2: Dezincification resistant brass (DZR)
• Surface protection connection 2: Untreated
• Surface treatment connection 2: Untreated
• Shape: Bend
• Model/Design: 1-piece
• Bending angle: 90 °
• Reduction: No
• Eccentric: No
• System-bound: Yes
• Outer pipe diameter connection 1: 25 mm
• Connection 1: Press sleeve
• Dimension connection 2: Port 25 (1")
• Port 2: External thread R, conical (ISO 7-1 / EN 10226-1)
• Sealing material: EPDM (ethylene propylene rubber)
• With internal stop edge: Yes
• Length: 51 mm
• Media temperature (continuous): 0 - 60 °C
• Max. working pressure at 20°C (PN): 6 bar
• With gaskets: No
• With protective cap/plug: No
• With drain valve: No
• With air vent/bleeder: No
• FM-marked: No
• LPCB-marked: No
• ULC-marked: No
• UL-marked: No
