LK PressPex Angle 90º A50

Description

Press fitting for joining LK PAL and LK PE-X Universal pipes. Parts of this range in dimensions AX16 16x2.0 mm and A32 32x3.0 mm can also be used for PEM pipes.

Specifications

• Dimension: A50 mm x 90°
• Pressure/Flow/Temp: PN10, Max temp +70°C (+95°C)
• Function: Press joint Tap water/Heating/Cooling
• Design: 2Muff
• Color: Brass
• Material: AZH brass
• Standard: Press tool LK
• Other info: With Leakage indication Unpressed
• Material connection 1: Brass
• Material quality connection 1: Brass Dezincification resistant (DZR)
• Surface protection connection 1: Untreated
• Surface treatment connection 1: Untreated
• Material connection 2: Brass
• Material quality connection 2: Brass Dezincification resistant (DZR)
• Surface protection connection 2: Untreated
• Surface treatment connection 2: Untreated
• Shape: Bend
• Model/Design: 1-Part
• Bending angle: 90°
• Reduction: No
• Eccentric: No
• System-bound: Yes
• Dimension connection 1: Other
• Outer pipe diameter connection 1: 50 mm
• Connection 1: Press sleeve
• Dimension connection 2: Other
• Outer pipe diameter connection 2: 50 mm
• Connection 2: Press sleeve
• Material seal: EPDM (Ethylene propylene rubber)
• With internal stop edge: Yes

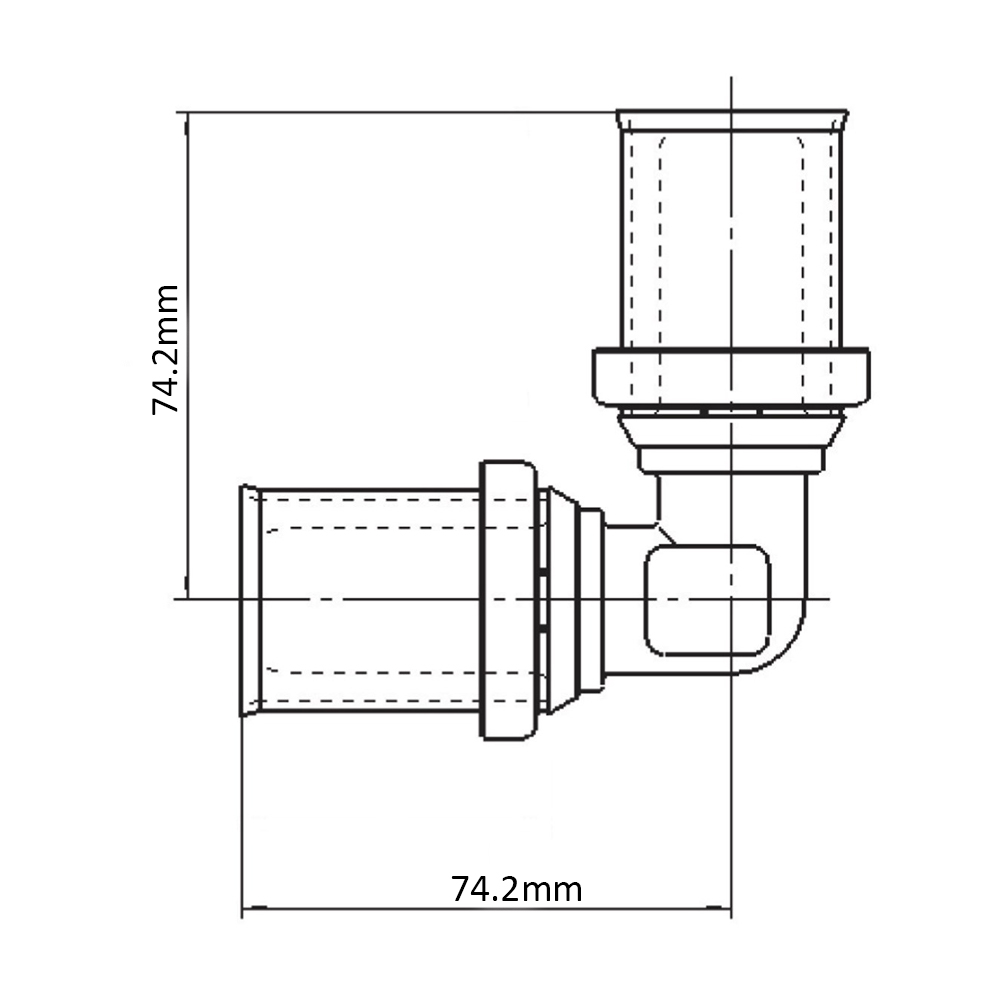

• Length: 74.2 mm
• Media temperature (continuous): 0 - 70 °C
• Max. working pressure at 20°C (PN): 10 bar
• With gaskets: No
• With protective cap/plug: No
• With drain valve: No
• With air vent/bleeder: No
• FM-marked: No
• LPCB-marked: No
• ULC-marked: No
• UL-marked: No
