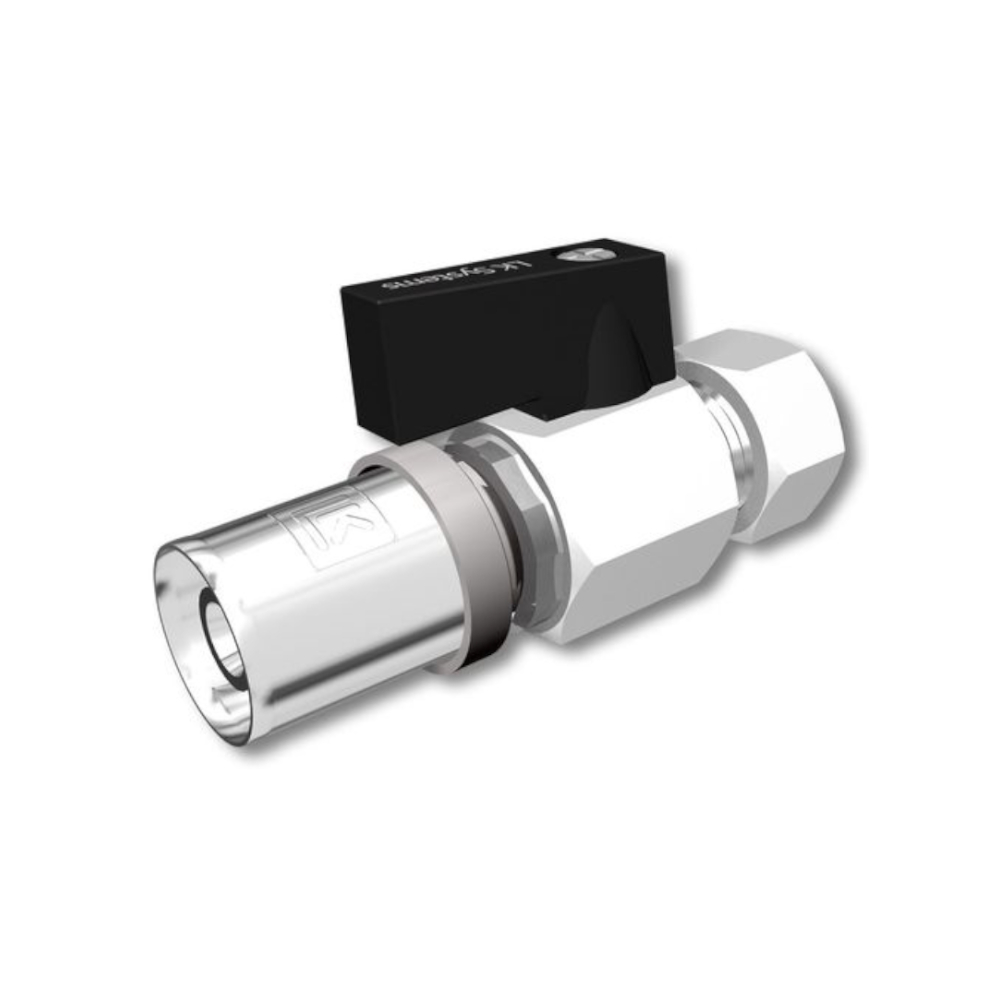

LK PressPex Ball Valve AX16xCu12

Ball valve with PressPex connection for LK PE-X and PAL Universal pipe 16mm, on the other side there is a compression ring coupling for copper pipes.

LK PressPex Ball Valve AX16xCu12

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK PressPex Ball Valve AX16xCu12

Ball valve with PressPex connection for LK PE-X and PAL Universal pipe 16mm, on the other side there is a compression ring coupling for copper pipes.

Description

Ball valve with PressPex connection for LK PE-X and PAL Universal pipe 16mm. On the other side there is a compression ring coupling for copper pipes for example a sink mixer. If the nut is removed on AX16xCu10 to the compression ring coupling there is an external G10 thread for connecting, for example, a connection hose from a mixer with a floating nut and flat gasket. Also suitable for LK Underfloor heating pipes dimension 16x2.0mm.

Specifications

  • Dimension: AX16mm x 12mm
  • Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
  • Function: press joint tap water/heating/cooling
  • Colour: nickel
  • Surface treatment: nickel-plated
  • Material: AZH brass
  • Material housing/enclosure/frame: Brass
  • Material quality: Dezincification resistant brass (DZR)
  • Material ball seal: PTFE (polytetrafluoroethylene)
  • Material ball: Brass
  • Material spindle: Brass
  • Material spindle seal, primary: EPDM (ethylene propylene rubber)
  • Material spindle seal, secondary: NBR (nitrile rubber)
  • Outer pipe diameter connection 1: 16 mm
  • Connection 1: Press sleeve
  • With connection 1 coupling: Yes
  • Outer pipe diameter connection 2: 12 mm
  • Connection 2: Clamping ring
  • With connection 2 coupling: Yes
  • Sealing: EPDM (ethylene propylene rubber)
  • With drain valve: No
  • With drain option: No
  • With check valve: No
  • With filter: No
  • With thermometer: No
  • Model/Version: Straight
  • FM-marked: No
  • UL-marked: No
  • ULC-marked: No
  • LPCB-marked: No
  • Fireproof: No
  • Max. differential pressure at 20°C: 10 bar
  • Medically clean: No
  • Grease-free: No
  • Operation: Knob
  • Housing construction: 1-piece
  • Full-flow: Yes
