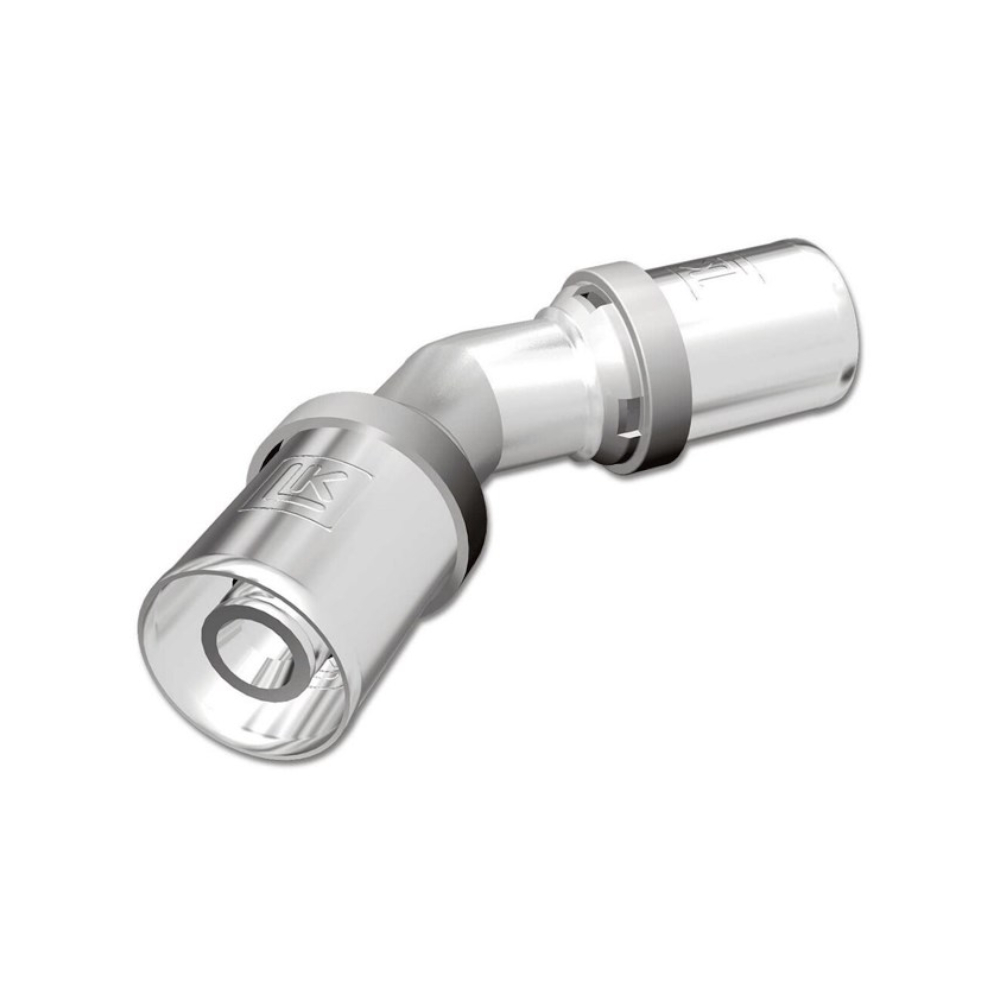

LK PressPex Eco Angle 45° A40

Description

Lead-free dezincification-resistant brass press coupling for joining LK PAL and LK PE-X Universal pipes.

Specifications

• Dimension: A40mm x 45°
• Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
• Function: press joint tap water/heating/cooling
• Design: 2 sleeves
• Color: nickel
• Surface treatment: nickel-plated
• Material: brass CV511 < 0.1% lead
• Standard: pressing tool LK
• Other info: with leak indication unpressed
• Material connection 1: Brass
• Material quality connection 1: Dezincification resistant brass (DZR)
• Surface protection connection 1: Nickel-plated
• Surface treatment connection 1: Untreated
• Material connection 2: Brass
• Material quality connection 2: Dezincification resistant brass (DZR)
• Surface protection connection 2: Nickel-plated
• Surface treatment connection 2: Untreated
• Shape: Angle/Bend
• Model/Design: 1-piece
• Bend angle: 45 °
• Reduction: No
• Eccentric: No
• System-related: Yes
• Outer pipe diameter connection 1: 40 mm
• Connection 1: Press sleeve
• Press profile connection 1: TH
• Outer pipe diameter connection 2: 40 mm
• Connection 2: Press sleeve
• Press profile connection 2: TH
• Sealing material: EPDM (ethylene propylene rubber)
• With internal stop edge: Yes
• Media temperature (continuous): 0 - 75 °C
• Max. operating pressure at 20°C (PN): 10 bar
• With gaskets: No
• With protective cap/plug: No
• With drain valve: No
• With air vent/bleeder: No
• FM-marked: No
• LPCB-marked: No
• ULC-marked: No
• UL-marked: No
