LK PressPex Press Connection Coupling Angle AX25xG20x90°

PressPex coupling in angle with play nut for connecting LK PE-X and LK PAL Universal pipes to external EuroCone.

Description

PressPex coupling in angle with play nut for connecting LK PE-X and LK PAL Universal pipes to external EuroCone on e.g. LK Manifold UNI. Parts of this range in dimensions AX16 16x2.0 mm and A32 32x3.0 mm can also be used for PEM pipes.

Specifications

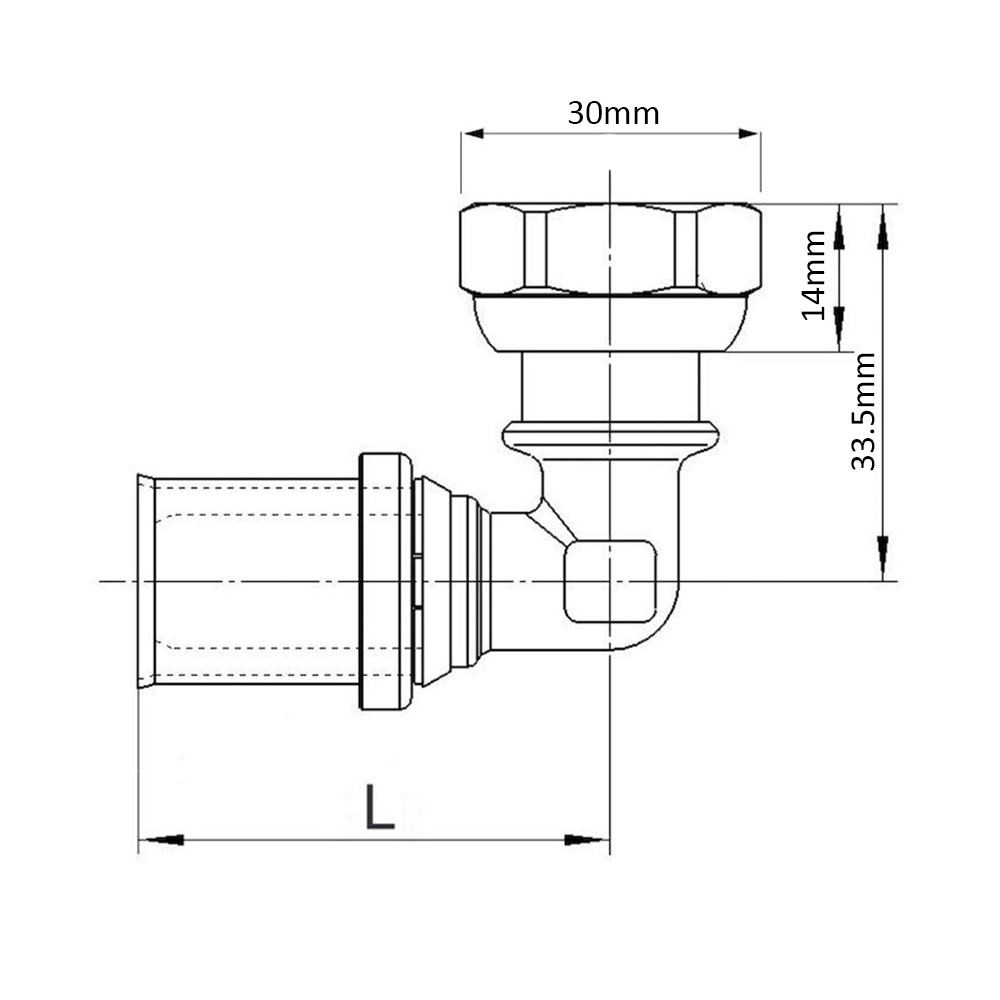

  • Dimension: AX25xG20 x 90°
  • nipple connection: G20 EuroCone
  • Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
  • Function: Press joint tap water/heating/cooling
  • Design: Sleeve x internal union nut
  • Color: Nickel
  • Surface treatment: Nickel-plated
  • Material: AZH brass
  • Standard: Press tool LK
  • Material connection 1: Brass
  • Material quality connection 1: Dezincification resistant brass (DZR)
  • Surface protection connection 1: Nickel-plated
  • Surface treatment connection 1: Untreated
  • Material connection 2: Brass
  • Material quality connection 2: Dezincification resistant brass (DZR)
  • Surface protection connection 2: Nickel-plated
  • Surface treatment connection 2: Untreated
  • Shape: Bend
  • Model/Design: 1-piece
  • Bending angle: 90°
  • Reduction: No
  • Eccentric: No
  • System-bound: Yes
  • Dimension connection 1: Other
  • External pipe diameter connection 1: 25 mm
  • Connection 1: Press sleeve
  • Dimension connection 2: Conn. 20 (3/4")
  • Material seal: EPDM (ethylene propylene rubber)
  • With internal stop edge: Yes
  • Length: 46 mm
  • Media temperature (continuous): 0 - 70 °C
  • Max. working pressure at 20°C (PN): 10 bar
  • With gaskets: No
  • With protective cap/plug: No
  • With drain valve: No
  • With air vent/bleeder: No
  • FM-marked: No
  • LPCB-marked: No
  • ULC-marked: No
  • UL-marked: No
