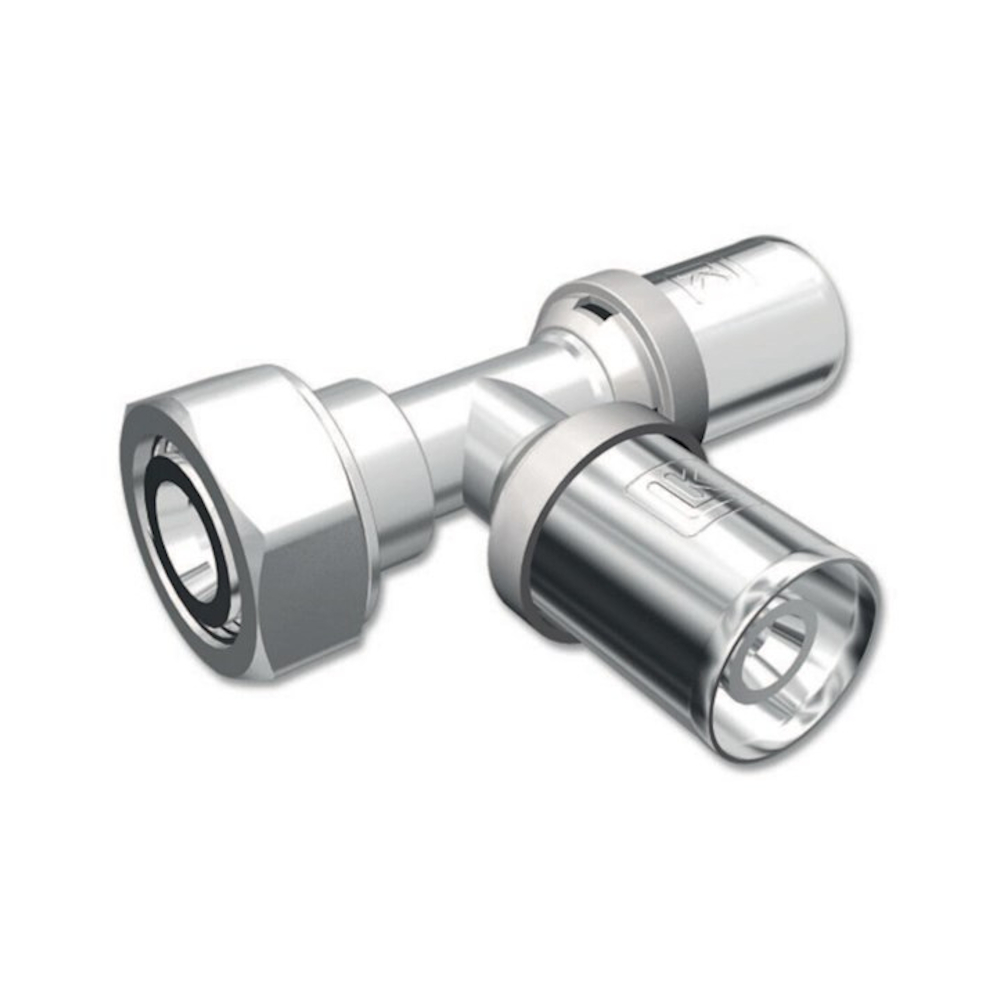

LK PressPex Press Connection T-Pipe G15xAX16xAX16

LK PressPex T-coupling with play nut for connecting LK PE-X and LK PAL Universal pipes to external EuroCone on e.g. LK Manifold UNI.

LK PressPex Press Connection T-Pipe G15xAX16xAX16

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK PressPex Press Connection T-Pipe G15xAX16xAX16

LK PressPex T-coupling with play nut for connecting LK PE-X and LK PAL Universal pipes to external EuroCone on e.g. LK Manifold UNI.

Description

LK PressPex T-coupling with play nut for connecting LK PE-X and LK PAL Universal pipes to external EuroCone on e.g. LK Manifold UNI. Also suitable for LK Underfloor Heating Pipes (dim 16x2.0)

Specifications

  • Dimension: AX16x2.0–2.2 mm x G15
  • Pressure/Flow/Temp: PN10, max temp +70 °C (+95 °C)
  • Function: Press joint for tap water, heating and cooling
  • Design: 2 x press sleeve x internal union nut
  • Color: Nickel
  • Surface treatment: Nickel-plated
  • Material: AZH brass / stainless steel
  • Material connection 1: Brass
  • Material quality connection 1: Dezincification-resistant brass (DZR)
  • Surface protection connection 1: Nickel-plated
  • Surface treatment connection 1: Untreated
  • Material connection 2: Brass
  • Material quality connection 2: Dezincification-resistant brass (DZR)
  • Surface protection connection 2: Nickel-plated
  • Surface treatment connection 2: Untreated
  • Material connection 3: Brass
  • Material quality connection 3: Brass dezincification resistant (DZR)
  • Surface protection connection 3: Nickel plated
  • Surface treatment connection 3: Untreated
  • Model/Version: T-piece
  • Curved branch: No
  • Reduction: No
  • Multi-part: No
  • System-bound: Yes
  • Dimension connection 1: Conn. 15 (1/2")
  • Connection 1: Union nut
  • Dimension connection 2: Other
  • External pipe diameter connection 2: 16 mm
  • Connection 2: Press sleeve
  • Dimension connection 3: Other
  • External pipe diameter connection 3: 16 mm
  • Connection 3: Press sleeve
  • Material seal: EPDM (ethylene propylene rubber)
  • Max. working pressure at 20 °C (PN): 10 bar
  • With gaskets: No
  • With drain valve: No
  • With air vent/bleeder: No
  • With internal stop edge: Yes
  • With protective cap/plug: No
  • FM-marked: No
  • LPCB-marked: No
  • ULC-marked: No
  • UL-marked: No
