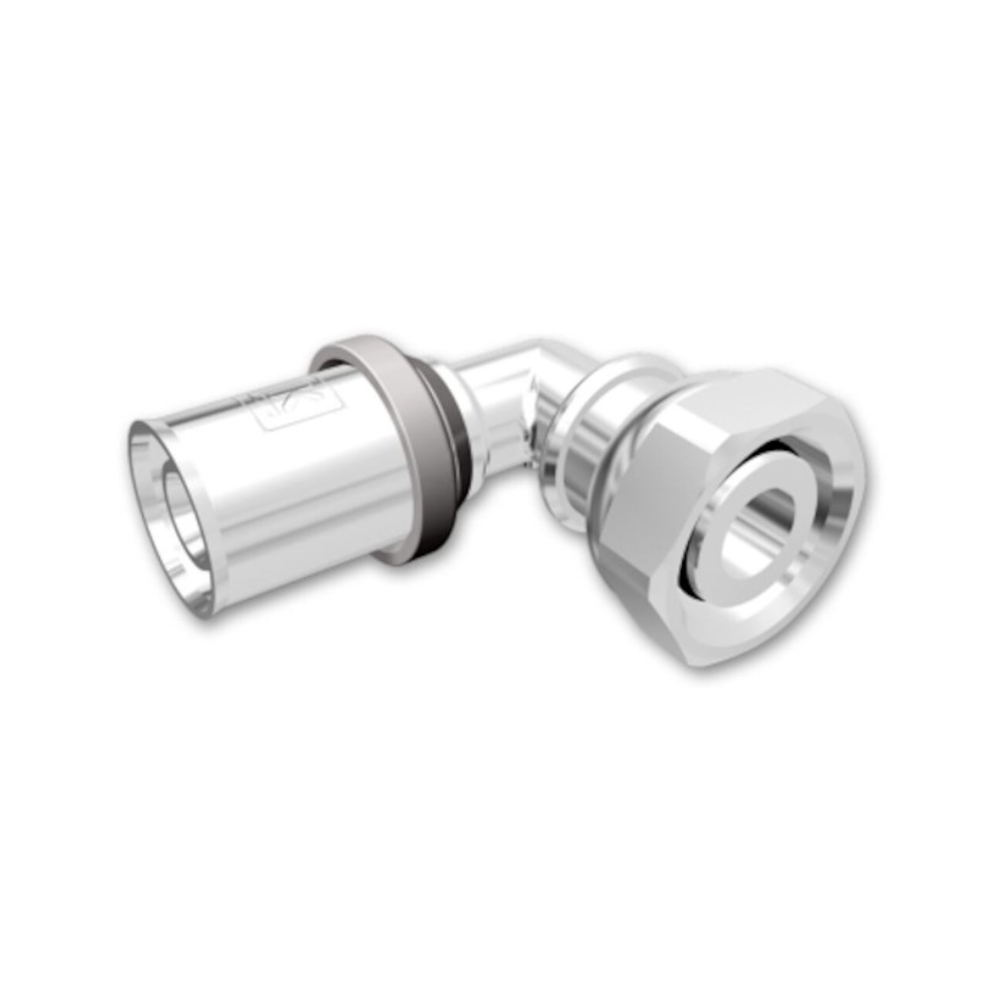

LK PressPex Radiator Coupling AX16xM22 Angle

PressPex coupling with free-floating nut in angle for connecting LK PE-X and LK PAL Universal pipes to radiator coupling M22.

LK PressPex Radiator Coupling AX16xM22 Angle

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK PressPex Radiator Coupling AX16xM22 Angle

PressPex coupling with free-floating nut in angle for connecting LK PE-X and LK PAL Universal pipes to radiator coupling M22.

Description

PressPex coupling with free-floating nut in angle for connecting LK PE-X and LK PAL Universal pipes to radiator coupling M22. Also suitable for LK Underfloor Heating Pipes dimension 16x2.0mm.

Specifications

    • Dimension: AX16xM22
    • Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
    • Function: press joint tap water/heating/cooling
    • Design: sleeve x internal union nut at angle
    • Color: nickel
    • Surface treatment: nickel-plated
    • Material: AVZ brass
    • Standard: press tool LK
    • Other info: with leak indication unpressed
    • Material connection 1: Brass
    • Material quality connection 1: Dezincification resistant brass (DZR)
    • Surface protection connection 1: Nickel-plated
    • Surface treatment connection 1: Untreated
    • Material connection 2: Brass
    • Material quality connection 2: Dezincification resistant brass (DZR)
    • Surface protection connection 2: Nickel-plated
    • Surface treatment connection 2: Untreated
    • Shape: Bend
    • Model/Design: 1-piece
    • Bending angle: 90°
    • Reduction: No
    • Eccentric: No
    • System-bound: Yes
    • Outer pipe diameter connection 1: 16 mm
    • Connection 1: Press sleeve
    • Dimension connection 2: M22x1.5
    • Connection 2: Running nut
    • Material seal: EPDM (ethylene propylene rubber)
    • With internal stop edge: Yes
    • Length: 42.5 mm
    • Media temperature (continuous): 0 - 70°C
    • Max. working pressure at 20°C (PN): 10 bar
    • With gaskets: No
    • With protective cap/plug: No
    • With drain valve: No
    • With air vent/bleeder: No
    • FM-marked: No
    • LPCB-marked: No
    • ULC-marked: No
    • UL-marked: No
