LK PressPex Straight Coupling A50xA40

Straight PressPex coupling for transition A50 to A40 with two press sleeves, Intended for LK PAL and PE-X Universal pipes.

LK PressPex Straight Coupling A50xA40

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK PressPex Straight Coupling A50xA40

Straight PressPex coupling for transition A50 to A40 with two press sleeves, Intended for LK PAL and PE-X Universal pipes.

Description

Press coupling for joining LK PAL and LK PE-X Universal pipes. Parts of this range in dimensions AX16 16x2.0 mm and A32 32x3.0 mm can also be used for PEM pipes.

Specifications

  • Dimension: A50mm x A40mm
  • Pressure/Flow/Temp: PN10, Max temp +70°C (+95°C)
  • Function: Press joint Tap water/Heating/Cooling
  • Design: 2 sleeves
  • Color: Brass
  • Material: AZH brass
  • Standard: Press tool LK
  • Other info: With Leakage indication Unpressed
  • Material connection 1: Brass
  • Material quality connection 1: Brass Dezincification resistant (DZR)
  • Surface protection connection 1: Untreated
  • Surface treatment connection 1: Untreated
  • Material connection 2: Brass
  • Material quality connection 2: Brass Dezincification resistant (DZR)
  • Surface protection connection 2: Untreated
  • Surface treatment connection 2: Untreated
  • Shape: Straight
  • Model/Design: 1-piece
  • Reduction: Yes
  • Eccentric: No
  • System-bound: Yes
  • Dimension connection 1: Other
  • Outer pipe diameter connection 1: 50 mm
  • Connection 1: Press sleeve
  • Dimension connection 2: Other
  • Outer pipe diameter connection 2: 40 mm
  • Connection 2: Press sleeve
  • Material seal: EPDM (Ethylene propylene rubber)
  • With internal stop edge: Yes

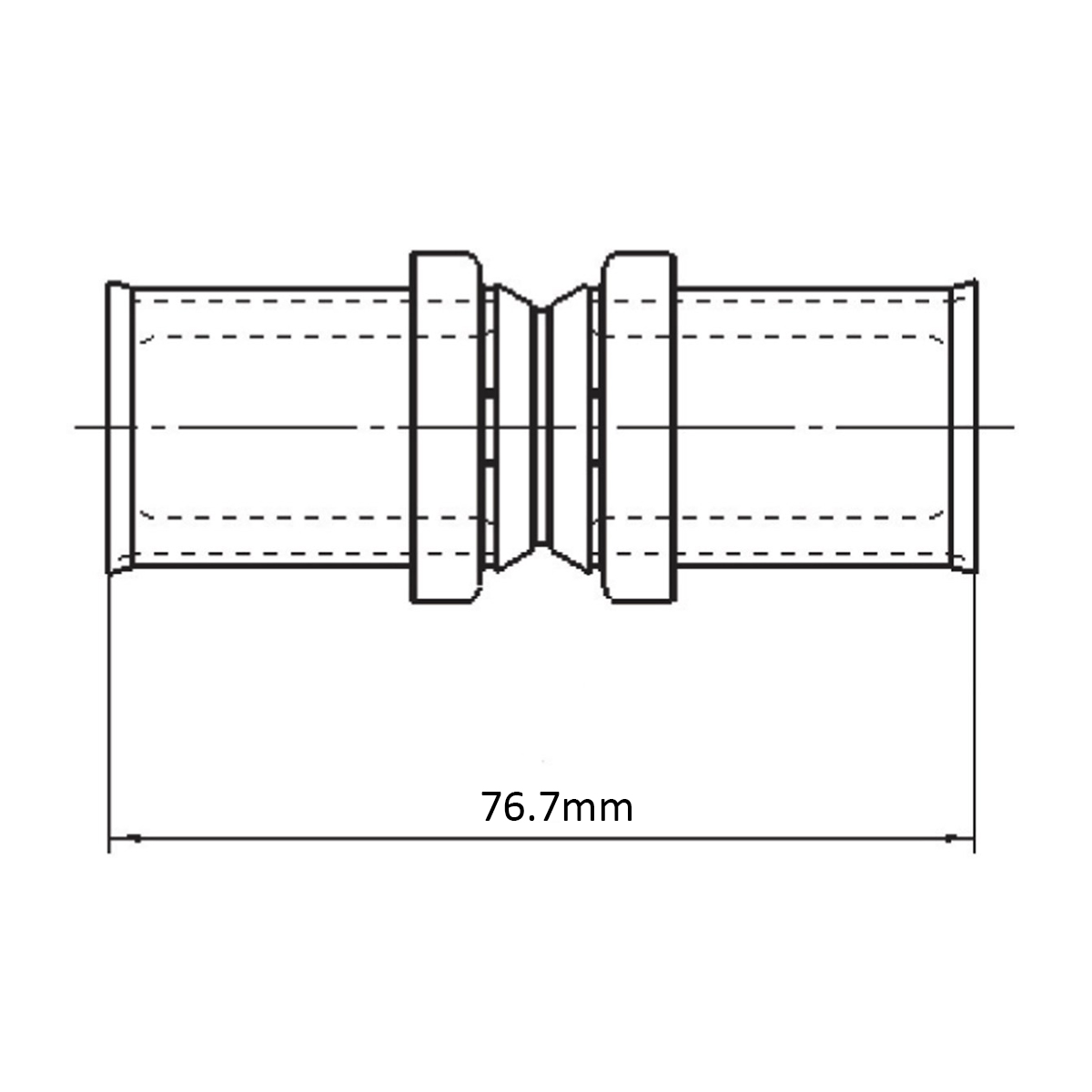

  • Length: 76.7 mm
  • Media temperature (continuous): 0 - 70 °C
  • Max. working pressure at 20°C (PN): 10 bar
  • With gaskets: No
  • With protective cap/plug: No
  • With drain valve: No
  • With air vent/bleeder: No
  • FM-marked: No
  • LPCB-marked: No
  • ULC-marked: No
  • UL-marked: No
