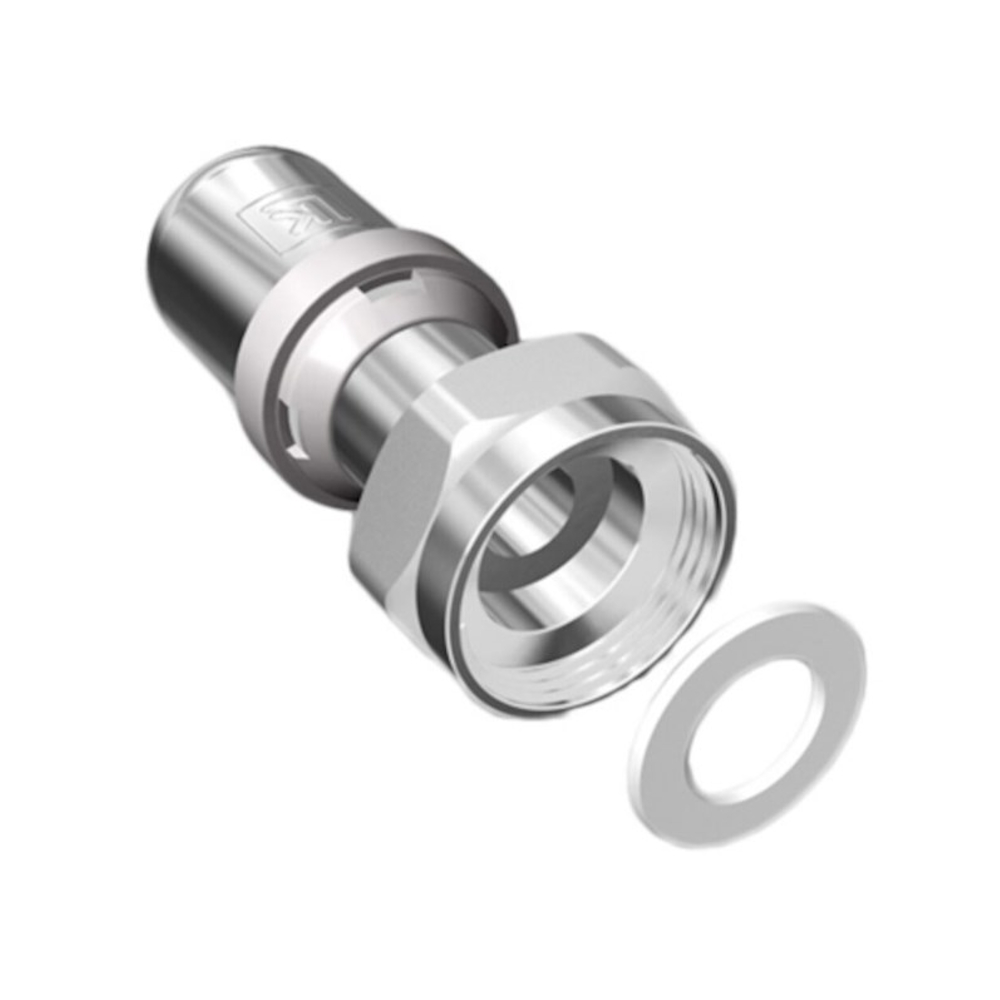

LK PressPex Straight Coupling With Floating Nut A50xG50

Description

Press coupling for joining LK PAL and LK PE-X Universal pipes. For flat sealing. Teflon gasket included. Parts of this range in dimensions AX16 16x2.0mm and A32 32x3.0mm can also be used for PEM pipes.

Specifications

• Dimension: A50xG50
• Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
• Function: Press joint tap water/heating/cooling
• Design: Sleeve x internal union nut
• Color: Nickel
• Surface treatment: Nickel-plated
• Material: AZH brass
• Material connection 1: Brass
• Material quality connection 1: Dezincification resistant brass (DZR)
• Surface protection connection 1: Untreated
• Surface treatment connection 1: Untreated
• Material connection 2: Brass
• Material quality connection 2: Dezincification resistant brass (DZR)
• Surface protection connection 2: Untreated
• Surface treatment connection 2: Untreated
• Shape: Straight
• Model/Design: 1-piece
• Reduction: No
• Eccentric: No
• System-bound: Yes
• Dimension connection 1: Conn. 50 (2")
• Connection 1: Union nut
• Outer pipe diameter connection 2: 50 mm
• Connection 2: Press sleeve
• Press profile connection 2: TH
• Material seal: EPDM (ethylene propylene rubber)
• With internal stop edge: Yes
• Media temperature (continuous): 0 - 70 °C
• Max. working pressure at 20°C (PN): 10 bar
• With gaskets: Yes
• With protective cap/plug: No
• With drain valve: No
• With air vent/bleeder: No
• FM-marked: No
• LPCB-marked: No
• ULC-marked: No
• UL-marked: No

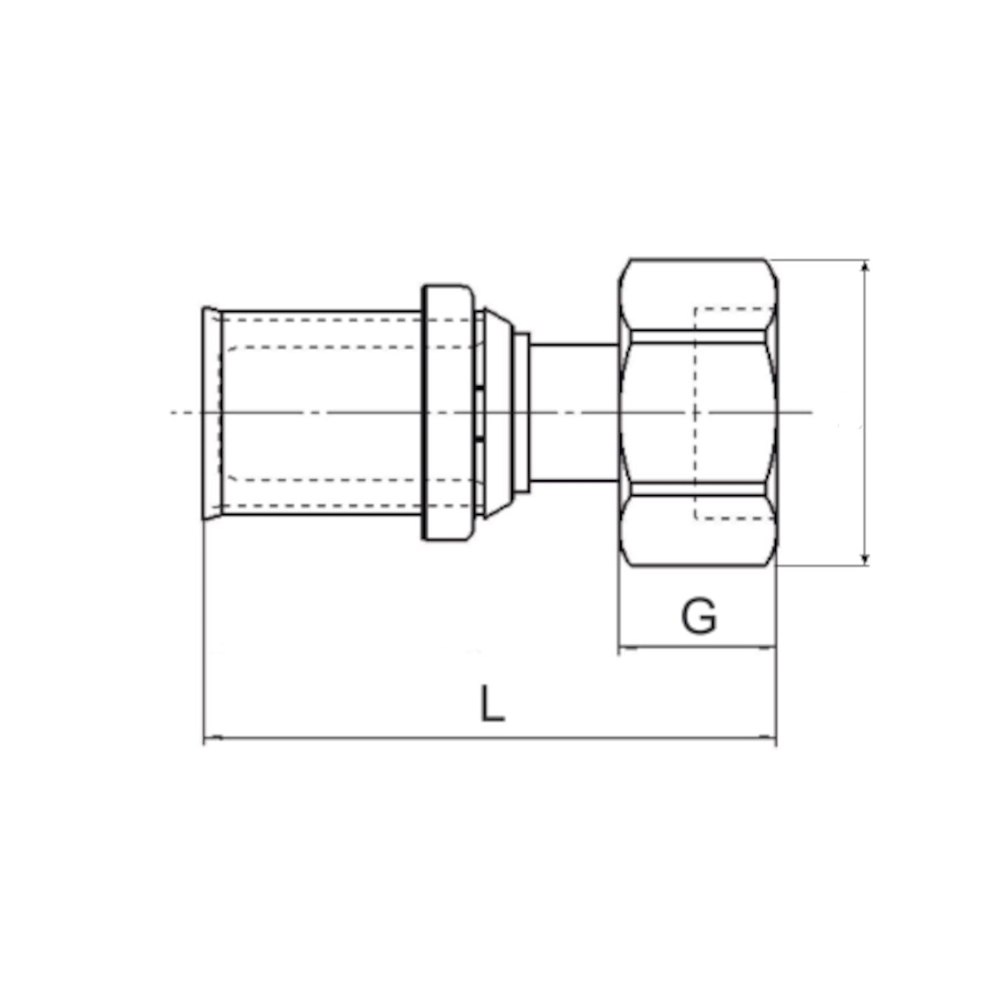

• Measure: G-9.5mm, L-74mm
