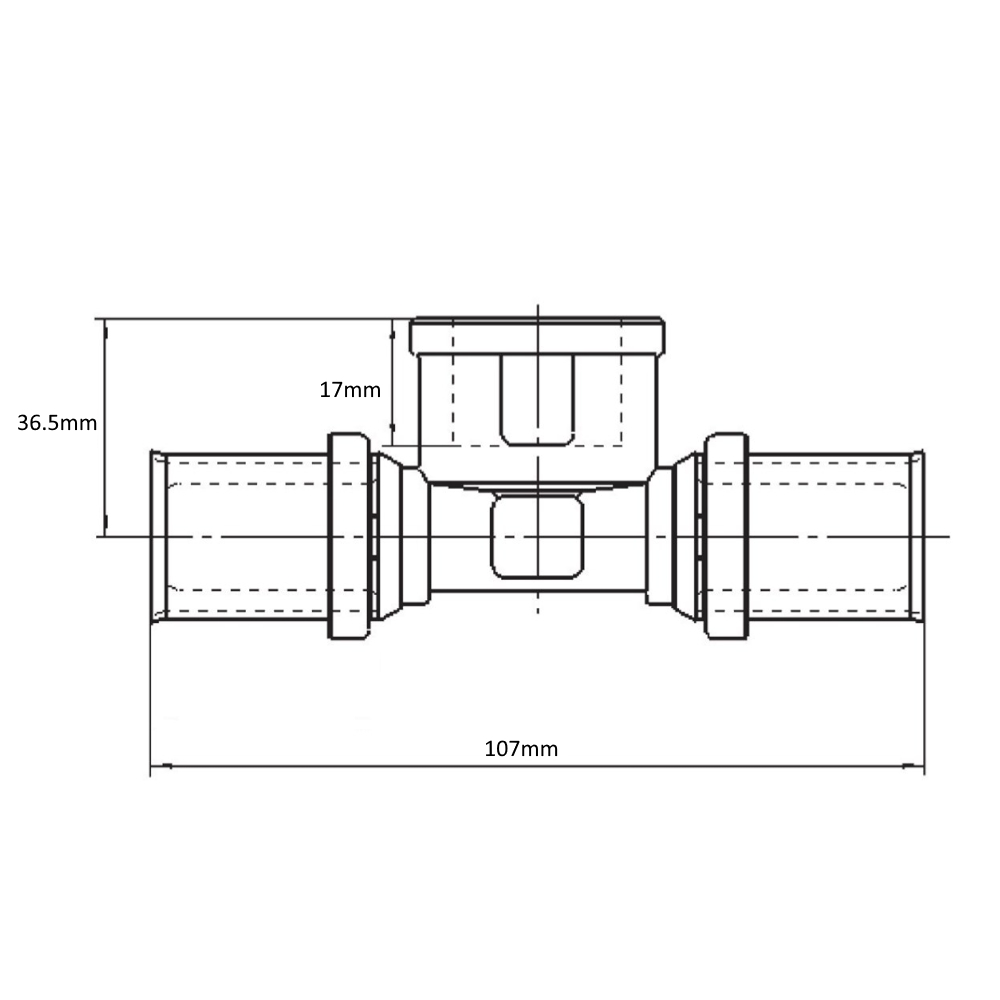

LK PressPex T-Coupling Internal Thread With Branch A40xG25

Description

Press coupling for joining LK PAL and LK PE-X Universal pipes. Parts of this range in dimensions AX16 16x2.0mm and A32 32x3.0mm can also be used for PEM pipes.

Specifications

• Dimension: A40mmxG25
• Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
• Function: press joint tap water/heating/cooling
• Design: 2 sockets x internal thread
• Color: brass
• Material: AZH brass
• Standard: press tool LK
• Other info: with leak indication unpressed
• Material connection 1: Brass
• Material quality connection 1: Dezincification resistant brass (DZR)
• Surface protection connection 1: Untreated
• Surface treatment connection 1: Untreated
• Material connection 2: Brass
• Material quality connection 2: Dezincification resistant brass (DZR)
• Surface protection connection 2: Untreated
• Surface treatment connection 2: Untreated
• Material connection 3: Brass
• Material quality connection 3: Dezincification resistant brass (DZR)
• Surface protection connection 3: Untreated
• Surface treatment connection 3: Untreated
• Model/Version: T-piece
• Curved branch: No
• Reduction: No
• Multi-part: No
• System-bound: Yes
• Outer pipe diameter connection 1: 40 mm
• Connection 1: Press sleeve
• Dimension connection 2: Conn. 25 (1")
• Connection 2: Internal thread G, cylindrical (ISO 228-1)
• Outer pipe diameter connection 3: 40 mm
• Connection 3: Press sleeve
• Material seal: EPDM (ethylene propylene rubber)
• Max. working pressure at 20°C (PN): 10 bar
• With gaskets: No
• With drain valve: No
• With air vent/bleeder: No
• With internal stop edge: Yes
• With protective cap/plug: No
• FM-marked: No
• LPCB-marked: No
• ULC-marked: No
• UL-marked: No
