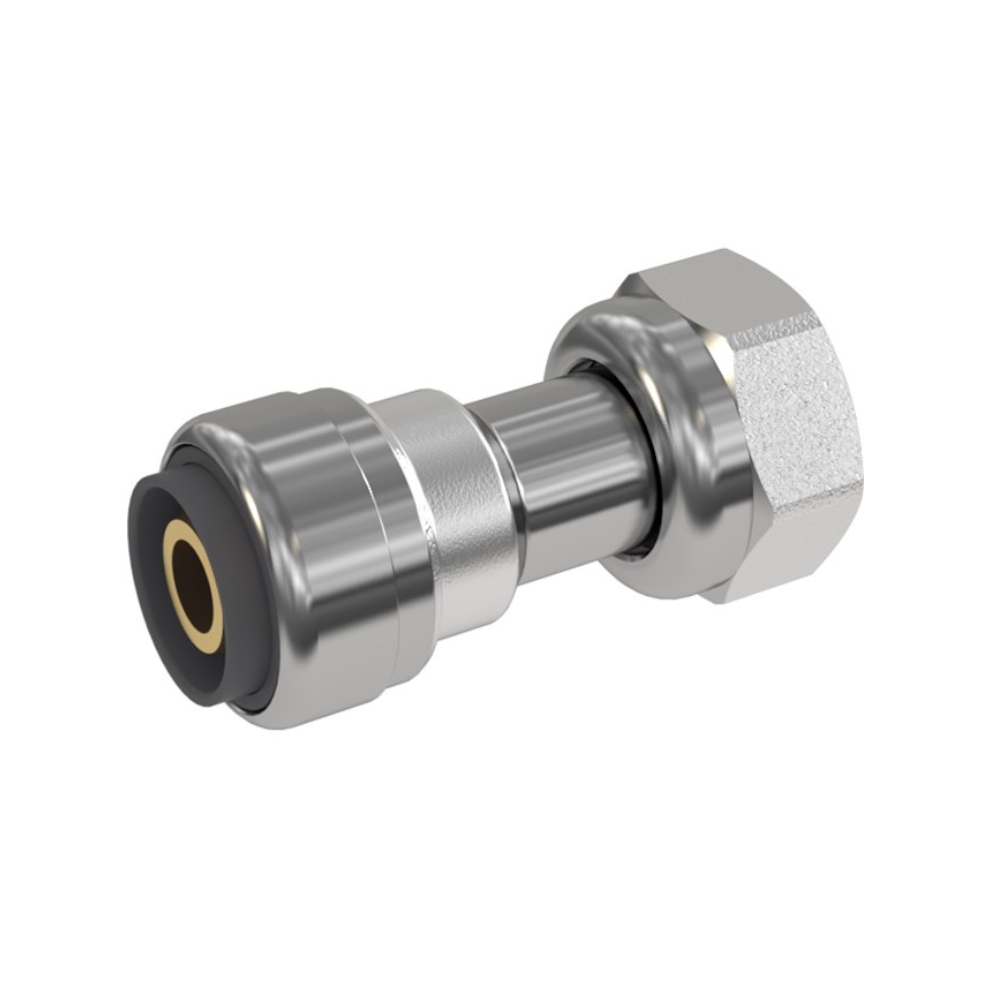

LK PushFit AX Connection Coupling AX16xG15

PushFit coupling with free-running nut intended for LK PE-X and PAL Universal pipes against external, EuroCone on e.g. LK Manifold UNI.

LK PushFit AX Connection Coupling AX16xG15

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

LK PushFit AX Connection Coupling AX16xG15

PushFit coupling with free-running nut intended for LK PE-X and PAL Universal pipes against external, EuroCone on e.g. LK Manifold UNI.

Description

PushFit coupling with free-running nut intended for LK PE-X and PAL Universal pipes against external. EuroCone on e.g. LK Manifold UNI. Supplied complete with mounted support sleeve.

Specifications

  • Dimension: AX16xG15
  • Pressure/Flow/Temp: PN10, max temp +70°C (+95°C)
  • Design: Sleeve x internal union nut
  • Color: Nickel
  • Surface treatment: Nickel-plated
  • Material: Brass CW625N
  • Material connection 1: Brass
  • Material quality connection 1: Dezincification resistant brass (DZR)
  • Surface protection connection 1: Nickel-plated
  • Material connection 2: Brass
  • Material quality connection 2: Dezincification resistant brass (DZR)
  • Surface protection connection 2: Nickel-plated
  • Shape: Straight
  • Model/Design: 1-piece
  • Reduction: No
  • Eccentric: No
  • System-bound: Yes
  • Dimension connection 1: Conn. 15 (1/2")
  • Connection 1: Internal thread G, cylindrical (ISO 228-1)
  • External pipe diameter connection 2: 16 mm
  • Connection 2: Push-in (Push-in)
  • Sealing material: EPDM (ethylene propylene rubber)
  • With internal stop edge: Yes
  • Media temperature (continuous): 0 - 70 °C
  • Max. operating pressure at 20°C (PN): 10 bar
  • With gaskets: No
  • With protective cap/plug: No
  • With drain valve: No
  • With air vent/bleeder: No
  • FM-marked: No
  • LPCB-marked: No
  • ULC-marked: No
  • UL-marked: No
