Main Switch 4Poles 80A 380-415V IP20 Hager

Description

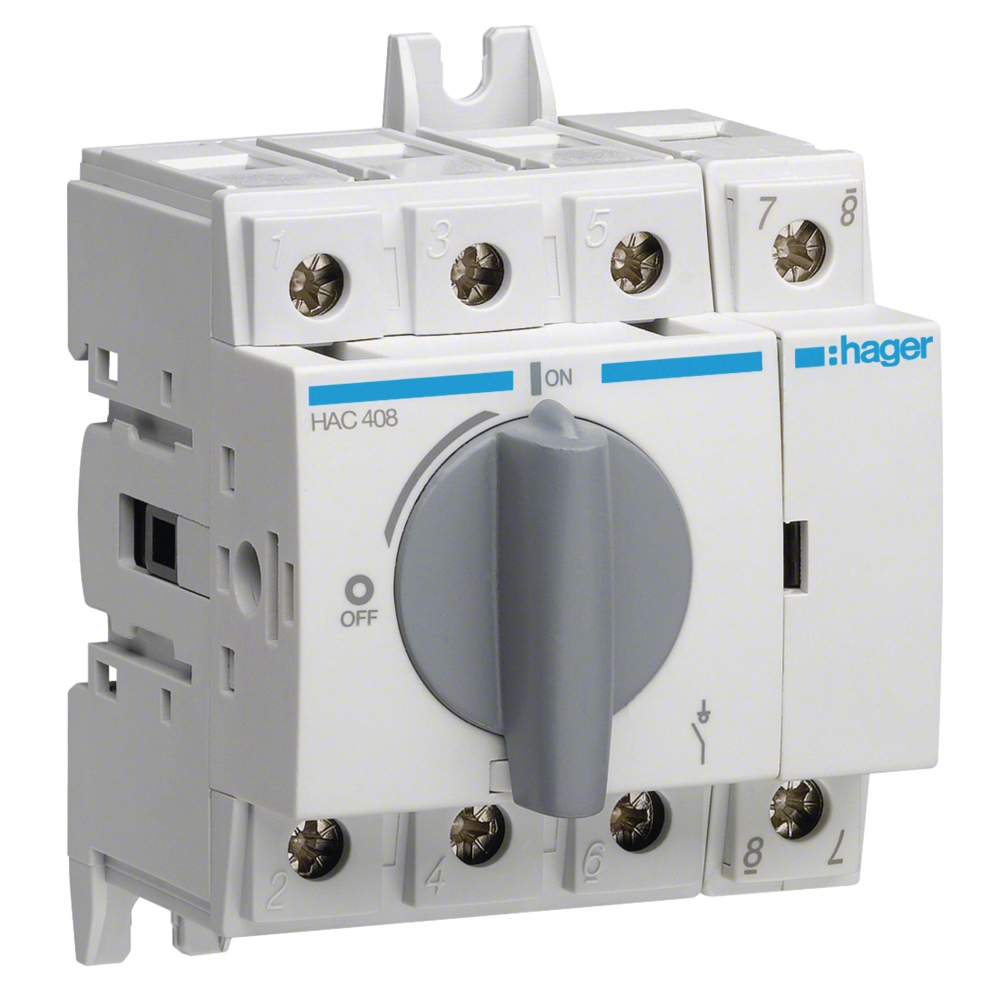

Main switch HAC408 4-pole 80A, AC-23 In four modules wide. Can be mounted in Hagers standard enclosures and cabinets. With the rotary function you can easily turn off the power supply before working in, for example, the electrical control panel. Load switch with independent manual operation and visible switching point. The switches are mounted on DIN rail.

Specifications

• Rated current: 80 A
• Accepted rated operational current AC21 (category A): 80 A
• Accepted rated operational current AC21 (category B): 80 A
• Accepted rated operational current AC22 (category B): 80 A
• Accepted rated operational current AC23 (category A): 80 A
• Accepted rated operational current AC23 (category B): 80 A
• Rated making capacity Icm under 415 V AC (IEC 60947-3): 2.10 kA
• Rated short-time withstand current Icw 1 s (IEC 60947): 1.50 kA
• Rated short-time withstand current Icw (IEC 60947): 1.50 kA
• Rated conditional short-circuit current ICC with gl-gG fuses: 50 kA

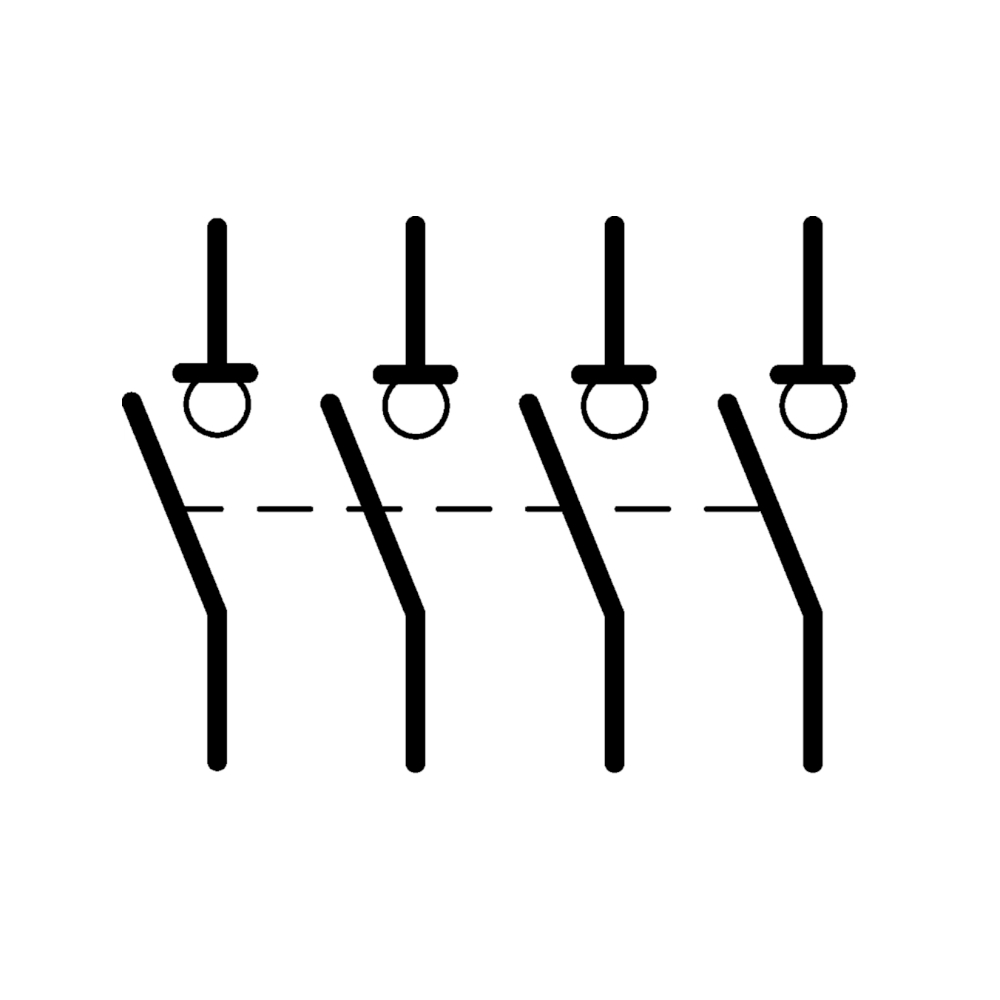

• Number of poles: 4P
• Control/operating element: Short rotary handle
• Area solid conductor: 35 mm²
• Connection type: Screw terminal
• Rated insulation voltage Ui: 800 V
• Rated impulse withstand voltage Uimp: 8000 V
• Rated operational voltage Ue: 380 - 415 V
• Power loss per pole at In: 2.40 W
• Total power loss at nominal rated current: 9.60 W
• Rated power for 1P under 400 V AC (AC1): 52,000 W
• Rated power for 1P under 400 V AC (AC23): 36,000 W
• Rated tightening torque: 3.5 - 3.85 Nm
• Motor operation selectable: No
• Number of change-over auxiliary contacts: 0
• Number of opening auxiliary contacts: 0
• Number of closing auxiliary contacts: 0
• Operating temperature: -20 - 70 °C
• Lockable: Yes
• Protection class (IP): IP20
• Frequency: 50 Hz
• Is a reversing switch: No
• Design as emergency stop installation: No
• Design as main switch: Yes
• Design as service/repair switch: Yes
• Design as safety switch: Yes
• Design as compact disconnector: Yes
• Number of modules: 4
